ABB SDCS-CON-3A: High-Performance Controller for Rolling Mills & Cranes

Product Overview

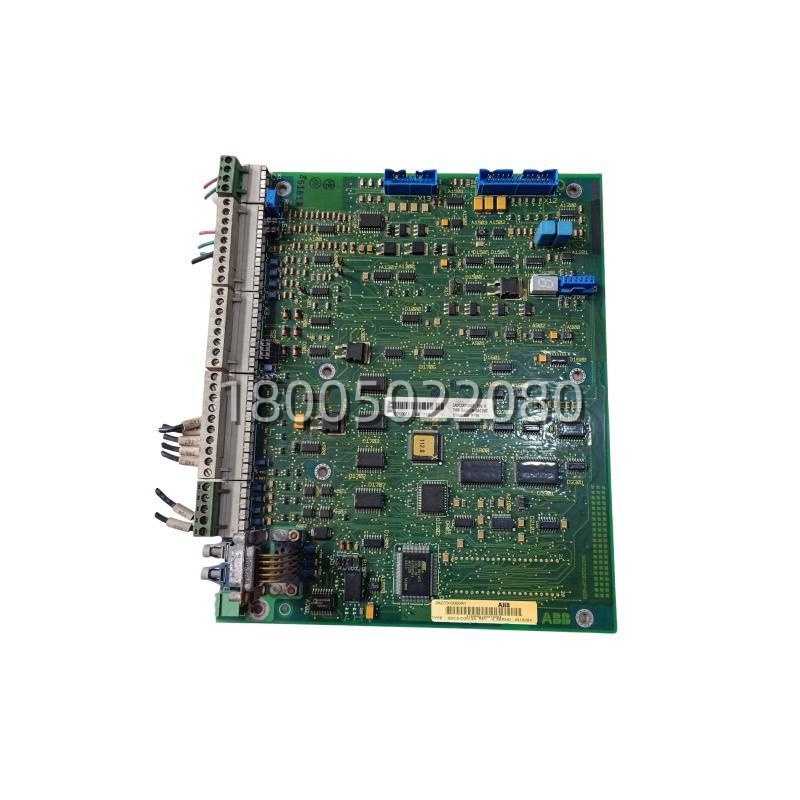

The ABB SDCS-CON-3A is a critical digital control board that serves as the central processing unit (CPU) for ABB’s DCS 400, DCS 500, and DCS 600 series of industrial DC drive systems. Often categorized under “DC Governor Accessories” due to its role in regulating motor speed and torque, this module acts as the intelligent brain of the drive, executing complex control algorithms for precise motor management. The SDCS-CON-3A features a high-performance microprocessor that handles real-time tasks such as armature current regulation, speed loop control, and field current control (excitation), ensuring stable operation under dynamic load conditions. It interfaces with external I/O modules and power stacks through a dedicated backplane bus, facilitating seamless integration within the drive chassis. Designed for robustness, the board includes comprehensive fault diagnostics with LED status indicators and supports firmware updates via serial interface, making it a vital component for maintaining and upgrading legacy DC drive installations in heavy industries.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	SDCS-CON-3A
Manufacturer	ABB
Product Type	DC Drive Control Board / CPU Module
Compatible Drive Series	DCS 400, DCS 500, DCS 600
Supply Voltage	24 VDC (typically derived from internal drive bus)
Processor	High-speed Industrial Microprocessor
Communication Interfaces	RS-232, RS-485, Modbus RTU
Digital I/O	Via ribbon cable to external I/O boards
Analog I/O	Speed reference, feedback, and current monitoring
Control Functions	Speed, Torque, Current, Field Weakening
Operating Temperature Range	0 °C to +55 °C
Storage Temperature Range	-25 °C to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Dimensions (Approx.)	250 mm x 200 mm x 20 mm
Weight	Approx. 0.34 kg

Main Features and Advantages

The ABB SDCS-CON-3A delivers high-performance digital control for DC motors, replacing older analog systems with superior accuracy and stability. Its microprocessor-based architecture enables precise regulation of motor speed and torque, with advanced features such as IR compensation and adaptive current limiting to handle demanding load changes smoothly. A key advantage is its comprehensive diagnostic capability; the board features onboard LEDs and supports fault logging, allowing maintenance teams to quickly identify issues like overcurrent, field failure, or communication loss, thereby reducing mean time to repair (MTTR).For system integration, the SDCS-CON-3A offers flexible connectivity through RS-232/RS-485 ports, enabling configuration and monitoring via ABB’s DriveWindow software or integration with higher-level PLC systems using Modbus RTU protocol. The module is designed for easy replacement and upgrade in existing DCS drive chassis, ensuring backward compatibility and extending the service life of critical industrial assets. Its industrial-grade components and design ensure reliable operation in harsh environments typical of metal, mining, and paper applications.
