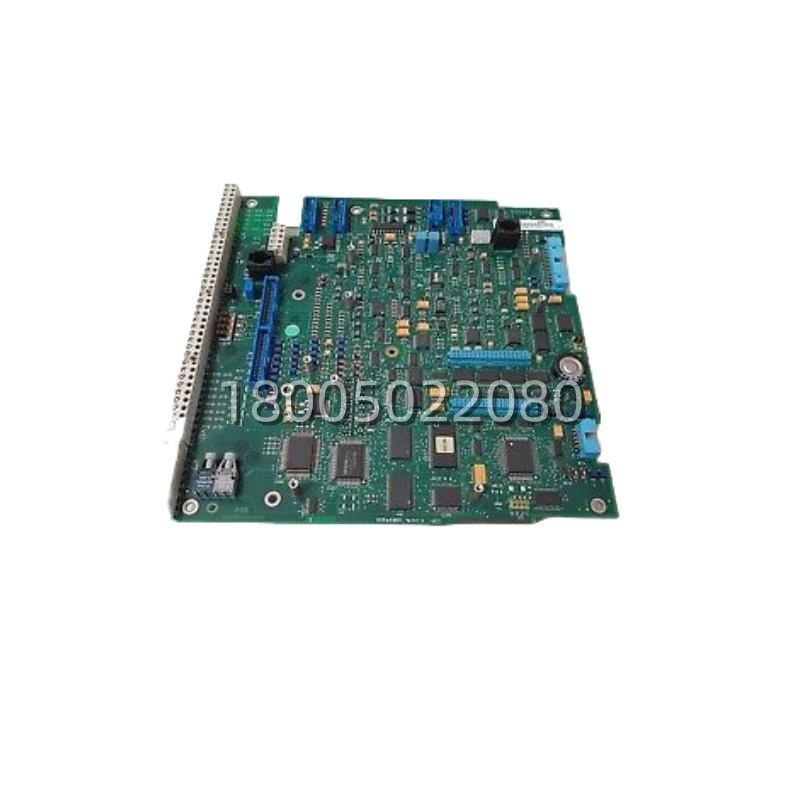

ABB SDCS-CON-2A Control Board Without Software for DCS800 DC Drives

The ABB SDCS-CON-2A (Part Number 3ADT309600R0002) is a core control board hardware component specifically designed for ABB’s SDCS (Direct Current Control System) drive architecture, including the DCS800 DC drive and compatible ACS800 AC drive systems. Unlike standard programmable controller modules that ship ready-to-run with pre-installed firmware and application logic, the ABB SDCS-CON-2A is supplied as a “bare board” or hardware-only unit. It contains the essential physical infrastructure required for a drive controller—such as the industrial-grade microprocessor, system memory (RAM), non-volatile storage (Flash), communication controllers, and power management circuits—but it does not include the operating system, firmware, or user-specific application code. This configuration makes the ABB SDCS-CON-2A an ideal solution for hardware-level repairs where the physical controller board has suffered damage, such as burnt traces, failed chips due to power surges, or age-related component failure, while the software configuration remains intact or backed up.In the industrial automation hierarchy, the ABB SDCS-CON-2A serves as the central processing unit of the drive, responsible for executing motor control algorithms, processing analog and digital I/O signals, generating firing pulses for thyristor bridges, and managing fieldbus communication. Because it is delivered without software, it offers engineers and maintenance teams the flexibility to load the exact drive-specific firmware and parameter sets required for their particular motor and application setup. This ensures 100% compatibility and performance matching when replacing a faulty controller board. The board is designed to slot directly into the standard ABB drive rack, connecting via the backplane for power and data exchange with other drive modules, such as the power interface boards and I/O extension cards.By providing a pure hardware platform, the ABB SDCS-CON-2A allows for precise control system restoration without the risk of software version mismatches that can occur with pre-programmed spares. It is a critical spare part for industries relying on ABB drive systems, ensuring that hardware failures do not lead to prolonged downtime, provided the maintenance staff follows the correct firmware restoration procedures using ABB’s drive commissioning tools.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Technical Specifications

Product Model	SDCS-CON-2A
Manufacturer	ABB
Part Number	3ADT309600R0002
Product Type	Drive Control Board (Without Software)
System Compatibility	ABB DCS800 DC Drives, ACS800 Series
Core Processor	Industrial Microprocessor (Specific architecture varies by firmware)
Memory	RAM and Flash Memory Chips Present (Capacity defined by loaded firmware)
Communication Protocols	PROFIBUS DP, Modbus RTU, CANopen (via firmware/adapter)
Power Supply	Via Backplane / Rack Connection (Typically 24V DC derived)
Dimensions (H x W x D)	Approx. 248 mm x 83 mm x 25 mm (9.76″ x 3.26″ x 0.98″)
Weight	Approx. 0.41 kg (0.9 lbs)
Mounting Type	Rack Insert / Guide Rail
Operating Temperature	-25°C to +70°C
Status Indicators	LEDs for Power, Fault, and Communication Status

Main Features and Advantages

The primary advantage of the ABB SDCS-CON-2A lies in its role as a dedicated hardware replacement platform. In industrial maintenance, scenarios often arise where a controller’s physical circuitry fails while the software logic remains perfectly valid. The ABB SDCS-CON-2A addresses this precisely by offering a virgin hardware canvas. This eliminates the common issue of receiving a replacement controller only to find its pre-installed firmware version is incompatible with the existing drive parameters or mechanical setup, which often forces a time-consuming re-commissioning process. With this board, the user retains full control over the software environment.Hardware integrity is a standout feature of the ABB SDCS-CON-2A. The board utilizes a high-density, multi-layer printed circuit board (PCB) design that integrates robust industrial-grade components selected for high shock resistance, thermal stability, and long-term reliability in electromagnetically noisy environments like steel mills, paper machines, and mining operations. The inclusion of dedicated communication controller chips ensures that once the appropriate firmware is loaded, the board can handle high-speed data exchange for real-time control and diagnostics without burdening the main processor.Flexibility in communication is another key benefit. Although the ABB SDCS-CON-2A itself is a hardware base, its design supports various fieldbus protocols depending on the inserted firmware and any optional communication interface modules plugged into the drive rack. This allows the drive system to integrate seamlessly into larger DCS or PLC networks using industry-standard protocols like PROFIBUS DP, Modbus RTU, or CANopen. This adaptability ensures the hardware remains relevant across different plant-wide automation strategies.Furthermore, the ABB SDCS-CON-2A features built-in hardware diagnostic capabilities accessible via front-panel LEDs. These indicators provide immediate visual feedback on the power status, communication link health, and fault conditions, which is invaluable during the installation phase when verifying that the backplane connections are secure and the board is receiving power correctly. The modular nature of the board simplifies inventory management for spare parts departments, as a single stock-keeping unit (SKU) of the ABB SDCS-CON-2A can serve any DCS800 drive in the facility, regardless of the specific application, as the differentiation occurs entirely at the software level.
