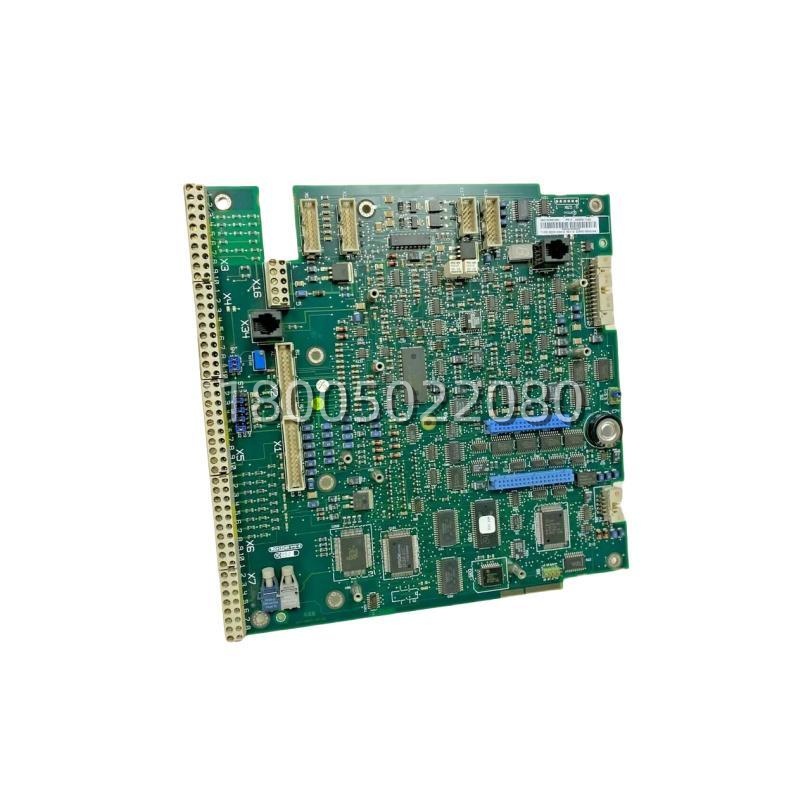

ABB SDCS-CON-2 3ADT309600R1 DCS Drive Control Board

The ABB SDCS-CON-2 3ADT309600R1 is a high-performance main control board specifically engineered as the central processing unit for ABB’s DCS500 and DCS600 series DC drive systems. Serving as the “brain” of the converter, this critical component executes complex control algorithms, manages input/output signals, and coordinates communication between the power section, the operator panel, and higher-level automation systems. Built around a robust microprocessor architecture, the ABB SDCS-CON-2 3ADT309600R1 ensures precise regulation of motor speed, torque, and position, which is fundamental for maintaining product quality and process stability in heavy industrial applications.In the automation hierarchy, the ABB SDCS-CON-2 3ADT309600R1 occupies the drive-level control layer, interfacing directly with the power interface boards and the internal DC link. It stores the drive firmware in Flash PROM and utilizes static RAM for real-time parameter handling and data logging. Its primary value lies in delivering high dynamic response and control accuracy, often cited at 0.1% or better, depending on the feedback configuration. By processing signals from encoders, tachogenerators, and analog references, the board adjusts the firing angles of thyristors in DC drives to maintain the desired output despite load variations.Furthermore, the ABB SDCS-CON-2 3ADT309600R1 is designed for seamless integration into distributed control architectures. Through its integrated DDCS (Distributed Drives Communication System) channel and RS485 interfaces, it connects effortlessly to ABB operator panels like the CDP 312 or to PLC/DCS networks via fieldbus adapters. This connectivity allows for centralized monitoring, parameter setting, and diagnostics, reducing the need for physical intervention at the drive site. For plant engineers and maintenance teams, the reliability and processing power of the ABB SDCS-CON-2 3ADT309600R1 translate to reduced downtime and simplified troubleshooting, making it an indispensable asset in continuous process industries.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Main Features and Advantages

The ABB SDCS-CON-2 3ADT309600R1 stands out in the industrial drive market due to its exceptional processing power and specialized feature set tailored for DC drive applications. One of its core strengths is the high-speed execution of control loops. Utilizing an advanced microprocessor, the board performs current, speed, and field control calculations with high resolution, ensuring that the connected motor responds instantly to reference changes. This is particularly vital in applications such as paper machine sections or rolling mill stands, where minute deviations in speed can lead to product defects or process instability.Another significant advantage is the board’s comprehensive communication capability. The ABB SDCS-CON-2 3ADT309600R1 features a dedicated DDCS optical link interface, which allows for noise-immune, high-speed data exchange with master controllers or operator panels. Additionally, the dual RS485 channels provide flexibility for connecting to field exciter controls or local HMI devices. This multi-protocol support ensures that the drive can fit into virtually any existing automation architecture without requiring extensive gateway hardware.Reliability and maintenance efficiency are also key competitive edges. The ABB SDCS-CON-2 3ADT309600R1 includes a built-in watchdog timer that automatically resets the processor in the unlikely event of a software hang, preventing uncontrolled drive behavior. Diagnostic LEDs on the faceplate provide immediate visual status of operating conditions, communication activity, and fault states, drastically cutting down the time required for root cause analysis during troubleshooting. Furthermore, because it is a plug-in module, replacement is straightforward; technicians simply need to transfer the parameter backup to the new board to restore full operation, minimizing Mean Time To Repair (MTTR).Lastly, the ABB SDCS-CON-2 3ADT309600R1 supports flexible configuration for various motor types and feedback devices. Whether the application requires armature voltage feedback, tachogenerator, or high-resolution encoder feedback, the board’s firmware adapts to optimize performance. This versatility extends the lifecycle of the drive system, allowing the same hardware platform to serve different mechanical loads as plant requirements evolve.

Application Field

The ABB SDCS-CON-2 3ADT309600R1 is predominantly utilized in heavy industrial sectors where DC drives are preferred for their high starting torque, simple four-quadrant operation, and robustness. In the pulp and paper industry, the board is a critical component in sectional drives for paper machines. Here, the ABB SDCS-CON-2 3ADT309600R1 ensures precise speed matching between different sections (such as the press section, dryer section, and reel) to maintain paper tension and prevent web breakage, directly impacting production throughput and quality.In the metals industry, particularly in steel and aluminum rolling mills, the ABB SDCS-CON-2 3ADT309600R1 controls the massive DC motors that drive the rollers. The requirement for extreme torque control and rapid reversal capability makes this control board ideal, as it can handle the regenerative braking energy and complex load profiles typical of metal forming processes. Similarly, in mining operations, the board is found in conveyor belt drives and crusher motors, where reliability under dusty, vibrating conditions is paramount.Other notable application areas include the rubber and plastics industry for extruder drives, where consistent screw speed is necessary for uniform product thickness, and in marine propulsion systems that utilize DC motors for their maneuverability. The ABB SDCS-CON-2 3ADT309600R1 is also frequently employed in crane and hoist systems within ports and heavy assembly plants, leveraging its ability to perform smooth acceleration and deceleration with heavy loads. Essentially, any application involving a DC motor that demands high precision, programmability, and network integration is a suitable environment for the ABB SDCS-CON-2 3ADT309600R1.
