Description

Application Scenarios

In a distributed control node for a water pumping station’s local control cabinet, an operator needs to see status (Run/Stop/Fault), manually start/stop the pump, select Auto/Manual mode, and view a key parameter like discharge pressure. A traditional panel would require at least six separate components: a start button, a stop button, a selector switch, three indicator lamps, and a display meter, each needing individual wiring back to the PLC. This consumes space, creates a complex wiring harness, and increases potential failure points. The ABB SAFT151CPD control display board consolidates all these functions into one cohesive unit. Mounted on the cabinet door, it provides a clean, professional interface. Its integrated pushbuttons and selector switch connect via a single, multi-conductor cable to a terminal block, and its digital display shows the pressure value received from the PLC. This integration, centered on the SAFT151CPD, reduces wiring by over 70% for these functions, speeds up commissioning, provides a more robust and serviceable operator station, and presents critical information and control in a single, logical location.

Parameter

Main Parameters	Value/Description

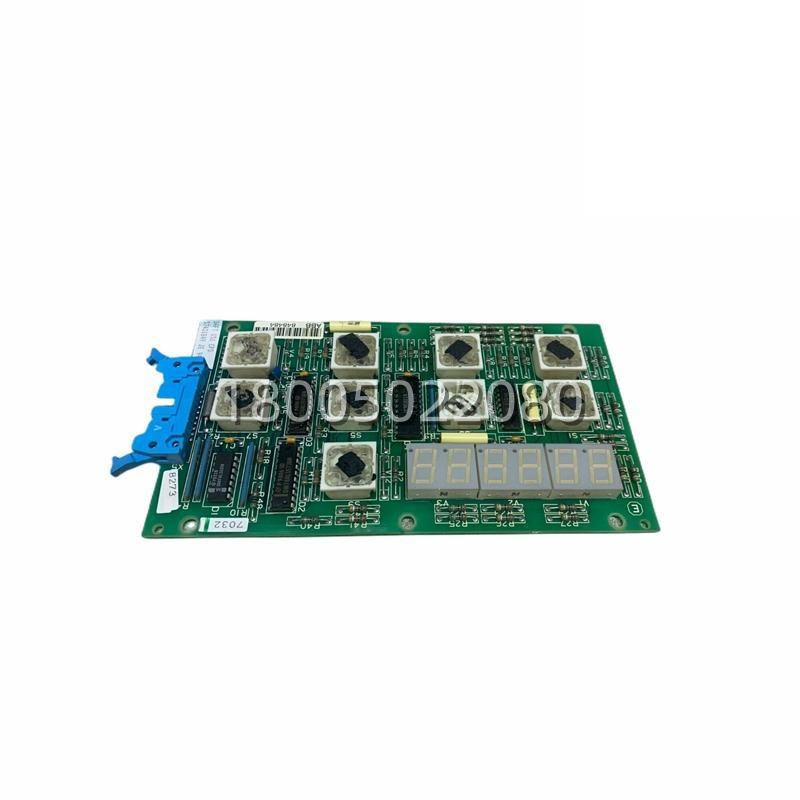

Product Model	SAFT151CPD
Manufacturer	ABB
Product Category	Integrated Control and Display Board / Operator Interface
Compatible Series	ABB SAFT 151 Modular Control System
Display	Digital display (e.g., 4 or 5-digit, 7-segment LED) for showing process values or status codes
Control Elements	Integrated pushbuttons (e.g., Start, Stop, Reset) and a selector switch (e.g., Auto/Manual/Off)
Indication	Integrated multi-color LEDs (e.g., for Power, Run, Fault, Auto/Manual status)
Input Voltage	24V DC (typical for control circuits)
Communication Interface	Simple parallel I/O via terminal connections, or optional serial interface (e.g., for parameter display)
Connection	Pluggable terminal block connector for simplified wiring
Mounting	DIN Rail mounting (35mm, TS35) or direct panel mounting options
Front Protection	IP65 or higher rating for dust and water jet protection (Suitable for harsh industrial environments)
Customization	Often features customizable legends for buttons and labels

Technical Principles and Innovative Values

Innovation Point 1: High-Density Functional Integration: The ABB SAFT151CPD represents a paradigm shift from discrete components to integrated functional modules. Its core innovation is the combination of electromechanical controls (buttons, switches), solid-state indicators (LEDs), and electronic display technology onto a single, standardized board. This high-density integration dramatically reduces the physical footprint on the panel door, simplifies the bill of materials, and ensures perfect alignment and a consistent, professional aesthetic that is difficult to achieve with individually mounted components.
