Description

Application Scenarios:

In a critical mine ventilation system, the main fan driven by an ABB ACS 1000 medium voltage variable speed drive suddenly trips, shutting down airflow. The drive diagnostic points to a “Gate Unit Fault” on one phase leg. The service technician opens the power stack cabinet and identifies a failed ABB SAFT121PAC pulse amplifier board. This board is not a simple relay; it is a high-speed, high-power interface. It takes a delicate, optically isolated command signal (a few mA) from the control system and transforms it into a robust, multi-ampere, precisely shaped current pulse with a specific voltage profile required to turn the massive IGCT on and off with nanosecond precision. Replacing it with a genuine SAFT121PAC is crucial—an incorrect pulse shape or timing could cause uneven switching, leading to destructive thermal stress on the $50,000 IGCT. The replacement restores perfect switching, getting the ventilation—and the mine—back to safe operation, demonstrating its role as the indispensable “voice amplifier” for the drive’s brain.

Parameter:

Main Parameters	Value / Description

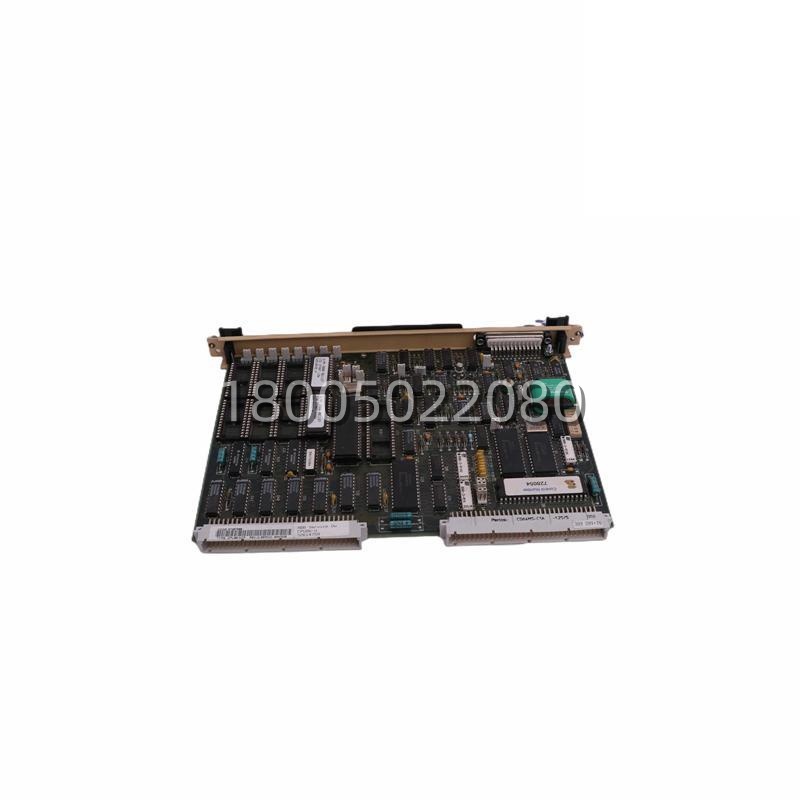

Product Model	ABB SAFT121PAC (SAFT 121 PAC)
Manufacturer	ABB
Product Category	Pulse Amplifier Board / Gate/Base Drive Unit
Primary Function	Amplifies control signals to drive IGCT/IGBT gates/bases
Output Current	High peak current (e.g., tens of Amperes) for fast semiconductor switching
Isolation Voltage	Very high (e.g., >6 kV) to separate low-voltage control from medium-voltage power stage
Input Signal	Low-voltage, optically isolated pulse from the control unit (e.g., DMI board)
Output Pulse Shape	Generates specific voltage/current profiles (turn-on, turn-off, gate boost)
Power Supply	Requires isolated auxiliary DC voltages (e.g., +15V, -5V, +20V)
Mounting	Directly attached to or in close proximity to the power semiconductor module
Compatibility	Used in ABB ACS1000, ACS6000, and other MV drive power stacks
Key Feature	Provides necessary energy and isolation for reliable, high-power switching

Technical Principles and Innovative Values:

Innovation Point 1: Active dv/dt and di/dt Control for EMI Mitigation: Unlike simple amplifiers, the SAFT121PAC incorporates active circuitry that carefully shapes the rising and falling edges of the gate/ base drive pulse. By controlling the dv/dt(rate of voltage change) and di/dt(rate of current change) during switching, it minimizes electromagnetic interference (EMI) and voltage spikes (Ldi/dt) across the semiconductor. This active shaping protects the IGCT/IGBT and reduces stress on snubber circuits and motor insulation, directly contributing to system-level reliability and compliance with EMC standards.
