Description

Application Scenarios:

In a chemical plant’s compressor control system, an ABB Advant Controller began exhibiting erratic behavior: I/O modules would randomly drop offline for a few seconds, and the CPU reported intermittent “Backplane Communication Faults.” The process controls remained functional but were unreliable, creating a serious operational risk. Diagnostics narrowed the issue to the controller rack’s internal infrastructure, not the CPU or individual I/O modules. The suspect component was the ABB SAFT174TBC board. This board is responsible for managing the high-speed data highway (the backplane) that all modules use to talk to each other. A failing component on the SAFT174TBC, perhaps in its clock generation or bus arbitration circuitry, was causing transient glitches in timing, leading to corrupted data packets and module timeouts. Replacing the SAFT174TBC board required a controlled shutdown of the controller (switchover to its redundant pair). The new board was installed, and upon restart, it re-established a stable timing and communication foundation. The random faults disappeared entirely, and rack communication returned to 100% integrity. This incident highlighted that while the processor (SAFT121PAC) is the brain, the SAFT174TBC is the central nervous system—and a fault in either can paralyze the entire controller.

Parameter:

Main Parameters	Value/Description

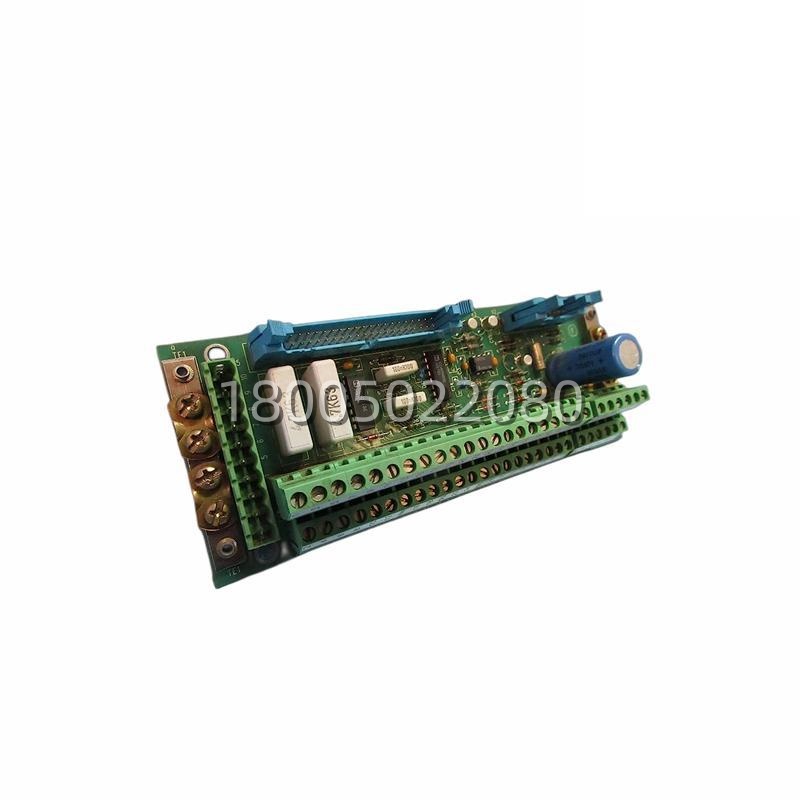

Product Model	ABB SAFT174TBC (SAFT 174 TBC)
Manufacturer	ABB
Product Category	DCS Rack Infrastructure / Timing & Bus Controller Board
Compatible System	ABB Advant Controller Racks (e.g., for AC 410, AC 460) and MOD 300 Systems
Primary Function	Master timing generation, backplane bus arbitration, and module management.
Bus Type Managed	Proprietary high-speed parallel backplane bus (e.g., for Advant Station).
Timing Generation	Provides the master clock signal that synchronizes all operations within the rack.
Module Addressing	Manages the physical/logical addressing of all modules plugged into the rack.
Fault Detection	Monitors backplane communication integrity and can detect bus errors.
Form Factor	A dedicated circuit board that mounts permanently within the rack enclosure, often near the center or end of the backplane.
Connection	Integral part of the rack’s motherboard/backplane assembly.
Status Indicators	Typically includes LEDs for power, system clock activity, and bus fault.
Redundancy Aspect	In highly available systems, timing signals may be sourced from redundant TBC circuits or modules.

Note on Master Timing: The clock signal generated by the SAFT174TBC is critical. It ensures that the CPU’s scan cycle, I/O module sampling, and data transfers are all synchronized, preventing data collisions and ensuring deterministic system behavior.

Note on Bus Arbitration: This board acts as a traffic controller, deciding which module (CPU, I/O card) gets access to the shared backplane at any given moment, preventing data corruption from two modules talking at once.
