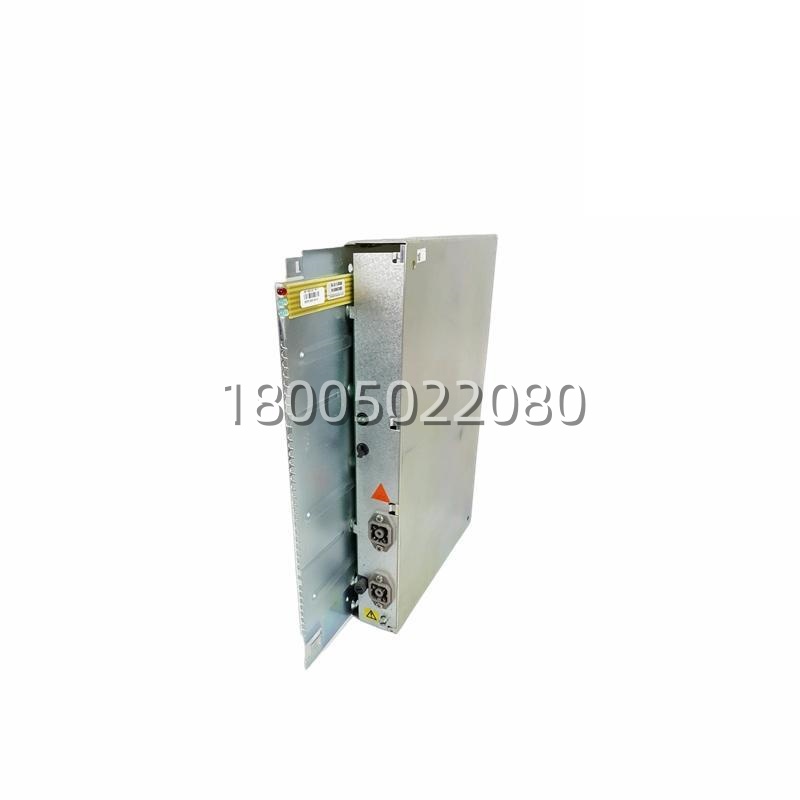

ABB SA610 3BHT300019R1: Robust Power Supply Module for DCS Systems

Description

Application Scenarios:In a large petrochemical refinery’s continuous catalytic reforming unit, a sudden, unexplained shutdown of the Distributed Control System (DCS) control rack occurred, causing a process upset that took 12 hours to recover from, resulting in significant production loss. Investigation revealed the cause: a power supply in a redundant pair had failed months prior, but the system continued on the single remaining unit. A minor voltage sag on the plant’s 120VAC instrument bus, well within normal tolerance, caused the sole operating power supply to drop out momentarily. Without the protection of a functioning redundant partner, this single-point failure cascaded, dropping power to a critical controller rack. The failed unit was an older model. The plant standardized its upgrade on the ABB SA610 3BHT300019R1. Its superior hold-up time and wider input voltage range were specifically designed to ride through such sags. After installing the new SA610​ modules in a properly configured N+1 redundant setup, the system successfully weathered several subsequent grid disturbances without incident. The 3BHT300019R1​ proved its value not just as a power converter, but as a fundamental component of system resilience, ensuring that a common electrical event could not compromise the continuity of a multi-million dollar process.

Parameter:
