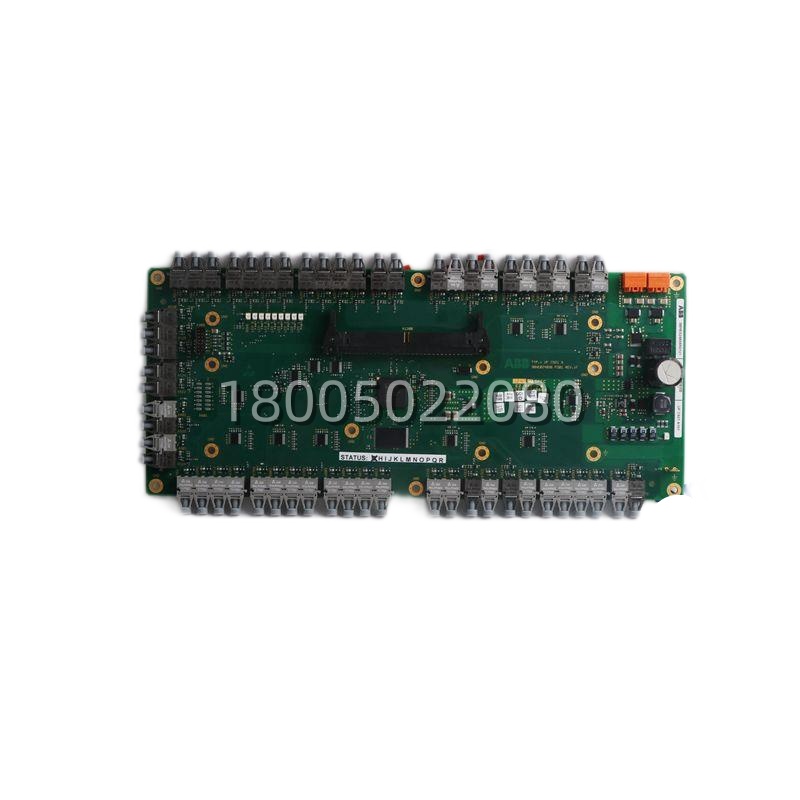

Description
Application Scenarios
Imagine a large-scale natural gas liquefaction (LNG) plant in Qatar, where maintaining precise temperature and pressure parameters during the cooling process is critical for safety and yield. In this harsh desert environment, the main control system relies on distributed I/O racks. The ABB AO810V2 3BSE038415R1 modules are installed in the remote MTU (Modular Termination Unit) racks placed near the processing units. When the central PLC calculates a necessary adjustment to maintain the optimal flow rate, it sends a digital command to the AO810V2. The module instantly converts this data into a precise 4-20mA signal, commanding an actuator to modulate a control valve by exactly 2.5%. This seamless, high-speed communication prevents costly shutdowns and ensures the plant operates at peak efficiency, effectively addressing the pain points of signal degradation over long distances and the need for real-time responsiveness in distributed control systems.
Parameter
| Main Parameters | Value/Description |
|---|---|
| Product Model | AO810V2 |
| Manufacturer | ABB |
| Product Category | Analog Output Module |
| Order Number | 3BSE038415R1 |
| Number of Channels | 8 (Unipolar) |
| Signal Specification | 0..20 mA / 4..20 mA |
| Resolution | 14-bit |
| Output Load | ≤ 500 Ω (L1+ supply), 250 – 850 Ω (L2+ supply) |
| Update Cycle Time | ≤ 2 ms |
| Rise Time | 0.35 ms (at 500 Ω load) |
| Fault Detection | Open circuit detection (>1mA threshold) |
| Isolation | Group-wise isolated from ground |
| Operating Temperature | 0 to +55 °C (+32 to +131 °F) |
| Compatibility | S800 I/O System, MTU: TU810, TU812, TU814, TU830, TU833 |
Technical Principles and Innovative Values
- Innovation Point 1: Advanced Open-Circuit Diagnostics. Unlike basic analog modules, the AO810V2 actively monitors the health of each channel. If a field device is disconnected or a wire breaks (detected when current falls below 1mA on an active channel), the module immediately flags a “Channel Error.” This proactive diagnostic capability minimizes troubleshooting time and prevents unexpected process failures.
- Innovation Point 2: Programmable Safe State (OSP). The AO810V2 features an Output State Preset (OSP) function. Engineers can configure the module to automatically drive the outputs to a predetermined safe state (e.g., 0% or 4mA) in the event of a communication failure or CPU fault. This is a critical safety innovation for preventing catastrophic events in chemical or energy applications.
- Innovation Point 3: Precision Signal Integrity. Utilizing a 14-bit resolution architecture and sophisticated filtering algorithms, the AO810V2 ensures that the analog signals transmitted to the field experience minimal noise interference and temperature drift (max 60 ppm/°C). This guarantees that the physical action in the field precisely matches the digital command from the controller, often exceeding the accuracy of competing multi-vendor I/O solutions.
Application Cases and Industry Value
In a major pulp and paper mill’s steam turbine control system, the ABB AO810V2 modules were specified to replace aging analog cards. The previous system suffered from slow response times during load-following operations, causing inefficiencies. After upgrading to the AO810V2, the mill leveraged its fast update cycle (<2ms) and high accuracy to implement more aggressive control strategies. Consequently, the turbine’s ability to respond to grid demand improved by 15%, leading to significant fuel savings. Furthermore, the module’s built-in short-circuit protection safeguarded the I/O rack from damage caused by a faulty valve positioner, saving the plant approximately $50,000 in potential repair costs and unplanned downtime.
