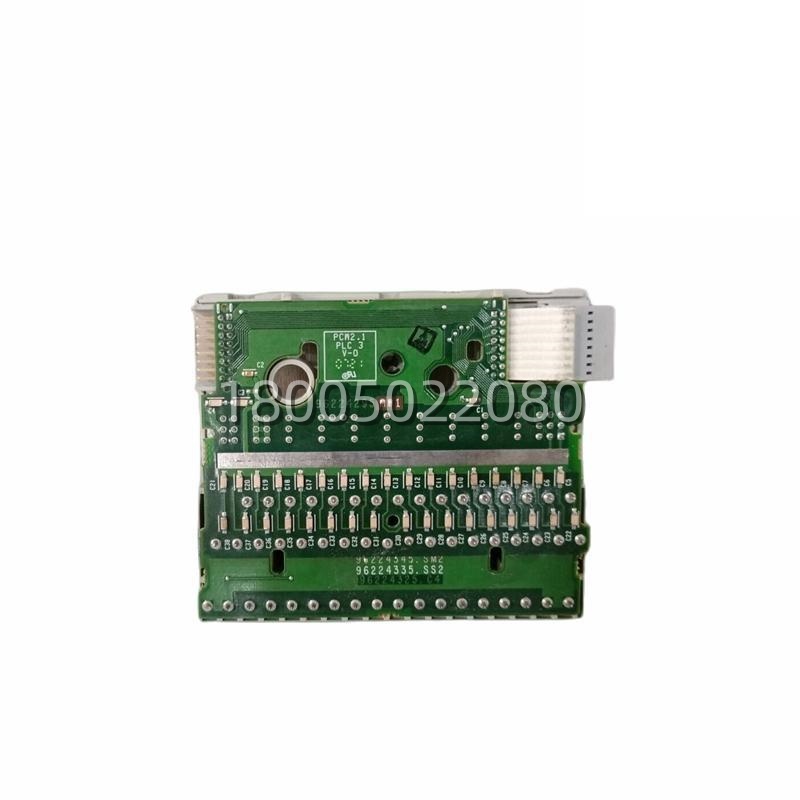

ABB S200TB3T Terminal Block: Spring Connection Interface for Digital and Analog I/O

The ABB S200-TB3T / S200TB3T is a high-quality, spring-clamp terminal block manufactured by ABB, designed as a dedicated wiring interface for their S200 series of compact, modular I/O modules. This component serves as the critical junction point where field device wires (from sensors, switches, and actuators) are securely and efficiently connected to the corresponding input or output channel of the PLC or DCS system. It enables fast, tool-less wiring while ensuring a reliable, gas-tight electrical connection.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Application Scenarios

In an automated packaging machine, dozens of photoelectric sensors, proximity switches, and solenoid valves are connected to a compact PLC system. During machine build and commissioning, electricians must connect hundreds of fine-gauge wires quickly and reliably. Using screw terminals for every point is time-consuming and risks loose connections from vibration. The ABB S200-TB3T Terminal Block is pre-attached to an ABB S200 digital input module. The electrician simply strips the wire, inserts it directly into the appropriate spring-clamp opening until it clicks and locks into place. This tool-less operation allows a connection to be made in seconds, drastically reducing cabinet wiring time. More importantly, the constant force of the spring clamp maintains a secure connection that is highly resistant to loosening from the machine’s constant vibration, preventing intermittent faults that are difficult to diagnose. The S200TB3T directly solves the core challenges of installation speed and long-term connection reliability in dynamic industrial environments.

Parameter

Main Parameters	Value/Description
Product Model	ABB S200-TB3T / S200TB3T
Manufacturer	ABB (Asea Brown Boveri)
Product Category	Spring-Clamp Terminal Block / I/O Module Wiring Interface
Compatible I/O System	ABB S200 Series Compact I/O Modules (e.g., digital input, digital output, analog I/O).
Connection Technology	Spring-clamp (Cage Clamp) connection. Allows tool-less or screwdriver-actuated wiring.
Number of Positions	Typically matches the I/O module (e.g., 8, 16 channels). The “TB3T” often denotes a specific block type within the S200 range.
Wire Range	Accepts solid or stranded conductors, typically from 0.08 mm² to 2.5 mm² (AWG 28-12). Ideal for control wiring.
Rated Current/Voltage	Suitable for control circuit ratings, e.g., up to 10A and 300V. Sufficient for sensor and small actuator loads.
Contact Material	Tin-plated copper alloy for excellent conductivity and corrosion resistance.
Clamping Mechanism	High-quality, fatigue-resistant spring provides constant contact force for a gas-tight, cold-weld connection.
Marking	Clear, permanent channel numbering and electrical symbols (e.g., +/- for analog, L+ for digital supply) for error-free wiring.
Mounting	Integrated design that plugs directly onto the mating connector of the S200 I/O module. Often includes a locking lever.
Color Coding	Typically a standard color (like gray) for universal I/O, with optional color variants for specific functions (e.g., yellow for analog).
Primary Use	Terminating field wiring for sensors (24V DC, NAMUR), switches, relay coils, solenoid valves, and analog signals (4-20mA, 0-10V).
