Description
Application Scenarios:In a large pharmaceutical plant’s batch processing facility, the need to integrate a new purification skid’s 150+ I/O points into the existing Advant OCS presented a challenge. The central AC 450 controller’s local I/O capacity was exhausted. The solution was installing a remote cabinet near the new skid, equipped with an ABB S200-IT8 module acting as the intelligent gateway. The S200-IT8 managed all the local S800 I/O modules, processed interlocks locally for faster response, and communicated seamlessly with the main controller over the high-speed Advant Fieldbus (AF 100). This distributed architecture reduced wiring costs by 40%, improved control loop performance, and allowed the new unit to be integrated without any modification to the central control room hardware.
Parameter:
| Main Parameters | Value/Description |
|---|---|

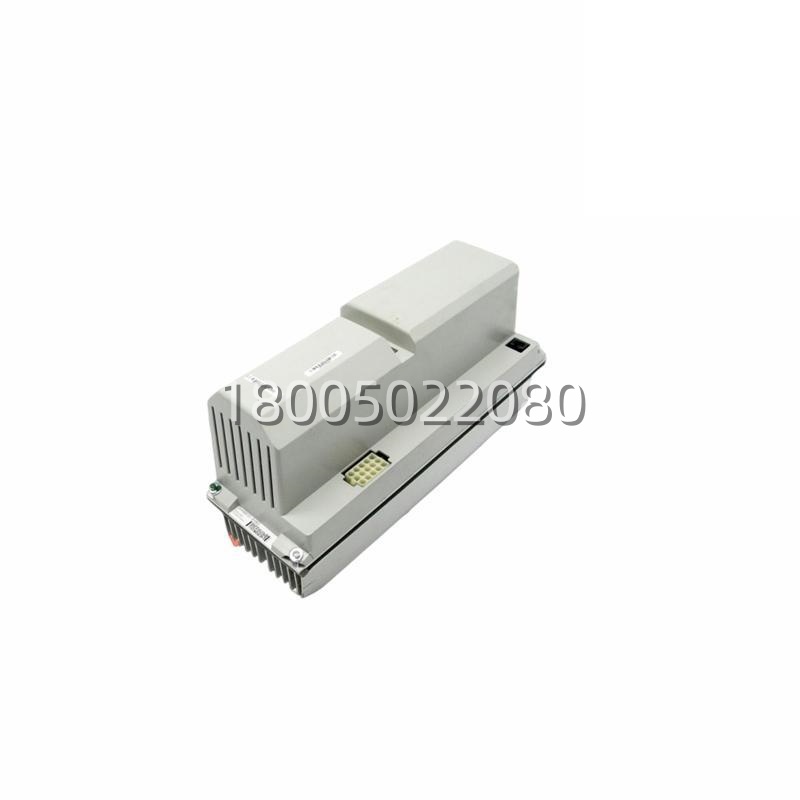

| Product Model | ABB S200-IT8 |
| Manufacturer | ABB (Advant Open Control System) |
| Product Category | Intelligent Terminal / Communication & I/O Processor Module |
| Compatible Controller | Advant Controller AC 410, AC 450 |
| Primary Function | Remote I/O processing, network communication, protocol handling |
| Communication Networks | AF 100 (Advant Fieldbus), CS 31 (for S800 I/O), Serial (RS-232/485) |
| I/O Handling Capacity | High-density; can manage multiple S800 I/O stations with thousands of points. |
| Processing Power | Dedicated microprocessor for handling I/O scans and communication tasks independently. |
| Key Protocols Supported | Modbus RTU/ASCII, other serial protocols via configuration. |
| Form Factor | Module for installation in an Advant Station rack (e.g., S200 series baseplate). |
| Power Supply | +5 VDC from the station’s backplane. |
| Status Indication | LEDs for power, communication status (AF 100, CS 31), and module activity. |
| Configuration Tool | ABB’s Control Builder or Advant Station Engineering tools. |
