Description
Application Scenarios:In a steel mill’s continuous casting line, the main ACS800 drive controlling the withdrawal rolls began exhibiting erratic speed references and sporadic “Board Failure” alarms, causing irregular casting speeds and threatening product quality. Diagnostics pinpointed a failing main control board. Replacing it with a new ABB RMIO-01C main board and restoring the drive’s application program resolved all communication glitches and stabilized control. The drive’s performance returned to its original precision, ensuring consistent billet quality and preventing a potential breakout. The mill’s maintenance team emphasized that the RMIO-01C is the drive’s “central nervous system,” and its reliability is paramount to the entire process line’s stability.
Parameter:
| Main Parameters | Value/Description |
|---|---|

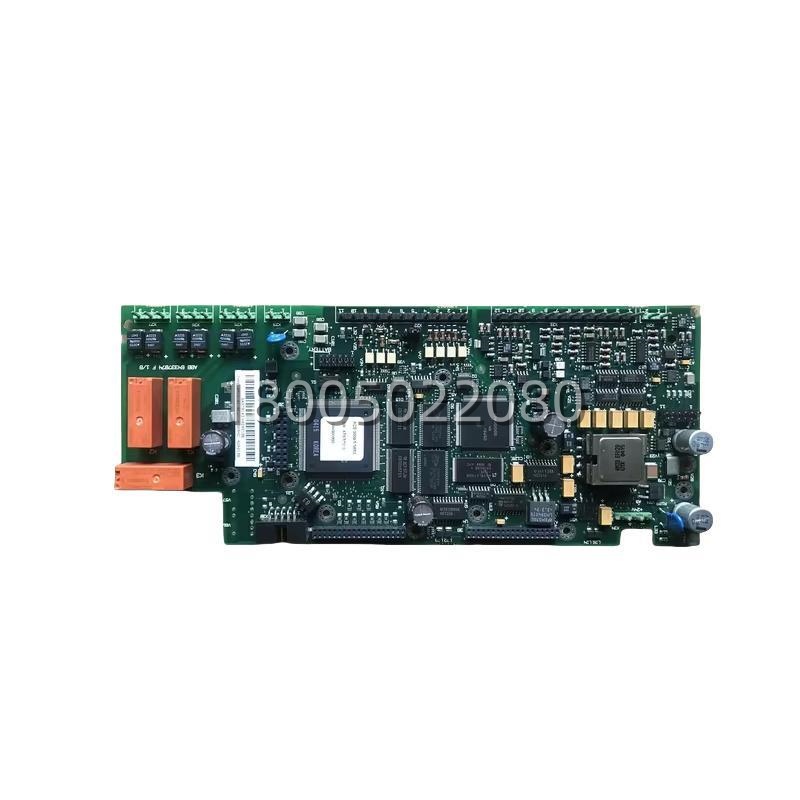

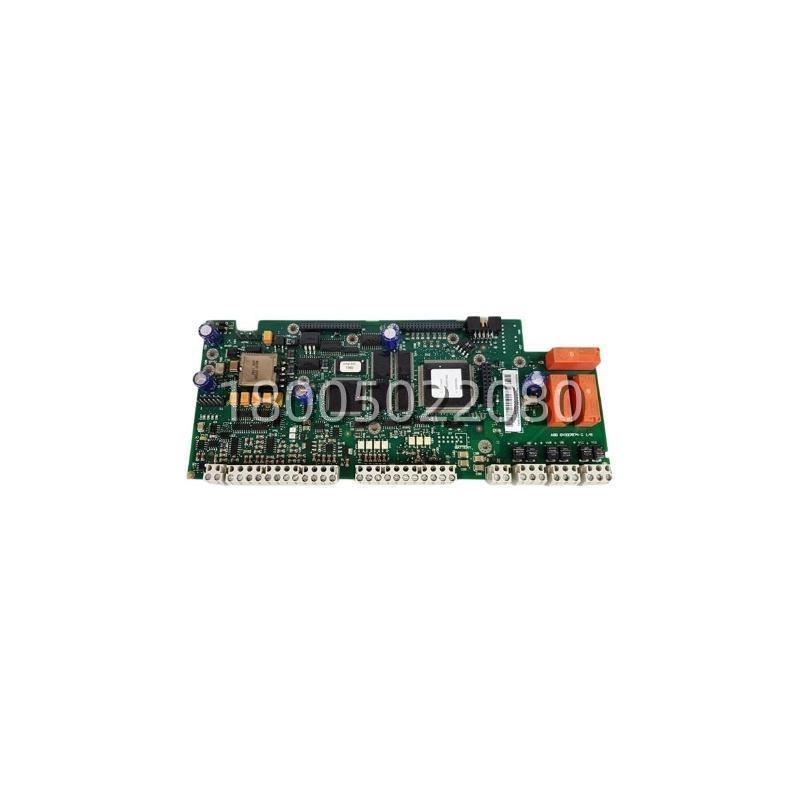

| Product Model | ABB RMIO-01C |
| Manufacturer | ABB Drives |
| Product Category | Main Control & I/O Interface Board |
| Compatible Drive Series | ACS 600, ACS 800 |
| Core Processor | High-performance industrial microprocessor (e.g., 32-bit) |
| Primary Function | System master controller, I/O scanning, application program execution, module coordination |
| Onboard I/O | Typically includes digital inputs (DIs), digital outputs (DOs), analog inputs (AIs), relay outputs |
| Communication Ports | Drive internal bus (for plug-in modules), RS-232/485 (for PC tool, fieldbus adapters) |
| Memory | Flash memory for firmware & application, RAM for runtime data |
| Module Interface | Backplane connector for SDCS-PIN, AINT, DINT, GINT, etc., modules |
| Key Role | Hosts the drive’s firmware and the customer-specific application program |
| Status Indication | Comprehensive LED array for system status, errors, and communication |
| Real-Time Clock | Integrated for time-stamping of events and data logging |
Technical Principles and Innovative Values:
- Innovation Point 1: Modular Backplane Architecture Master Controller. The ABB RMIO-01C is the master of a sophisticated modular backplane system. It doesn’t just process I/O; it actively manages the power-up sequencing, configuration validation, and real-time data exchange with all specialized plug-in cards (like gate drives, encoder interfaces, communication adapters). This turnkey integration ensures all subsystems boot and operate in perfect harmony, simplifying drive engineering and enhancing system reliability.
- Innovation Point 2: Embedded Application-Specific Programming Engine. This board is more than a fixed-logic PLC; it contains a robust, firmware-based programming environment (accessible via ABB’s DriveWindow/Drive composer software). Users can create complex custom control sequences, interlocks, and process logic directly in the drive, eliminating the need for an external PLC for many applications. The RMIO-01C executes this program with deterministic timing, making the drive an intelligent, standalone automation node.
- Innovation Point 3: Advanced System Diagnostics and Health Monitoring. The RMIO-01C board continuously performs system-wide diagnostics. It monitors the health and communication of all connected modules, checks memory integrity, and tracks internal temperatures. It consolidates this data into a clear, hierarchical fault log that distinguishes between critical drive faults, warnings, and operational events. This transforms troubleshooting from a guessing game into a guided procedure, dramatically reducing mean-time-to-repair (MTTR).
