Description

Application Scenarios

In a sprawling automotive paint shop, hundreds of PROFIBUS-DP devices—remote I/O blocks, variable frequency drives for conveyor fans, and sensor clusters—are daisy-chained along a single cable run spanning the entire facility. A single cable fault caused by mechanical damage, electromagnetic interference, or a connector failure in this linear network would halt communication to all downstream devices, potentially stopping the entire painting line and causing massive production losses. By integrating the ABB RLM01 redundancy link modules at strategic points, network engineers transform this vulnerable “line” into a self-healing “ring.” The RLM01 modules continuously monitor the integrity of both cable paths. If a break occurs, the modules automatically and seamlessly reconfigure the network path within milliseconds, isolating the fault and maintaining uninterrupted communication. This ensures that a localized cable issue does not escalate into a plant-wide stoppage, safeguarding production continuity.

Parameter

Main Parameters	Value/Description

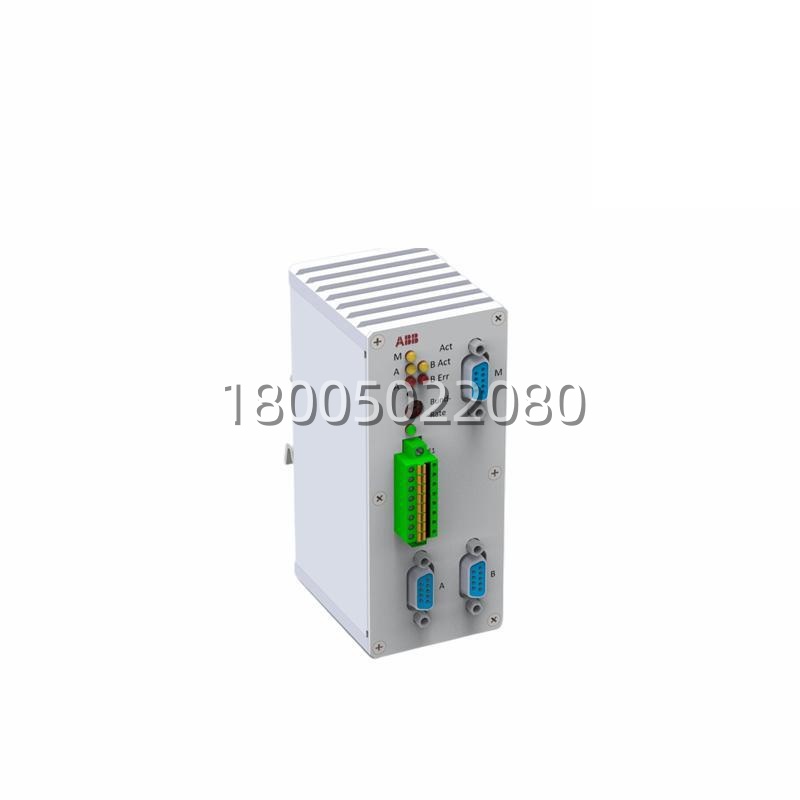

Product Model	RLM01 (3BDZ000398R1)
Manufacturer	ABB
Product Category	PROFIBUS Redundancy / Network Coupling Module
Supported Network	PROFIBUS-DP (DP-V0, DP-V1)
Topology Enabled	Redundant Line, Ring, and Self-Healing Architectures
Data Rate	Automatic detection and adaptation from 9.6 kbps to 12 Mbps
Number of Ports	3 PROFIBUS ports (2 for the redundant lines, 1 for device connection)
Switching Time	< 100 ms typical (Ensures bumpless network failover)
Power Supply	24V DC (Standard industrial voltage)
Isolation	Galvanic isolation between ports (Protects against ground loops)
Diagnostics	LED indicators for power, line status, and data traffic
Mounting	DIN rail mounting (35mm, TS35)
Operating Temperature	0°C to +60°C

Technical Principles and Innovative Values

Innovation Point 1: Active Line Monitoring & Bumpless Switchover: The ABB RLM01 operates as an active, intelligent network component, not a passive coupler. It continuously monitors the signal quality and integrity on both of its main redundant PROFIBUS lines. Its core innovation is the ability to detect a fault (break, short, severe noise) and execute a switch to the healthy line in less than 100 milliseconds. This switchover is “bumpless” for the master controller, preventing timeouts and maintaining cyclic data exchange, which is critical for real-time process control.
Innovation Point 2: Flexible Topology Creation: The module provides unique flexibility in network design. It can be used to create classic redundant line topologies, closed rings, or interconnected rings for large systems. This allows engineers to design network architectures that match the physical layout of the plant and the criticality of different areas, optimizing both cost and reliability. A single RLM01 can also act as a standard repeater/line extender.
Innovation Point 3: Seamless Integration and Transparency: The RLM01 is designed to be transparent to the PROFIBUS master and connected slaves. It does not require complex configuration software or special drivers. Once installed and connected, it operates automatically based on the physical network state. This plug-and-play functionality greatly simplifies engineering, commissioning, and maintenance compared to software-based redundancy solutions, reducing the risk of configuration errors.
