Description

Application Scenarios

In a large HVAC system for a commercial high-rise, multiple 400kW chilled water pumps are controlled by variable frequency drives (VFDs) to match cooling demand, saving significant energy. The precise and reliable switching of the drive’s IGBTs is paramount; any fault can cause a pump to trip, leading to loss of building cooling. The ABB RINT-6621C Inverter Driver Board is the key component that ensures this reliability. Installed within the ACS800 drive cabinet, it receives control signals from the drive’s main processor, amplifies them, and delivers perfectly timed gate drive signals to each IGBT in the three-phase bridge. Its integrated monitoring circuits constantly check for faults like short circuits, overcurrent, and undervoltage. If an anomaly is detected, the RINT-6621C can shut down the IGBTs in microseconds, protecting the expensive power stage and motor. Its robust performance directly addresses the critical need for uninterrupted, efficient motor control in 24/7 continuous operation, preventing costly downtime and equipment damage.

Parameter

Main Parameters	Value/Description

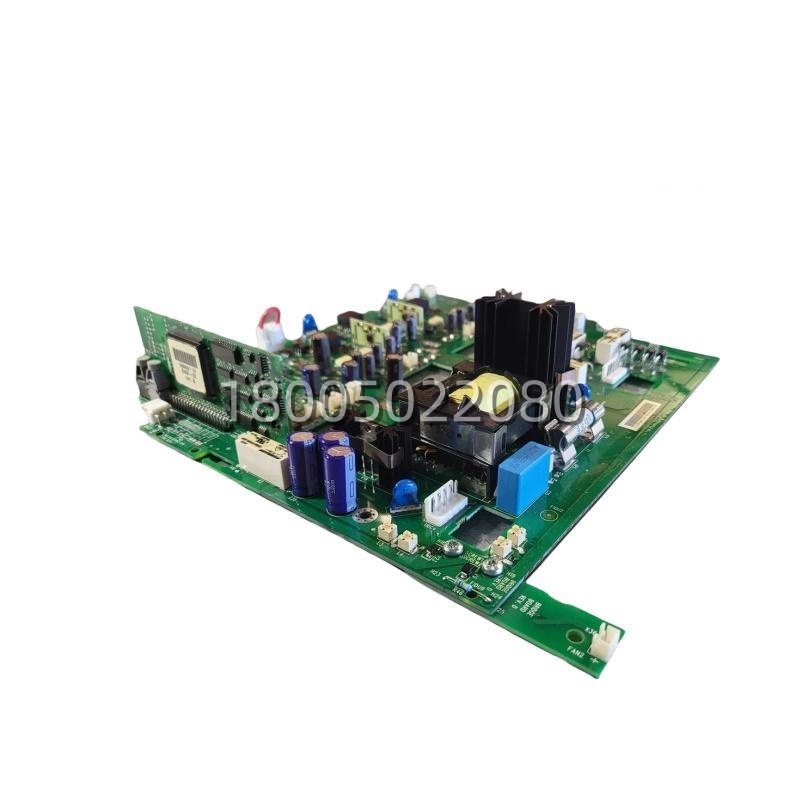

Product Model	ABB RINT-6621C
Manufacturer	ABB (Asea Brown Boveri)
Product Category	Inverter Driver Board / Gate Drive Board / Power Stage Interface
Compatible Drive Series	ABB ACS800 Medium Voltage / High Power Drives and other compatible AC drive platforms.
Primary Function	Generates and amplifies PWM signals; provides gate drive, isolation, and protection for IGBT power modules.
Output Channels	Typically 6 channels (for a 3-phase IGBT bridge: 3 high-side, 3 low-side drivers).
Isolation Rating	High-voltage isolation (e.g., 2500V AC or higher) between the low-voltage control side and the high-voltage power stage.
Gate Drive Voltage	Provides the required positive and negative gate voltages (e.g., +15V/-8V) to reliably switch IGBTs on and off.
Protection Features	Integrated monitoring for: DESAT (Desaturation/Overcurrent), UVLO (Undervoltage Lockout), Short-Circuit, and Overtemperature.
Communication Interface	Connects to the drive’s main control board via fiber optic cables or high-noise-immunity differential signaling for critical signals.
Diagnostic Indicators	Status LEDs for power, fault conditions, and channel activity.
Power Supply Input	Requires isolated, low-voltage DC supplies (e.g., +24V, +5V) typically derived from the drive’s internal power supply.
Mounting	Installed inside the drive unit, often directly connected to or in close proximity to the IGBT modules via a connector or bus bar.

Technical Principles and Innovative Values

Innovation Point 1: Advanced, Isolated Gate Drive TechnologyThe ABB RINT-6621C employs high-speed, reinforced galvanic isolation for each gate drive channel. This is typically achieved via coreless transformers or integrated isolator ICs. This isolation is critical for safety and performance, as it allows the low-voltage control circuitry (referenced to ground) to safely drive the high-side IGBTs, which are floating at the high DC bus potential (hundreds or thousands of volts). This design ensures signal integrity and protects the sensitive control electronics from destructive high-voltage transients.
Innovation Point 2: Intelligent, Sub-Microsecond ProtectionThe board’s most critical innovation is its integrated hardware-level protection. The DESAT (Desaturation) detection circuit monitors the collector-emitter voltage of each IGBT during its on-state. If an overcurrent or short-circuit condition occurs, this voltage rises abnormally. The RINT-6621C detects this within a few hundred nanoseconds and initiates a “soft” or “hard” turn-off, safely shutting down the IGBT before it is destroyed by thermal overload. This protection is faster than any software-based trip, dramatically increasing the drive’s robustness against fault conditions.
Innovation Point 3: Optimized Signal Integrity and Noise ImmunityOperating in a high-dV/dt and high-dI/dt environment, the driver board is engineered for maximum noise immunity. It uses differential signaling or fiber optics for receiving PWM commands from the main controller, making it immune to the electromagnetic interference generated by the IGBTs themselves. Its PCB layout is optimized with short, controlled-impedance gate drive paths and extensive shielding to prevent parasitic turn-on/off of the IGBTs, ensuring clean, jitter-free switching.
Innovation Point 4: Comprehensive Diagnostics and Condition MonitoringBeyond basic fault tripping, the RINT-6621C provides rich diagnostic feedback to the drive’s main processor. It can report the health of its own power supplies, the status of the IGBTs (e.g., via temperature sensors), and the occurrence of protection events. This enables predictive maintenance—the drive can log trends of minor faults or temperature increases, alerting maintenance personnel to potential issues before they cause a catastrophic failure, thus maximizing uptime.
