Description
Application Scenarios:In a mining operation, a critical ACS 600 drive controlling a high-inertia conveyor suddenly faulted and would not restart, displaying a “SUPPLY” alarm. The conveyor stoppage began to bottleneck the entire extraction process. Technicians isolated the fault to the ABB RINT-5514C power board, which had failed to generate the stable +24V and +5V logic supplies due to a degraded capacitor. Swapping in a new RINT-5514C board restored all internal voltages, cleared the fault, and had the conveyor running within an hour. The rapid resolution, enabled by having this key spare on hand, prevented a multi-hour production standstill, demonstrating that this board is not just a component but the very lifeline of the drive’s electronic nervous system.
Parameter:
| Main Parameters | Value/Description |
|---|---|

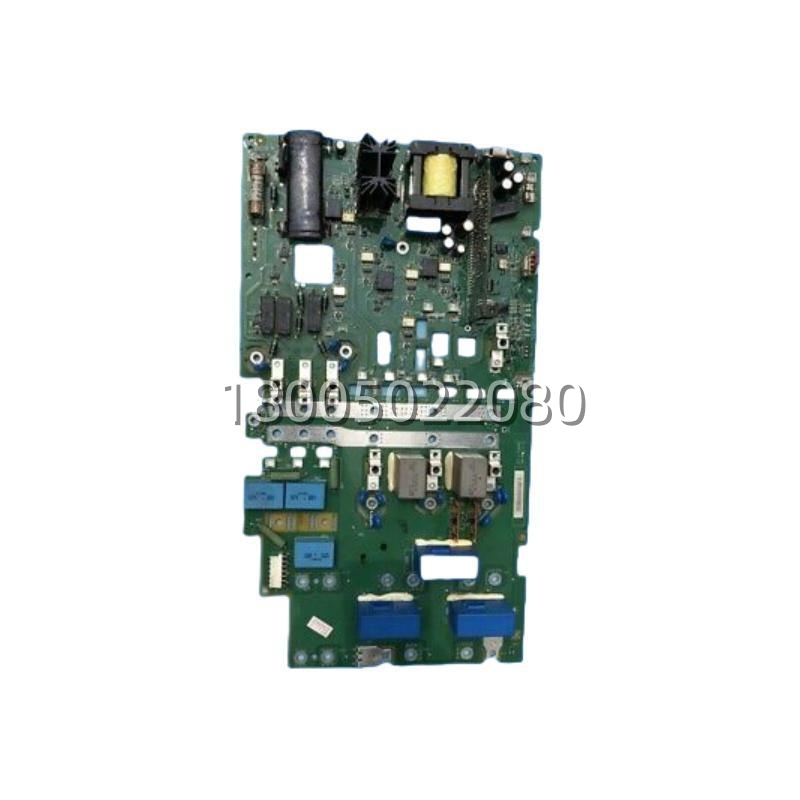

| Product Model | ABB RINT-5514C |
| Manufacturer | ABB Drives |
| Product Category | Internal Drive Power Supply / Power Distribution Board |
| Compatible Drive Series | ACS 500, ACS 600, ACH 500, ACH 600 (Confirm exact fit for your chassis) |
| Input Voltage Source | Derived from the drive’s main DC bus (e.g., ~500-700 VDC) |
| Key Output Voltages | +24 VDC (for control logic, relays), +15 VDC, -15 VDC (for analog circuits, op-amps), +5 VDC (for digital logic, processors) |
| Output Power Rating | Sufficient to power all control cards, gate drives, and fans in the drive chassis (e.g., 50-100W range, typical) |
| Primary Function | DC/DC Conversion, Isolated Voltage Generation, Power Sequencing & Monitoring |
| Protection Features | Overcurrent protection, Overvoltage clamping, Thermal monitoring |
| Status Indicators | LEDs for key output voltages (PWR OK, +24V, +5V) |
| Form Factor | Printed Circuit Board (PCB) for mounting on drive chassis or within a card rack |
| Interface | Connectors for DC bus input, voltage outputs to other boards, and possibly fan power. |
Technical Principles and Innovative Values:
- Innovation Point 1: Multi-Stage, Galvanically Isolated DC/DC Conversion. The ABB RINT-5514C board employs a sophisticated, multi-output switched-mode power supply (SMPS) topology with high-frequency transformers. This provides galvanic isolation between the high-voltage DC bus and the sensitive low-voltage control electronics. This isolation is critical for noise immunity and safety, preventing high-voltage transients from damaging logic circuits. Each output rail is independently regulated for stability.
- Innovation Point 2: Intelligent Power Sequencing & Monitoring. The board incorporates a controlled power-up/power-down sequence. It ensures that core voltages like +5V and +3.3V for microprocessors are stable before enabling other circuits, and vice-versa during shutdown, preventing latch-up or logic errors. It continuously monitors all output rails. If any voltage falls outside a tight tolerance, it can send a signal to the main controller to initiate a safe shutdown, preventing erratic drive behavior or component damage.
- Innovation Point 3: Robust Design for Harsh Drive Environments. Designed to operate inside a drive cabinet, the RINT-5514C uses industrial-grade components rated for high temperatures and continuous operation. Its layout minimizes electromagnetic interference (EMI) both emitted and received. The board is designed to withstand the vibration and electrical noise present in industrial settings, ensuring reliable power delivery—the foundation for overall drive reliability.
Application Cases and Industry Value:A municipal water treatment plant experienced intermittent, unexplained trips on several older ACS 600 drives controlling raw water intake pumps. The faults were nonspecific (“Overcurrent” or “Internal Fault”). After extensive troubleshooting, a pattern emerged: failures occurred during periods of high humidity. Further investigation using thermal imaging revealed overheating components on the RINT-5514C power boards. The degraded boards were causing slight voltage droops on the +15V rail, which the sensitive current sensors and gate drive cards interpreted as signal errors. Replacing all aging RINT-5514C boards in the critical pumps as a preventative measure completely eliminated the intermittent faults. This proactive investment of a few thousand dollars avoided the risk of a simultaneous multiple-pump failure during a storm surge, potentially saving millions in flood damage and ensuring continuous water treatment.
