Description
Application Scenarios:In a remote mining operation, the main conveyor drive, powered by a large medium-voltage inverter, suffered a catastrophic failure, halting ore transport and costing over $100,000 per hour in lost production. The initial diagnosis pointed to a shorted IGBT in the power stack. However, a deeper investigation by a specialist technician revealed the root cause: a failed ABB RINT-5411C Driver Board. This board had a degraded opto-isolator on one phase leg, which caused a slight timing skew in the gate drive signals. This skew led to a condition known as “shoot-through,” where both the upper and lower IGBTs in a phase leg were briefly on simultaneously, creating a dead short across the DC bus and destroying the IGBT module. Replacing the entire power stack without fixing the RINT-5411C would have led to an immediate repeat failure. By diagnosing and replacing the faulty RINT-5411C board first, and then the IGBTs, the drive was restored to full, reliable operation. This case highlighted the RINT-5411C not as a simple accessory, but as a critical safety and control component whose failure can cause disproportionate, expensive damage.
Parameter:
| Main Parameter | Value / Description |
|---|---|

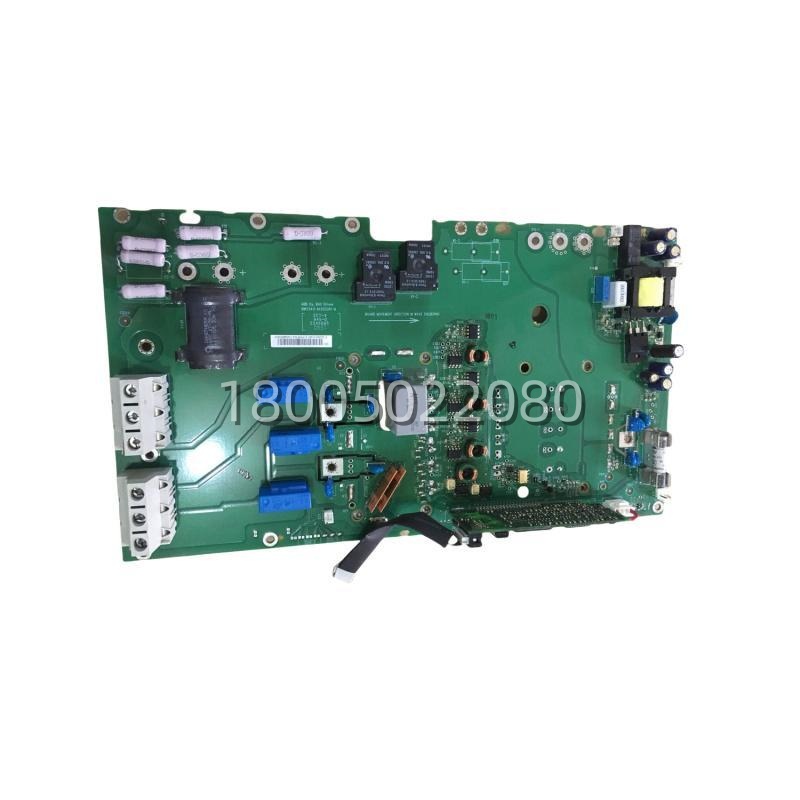

| Product Model | ABB RINT-5411C |
| Manufacturer | ABB |
| Product Category | IGBT Gate Driver Board / Power Interface Board |
| Compatible Drive Series | Designed for specific ABB medium-voltage drive platforms (e.g., ACS 1000) |
| Control Interface | Receives fiber-optic control signals from the drive’s main control unit. |
| Output Channels | Multiple independent channels to drive gates of IGBTs in a phase leg. |
| Isolation | High-voltage reinforced isolation (>4 kV) between control side and power side. |
| Gate Drive Voltage | Provides precise +15V / -X V (e.g., -8 to -10V) to IGBT gates for turn-on/off. |
| Protection Features | Desaturation detection, short-circuit protection, under-voltage lockout (UVLO). |
| Diagnostics | Status feedback via fiber optics (e.g., “Good,” “Desat,” “UVLO”) to main control. |
| Power Supply | Requires isolated DC-DC converter supplies, often from an associated power board. |
Technical Principles and Innovative Values:
- Innovation Point 1: Fiber-Optic Isolated Signal Transmission. The ABB RINT-5411C uses fiber-optic cables to receive switching commands from the main controller. This provides perfect electrical isolation, immune to the extreme electrical noise (dV/dt, common-mode) generated by the high-power IGBTs. This ensures control signals remain pristine and uncorrupted, a fundamental requirement for safe and reliable switching in multi-kilovolt environments. The fiber link also provides a clean, high-speed path for sending diagnostic signals (like fault status) back to the controller.
- Innovation Point 2: Advanced IGBT Protection with Desaturation Detection. A core protective feature is its “Desat” (desaturation) monitoring. The driver continuously monitors the collector-emitter voltage (Vce) of the IGBT it is controlling. Under normal conduction, Vce is low (~2-3V). If a short-circuit occurs, Vce “desaturates” and spikes. The RINT-5411C detects this spike within microseconds and executes a controlled, soft shutdown of the IGBT gate to limit peak fault current, protecting the expensive IGBT module from destructive thermal overstress. This is a critical, active protection feature beyond basic fusing.
- Innovation Point 3: Intelligent Gate Drive with Active Miller Clamp. The board provides optimized gate drive waveforms. It supplies a strong positive voltage (+15V) for fast, low-loss turn-on and a strong negative voltage (e.g., -8V) for reliable, noise-immune turn-off, preventing spurious self-triggering. It also incorporates an “Active Miller Clamp” function. During high dV/dt switching events, capacitive coupling through the IGBT’s Miller capacitance can cause unwanted gate voltage spikes. The clamp circuit actively holds the gate at the negative rail during the off-state, completely eliminating this risk and ensuring stable operation.
