At a 230/69 kV grid substation supplying a major industrial region, the main power transformer is a multi-million-dollar asset whose failure would cause widespread blackouts and economic damage. The transformer must be protected from internal faults (winding failures), through-faults, overheating, and abnormal system conditions. The ABB RET670 1MRK004816-AB is the “brain” of this protection system. It continuously analyzes currents from all transformer windings to perform high-speed, stabilized differential protection, which can isolate an internal fault in under 20 milliseconds. Simultaneously, it monitors oil and winding temperature, manages the on-load tap changer (OLTC), and communicates disturbance records and real-time data to the SCADA system via IEC 61850. During a recent lightning-induced through-fault, the relay’s advanced harmonic restraint logic correctly restrained operation, preventing an unnecessary trip, while its event recorder provided crucial data for post-event analysis by grid engineers. The RET670 directly addresses the core challenges of asset protection, grid stability, and operational intelligence.
Parameter

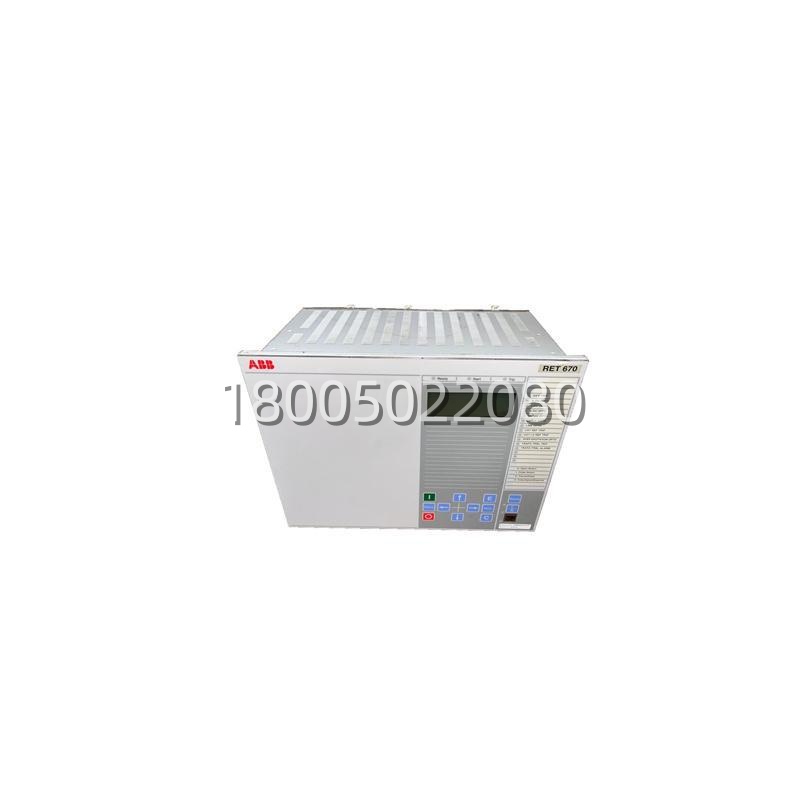

| Main Parameters | Value/Description |
|---|---|
| Product Model | ABB RET670 1MRK004816-AB |
| Manufacturer | ABB (Asea Brown Boveri) |
| Product Category | Transformer Protection IED / Control Relay (Intelligent Electronic Device) |
| Main Protection Functions | – Differential Protection (87T): Primary protection for internal winding faults. – High-Impedance Restricted Earth Fault (64HZ): Sensitive ground fault protection. – Overcurrent (50/51, 50N/51N): Backup protection. – Overexcitation (24), Thermal Overload (49), Pole Discrepancy (62PD). |
| Control & Monitoring | – Circuit breaker control, synchrocheck (25). – On-Load Tap Changer (OLTC) control and supervision. – Extensive Metering (P, Q, V, I, pf, frequency, harmonics). – Temperature monitoring (winding, oil). |
| Communication Protocols | – IEC 61850 (Edition 2) for station bus (GOOSE, MMS). – IEC 60870-5-103/104, DNP3, Modbus (serial/TCP). |
| Hardware I/O | – Analog Inputs: For CTs (1A/5A) and VTs. – Binary Inputs: For status signals (breaker, isolator). – Binary Outputs (Relay Contacts): For trip, close, and alarm commands. |
| HMI Interface | Large graphical LCD display, keypad, and LED indicators for local interaction. |
| Power Supply | Wide-range DC (24-250V) or AC (80-265V) options. |
| Certifications | Compliant with major international standards (IEC 60255, IEEE C37.90). |
Technical Principles and Innovative Values
- Innovation Point 1: Advanced, Stabilized Differential Protection AlgorithmThe core of the ABB RET670 is its transformer differential protection. It employs sophisticated algorithms with harmonic restraint (2nd and 5th) to reliably distinguish between a true internal fault and an inrush current (which contains harmonics) when the transformer is energized. This prevents nuisance tripping during transformer energization, a common challenge, while maintaining ultra-high sensitivity and speed for actual faults. The 1MRK004816-AB variant is optimized for specific transformer configurations (e.g., 3-winding), providing unmatched security and dependability.
- Innovation Point 2: Fully IEC 61850 Native IntegrationThe relay is designed from the ground up for the digital substation. It speaks IEC 61850 natively, supporting both MMS for SCADA communication and high-speed GOOSE messaging for peer-to-peer relay communication (e.g., for interlocking or breaker failure). This eliminates the need for hardwiring between bays for certain signals, reduces wiring costs by up to 70%, enables seamless engineering with SCL files, and provides a future-proof platform for smart grid applications.
- Innovation Point 3: Integrated Condition Monitoring and ControlThe RET670 transcends basic protection by integrating extensive monitoring and control. It can directly interface with temperature sensors (RTDs) to provide thermal overload protection and monitor transformer health. It includes logic for On-Load Tap Changer (OLTC) control, automating voltage regulation. This consolidation of functions—protection, control, monitoring—into one IED reduces panel space, simplifies the overall system architecture, and provides a unified data source for asset management.
- Innovation Point 4: Powerful Disturbance Analysis and Cybersecurity FeaturesThe device includes a high-capacity, high-resolution fault recorder and event logger. It captures not just trip events, but also detailed analog waveforms and sequence of events (SOE) with millisecond accuracy, which is invaluable for post-mortem analysis. Furthermore, modern versions incorporate robust cybersecurity features like role-based access control, password policies, and audit logs, addressing the critical need to protect grid infrastructure from cyber threats.
