Description

Application Scenarios:

Imagine a high-speed rotary printing press where the infeed, printing units, and outfeed must be perfectly synchronized to within microseconds to prevent web tearing or color misregistration. The machine builder uses a central motion controller on a real-time Ethernet Powerlink network. The challenge is integrating the powerful ABB ACS880 main drive motors that pull the paper web. The ABB REPL-02 adapter is the key. Installed in the drive cabinet, it allows the ACS880 drive to act as a fully synchronized slave node on the EPL network. The motion controller sends precise cyclic synchronous position and torque commands over the network, and the REPL-02 ensures they are executed by the drive with deterministic, jitter-free timing. This replaces complex and costly analog or dedicated motion bus wiring, simplifies cabling, and enables centralized configuration and diagnostics, allowing the press to run at higher speeds with flawless registration.

Parameter:

Main Parameters	Value / Description

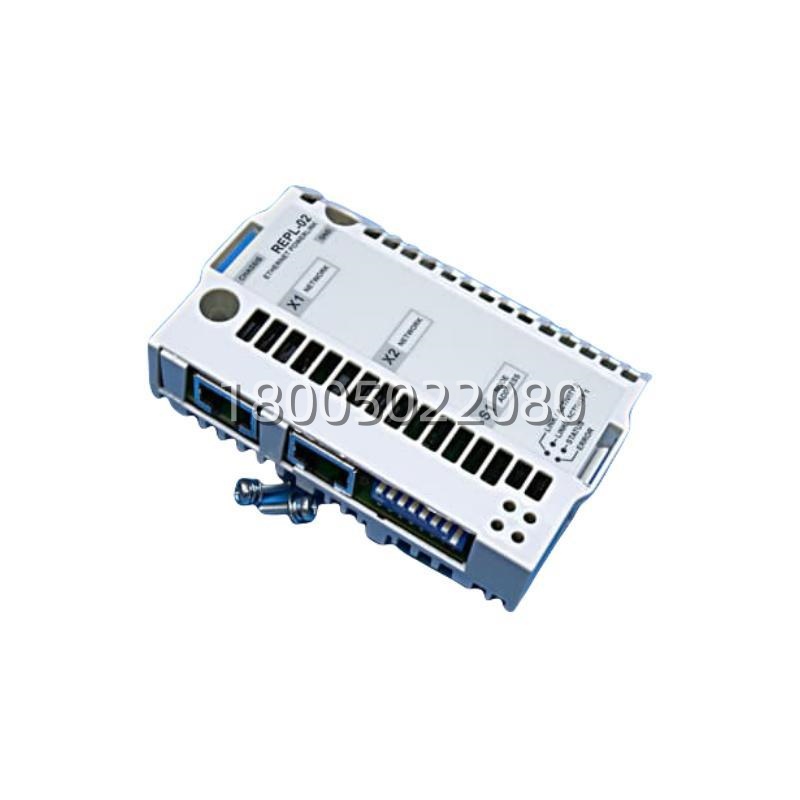

Product Model	ABB REPL-02
Manufacturer	ABB
Product Category	Communication Adapter / Fieldbus Interface Module
Primary Protocol	Ethernet Powerlink (EPL)
Network Role	Configurable as Managing Node (Master) or Controlled Node (Slave)
Data Transfer	Real-time cyclic data (PZD) and acyclic parameter data (PKW)
Physical Interface	2 x RJ45 ports (100BASE-TX) for line topology (IN/OUT)
Sync Accuracy	Sub-microsecond synchronization capability for deterministic control
Compatible Drives	ABB ACS880 cabinet-built drives (via internal connection)
Supply Voltage	24V DC (typically from drive internal power)
Configuration	Via ABB Drive composer or network configuration tool (e.g., openCONFIGURATOR)
Certifications	Compliant with Ethernet Powerlink Standardization Group (EPSG) specifications

Technical Principles and Innovative Values:

Innovation Point 1: Hardware-Based Determinism for True Real-Time Performance: Unlike standard Ethernet, which uses CSMA/CD and can suffer from non-deterministic delays, the ABB REPL-02 implements the EPL protocol in hardware. It uses a Time Division Multiple Access (TDMA) method, where the Managing Node grants precise time slices to each Controlled Node. This hardware-level arbitration guarantees that the REPL-02 and its connected drive will send and receive data at exact, pre-defined moments, achieving the sub-microsecond jitter necessary for tightly synchronized multi-axis motion, such as in flying shears or rotary cutters.
Innovation Point 2: Dual-Port Switch for Simplified Daisy-Chaining: The adapter incorporates a built-in 2-port switch. This allows the EPL network to be wired in a simple, cost-effective line topology. The network cable daisy-chains from the controller into the IN port of the first drive’s REPL-02, out of its OUT port, and into the IN port of the next drive. This eliminates the need for and cost of external Ethernet switches, reduces cabling, and simplifies network layout in control cabinets, while maintaining full real-time performance.
Innovation Point 3: Seamless Drive Integration with Dual-Channel Data Access: The REPL-02 provides deep, direct access to the drive’s parameters and process data. It handles both Cyclic Synchronous Data (for real-time control words, setpoints, and status) and Acyclic Data (for parameter upload/download and diagnostics) simultaneously. This allows the motion controller to not only command the drive in real-time but also to read detailed diagnostics like motor temperature, torque, and load profile without interrupting the control loop, enabling advanced condition monitoring.
Innovation Point 4: Flexible Network Role Configuration: A key differentiator is its configurable role. The same ABB REPL-02 module can be configured as a Controlled Node (slave) for most multi-drive applications, or as a Managing Node (master) for simpler, standalone machine segments. This flexibility simplifies spare parts inventory and allows for scalable, distributed control architectures where a drive with a REPL-02 can manage a local sub-network of I/O or other devices.
