Description

Application Scenarios

In an automotive assembly plant’s paint shop conveyor system, dozens of variable frequency drives control the precise movement of car bodies through various stages. Managing these drives with traditional hardwired I/O would mean thousands of wires, high installation costs, and limited diagnostic capability. The ABB RDNA-01 DeviceNet Adapter Module is installed on each drive, connecting them all to a single DeviceNet trunk line. From a central PLC, operators can now start/stop drives, adjust speeds for different production runs, and monitor real-time parameters like motor current and temperature. When a drive fault occurs, the RDNA-01 immediately transmits the detailed fault code over the network, allowing maintenance teams to pinpoint and address the issue from a central HMI, dramatically reducing troubleshooting time. This module solves the key pain points of wiring complexity, limited control flexibility, and poor diagnostic visibility in distributed drive applications.

Parameter

Main Parameters	Value/Description

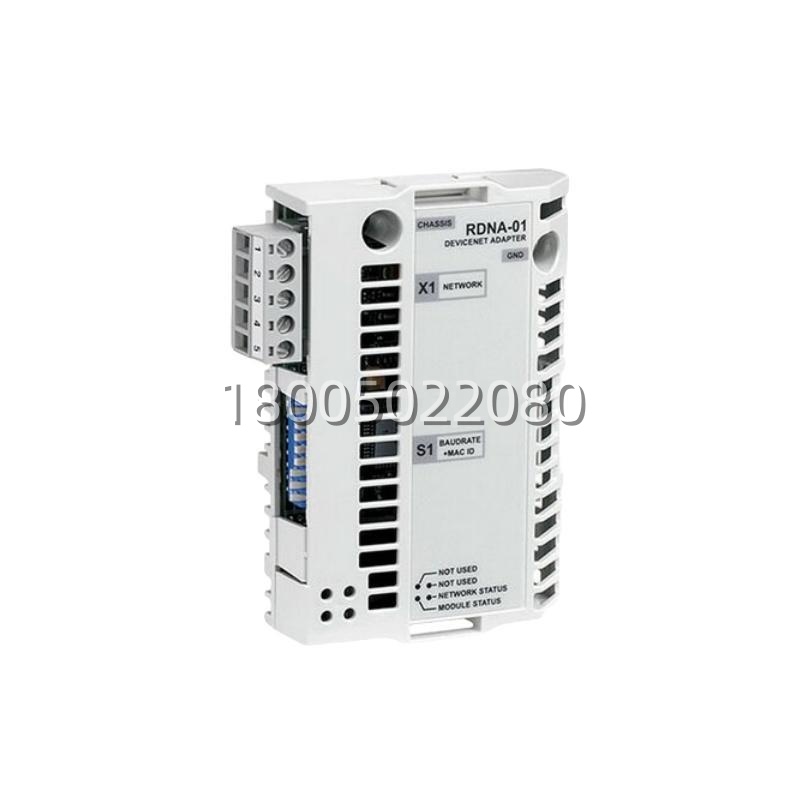

Product Model	ABB RDNA-01 DeviceNet Adapter Module
Manufacturer	ABB (Asea Brown Boveri)
Product Category	Fieldbus Communication Adapter / Network Interface Module
Primary Function	Protocol conversion gateway for connecting ABB drives to DeviceNet networks
Network Protocol	DeviceNet (based on CAN/CIP)
Baud Rate	125 kbps, 250 kbps, 500 kbps (selectable) [Determines network speed and length]
Node Address	0-63, set via rotary switches [Unique identifier on the network]
Host Interface	Connects to ABB drive’s internal communication port (varies by drive series)
Network Connection	5-pin removable screw terminal (Power, CAN_H, CAN_L, Shield, V-)
Power Supply	11-25V DC from DeviceNet network (via the connector)
Isolation	500V AC between network and drive [Critical for noise immunity and safety]
Operating Temperature	0°C to +55°C (32°F to 131°F)
Compatible Drive Series	ABB ACS 150, ACS 350, ACS 550, ACH drives, and other compatible series
Certifications	UL, cUL, CE, DNV, GL (Typical for marine/industrial use)

Technical Principles and Innovative Values

The ABB RDNA-01 acts as an intelligent interpreter, bridging the communication gap between the drive’s internal control world and the open DeviceNet fieldbus.

Innovation Point 1: Pre-Configured Explicit & I/O Messaging for Plug-and-Play Integration. The module implements the DeviceNet specification with a pre-defined, optimized object model and I/O connection. Explicit messaging allows for reading/writing any drive parameter (e.g., for commissioning or diagnostics), while I/O messaging provides a fast, cyclic connection for real-time control (start/stop, speed reference, status). This dual-messaging architecture, combined with ABB’s pre-developed Electronic Data Sheets (EDS files), enables true plug-and-play integration, drastically reducing network configuration and commissioning time.
Innovation Point 2: Robust Physical Layer Design for Industrial Reliability. Beyond protocol compliance, the RDNA-01 is engineered for the physical realities of the factory floor. It features strong galvanic isolation (500V) between the network and the drive, protecting the drive’s sensitive electronics from common-mode noise and ground loops on the network cable. Its wide operating voltage range (11-25V DC) ensures stable operation even with voltage drops on long network trunks, a common challenge in industrial installations.
Innovation Point 3: Compact Form Factor with In-Situ Diagnostics. Designed to mount directly onto compatible ABB drives, the RDNA-01 integrates seamlessly without requiring additional panel space. It provides clear, multi-color LED indicators for network status (Mod/Net), device status, and I/O activity. These real-time diagnostics allow personnel to quickly assess the health of the network connection and the adapter itself from the cabinet, enabling rapid fault localization and minimizing system downtime.
