Description
Application Scenarios:
In a steel mill’s main rolling line, precise control of the motor’s torque is critical to prevent strip breakage and ensure product quality. The existing ACS800 drive’s control unit fails due to electrical noise and vibration. Replacing it with the ABB RDCU-02C AMXR7130 restores the drive’s ability to execute DTC algorithms, providing fast torque response (< 10ms) and accurate speed control even at low speeds. Its fiber optic PPCS link ensures noise-immune communication with the power stack, while its rugged design withstands the high-temperature, dusty environment, minimizing unplanned downtime.
Parameter:
| Main Parameters | Value/Description |
|---|---|

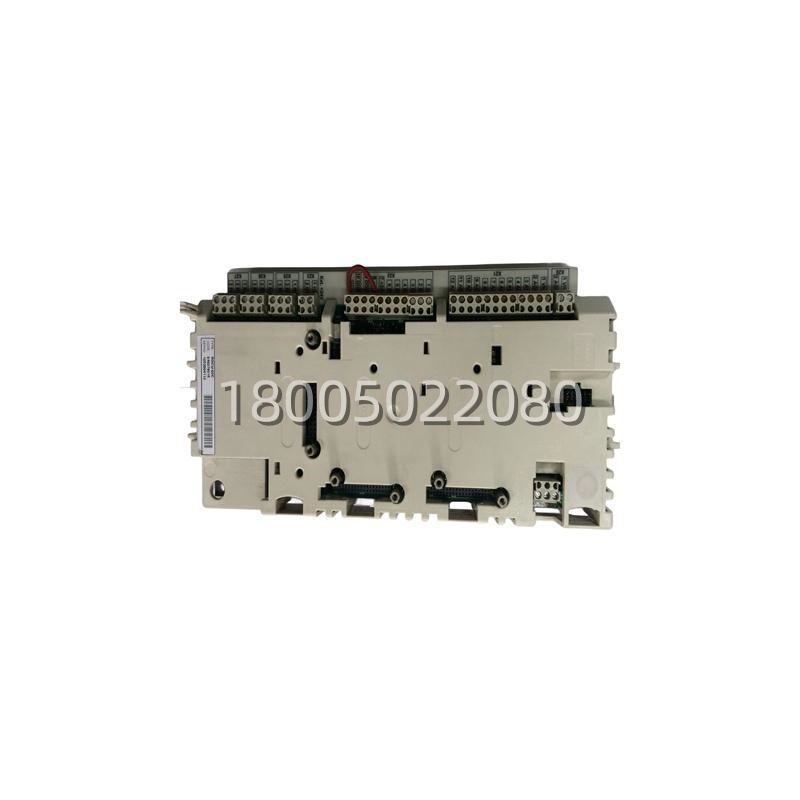

| Product Model | ABB RDCU-02C AMXR7130 |
| Manufacturer | ABB |
| Product Category | Drive Control Unit (DCU) / Industrial Automation Controller |
| Compatible Drives | ABB ACS800 Series (Single Drives, Multidrives, Liquid-Cooled) |
| Control Technology | Direct Torque Control (DTC), Vector Control |
| Power Supply | 24 VDC (±10%), typically sourced from drive’s internal PSU or external source |
| Communication Interfaces | Fiber Optic PPCS (to power stack), RS-485 (Modbus), Expansion Slots (for PROFIBUS-DP, DeviceNet, CANopen) |
| Digital Inputs/Outputs | 6-8 Programmable DI, 3-4 Programmable DO (Relay/Transistor), 1 Start Interlock (DIIL) |
| Analog Inputs/Outputs | 2x AI (0/4-20mA), 1x AI (-10V to +10V), 2x AO (0/4-20mA) |
| Mounting | 35mm DIN Rail |
| Operating Temperature | 0°C to +55°C (Standard, with wider ranges available for harsh environments) |
| Protection & Coating | Conformal Coating (Moisture/Dust Resistant), IP30 (for cabinet installation) |
| Dimensions (Approx.) | 134mm x 56mm x 70mm (varies slightly by version) |
Technical Principles and Innovative Values:
The RDCU-02C AMXR7130 is engineered to separate the high-level control logic from the power electronics, enhancing system flexibility and reliability.
- Innovation Point 1: Direct Torque Control (DTC) Core: Unlike traditional V/F control, this unit implements ABB’s proprietary DTC algorithm. It calculates the motor’s actual torque and flux in real-time (without needing an encoder in most cases), delivering full torque at zero speed and a dynamic response that is 10x faster than standard methods. This is a key differentiator for applications requiring precise motion control under rapidly changing loads.
- Innovation Point 2: Electromagnetic Immunity via Fiber Optics: The unit communicates with the inverter power stage via a fiber optic PPCS (Parallel Power Control System) link. This provides complete galvanic isolation, making the control logic immune to the high levels of electromagnetic interference (EMI) generated by IGBT switching. This innovation drastically reduces communication errors and control faults in electrically noisy industrial plants.
- Innovation Point 3: Modular & Hot-Swap Capability: The RDCU-02C is designed as a removable module. In multidrive systems or critical processes, it can be configured for hot-swap maintenance. This allows a faulty control unit to be replaced without shutting down the entire DC bus or process, a critical feature for minimizing production losses in continuous process industries like petrochemicals.
