Application Scenario: Steel Plant Conveyor Modernization
In a steel mill’s raw material handling system, the existing ACS800 drives control heavy-duty conveyors but lack network connectivity, relying on slow analog signals from a legacy Siemens S7-300 PLC. The plant needs real-time speed control and fault feedback for predictive maintenance.Solution: The RDCU-02C control board is installed as the drive’s brain (replacing older versions), and the RPBA-01 Profibus module is plugged into its slot. This setup allows the drive to communicate via high-speed Profibus DP (up to 12 Mbps) directly with the S7-300 PLC. The result is faster torque response, elimination of analog signal drift, and the ability to monitor drive temperature and load directly on the SCADA system, reducing conveyor jams by 30%.
Technical Parameters

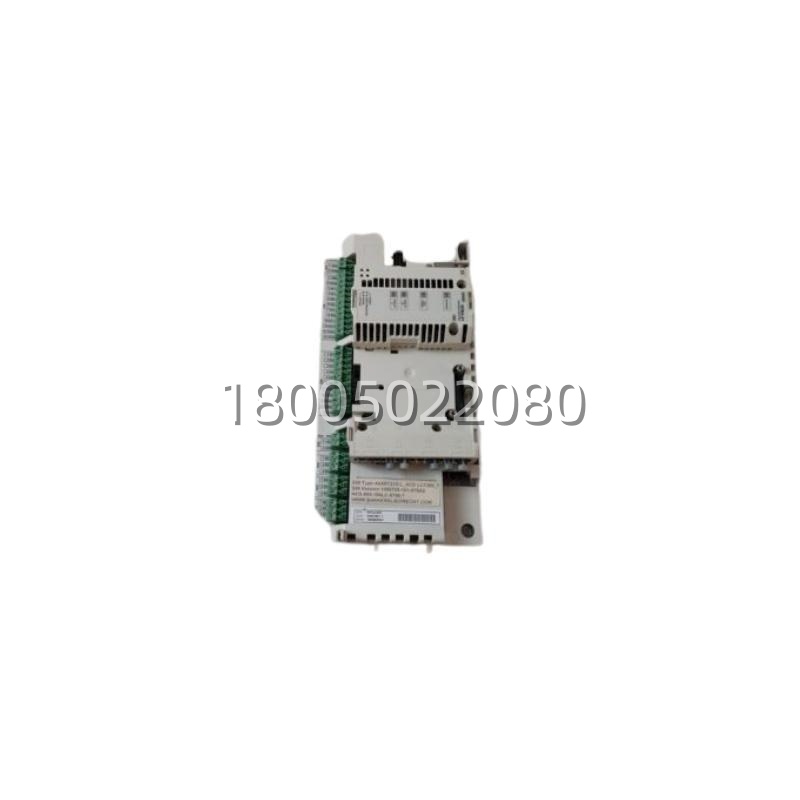

| Parameter | Specification |
|---|---|
| Core Component | RDCU-02C Drive Control Unit (P/N: 64607901F) |
| Profibus Interface | RPBA-01 (External adapter module) |
| Compatible Drive Series | ABB ACS800, ACS850 |
| Control Technology | Direct Torque Control (DTC) |
| Profibus Protocol | Profibus DP (DP-V1) |
| Baud Rate | Up to 12 Mbps |
| Node Address | Set via RPBA-01 rotary switches |
| Power Supply | 24V DC (from drive internal bus) |
| Operating Temperature | 0°C to +55°C (standard) |
Technical Principles and Value
- Modular Communication Architecture: Unlike fixed-protocol drives, the RDCU-02C features a modular slot design. The RPBA-01 adapter handles the entire Profibus protocol stack independently, offloading the main CPU. This ensures deterministic data exchange (e.g., PZD data for speed setpoint and actual value) without affecting the drive’s real-time motor control performance.
- Legacy System Integration: The RDCU-02C + RPBA-01 combo acts as a bridge. It allows modern ABB drives to seamlessly integrate into older Profibus-based automation landscapes (common in German or European machinery), preserving investments in existing PLC infrastructure while upgrading drive performance.
- Enhanced Diagnostics: The RDCU-02C provides detailed fault logs and drive status. When coupled with Profibus, this diagnostic data (e.g., overcurrent, heatsink temperature) is transmitted as standardized Profibus diagnostic messages, enabling centralized maintenance systems to pinpoint drive-specific issues beyond standard I/O faults.
