Description
Application Scenarios:
In a large steel mill’s rolling line, precise speed synchronization between multiple motors is critical. If the main control DCS loses communication with an ACS800 drive due to a faulty RDCO-01C board, the entire production line risks misalignment and shutdown. Instead of replacing the entire drive chassis, the maintenance team uses the ABB RDCO-01C DCS Communication Board Kit. They power down the drive, replace the old board in the dedicated slot on the RMIO board, reconnect the fiber optic cables, and restore power. Within minutes, the drive is back online, synchronized with the DCS, and production resumes with minimal downtime. This scenario highlights the kit’s role in enabling fast field replacement and maintaining high-availability control networks.
Parameter:
| Main Parameters | Value / Description |
|---|---|

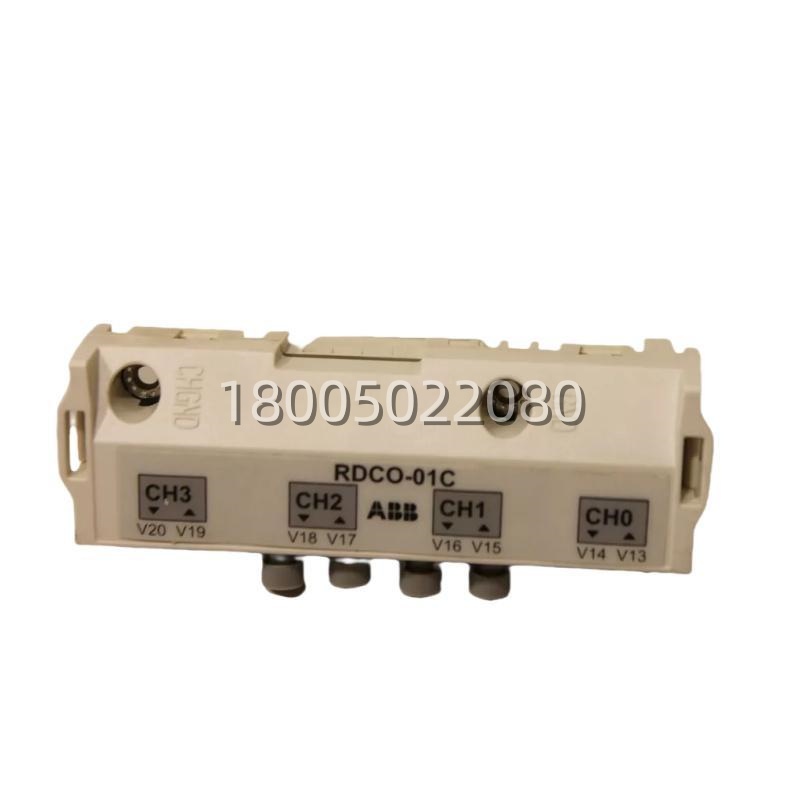

| Product Model | ABB RDCO-01C (often marked RDC0-01C) |
| Kit Part Number | 3AXD50000015621 (example, varies by revision) |
| Product Type | Drive Communication Option Module (DDCS Fiber Optic) |
| Compatible Drives | ABB ACS800 Series (mounts on RMIO board) |
| Communication Protocol | ABB DDCS (Distributed Drives Communication System) |
| Physical Interface | 4 x Fiber Optic Channels (CH0, CH1, CH2, CH3) |
| Fiber Type | Supports POF (Plastic Optical Fiber) & HCS (Hard Clad Silica) |
| Data Rate | Up to 10 MBd (Channel 0) / 5 MBd (other channels) |
| Typical Use | DCS Integration, Drive-to-Drive Master/Follower Sync, PC Tool Connection |
| PCB Protection | Coated (indicated by “C” suffix for harsh environments) |
| Operating Temperature | Standard industrial range (typically -25°C to +55°C) |
| Mounting | Plugs into dedicated slot on ACS800 RMIO board |
Technical Principles and Innovative Values:
The ABB RDCO-01C is more than a simple adapter; it is the “network card” for the ACS800 drive, designed for reliability and performance in electrically noisy industrial settings.
- Innovation Point 1: Fiber Optic Noise Immunity: Unlike copper-based communication modules (e.g., Profibus DP cards), the RDCO-01C uses fiber optic channels. This provides complete galvanic isolation and makes the communication link immune to electromagnetic interference (EMI), ground loops, and voltage transients commonly found in heavy industrial plants. This is critical for ensuring data integrity in mission-critical DCS applications.
- Innovation Point 2: Multi-Channel Flexible Topology: The module features four independent fiber optic channels. This allows for flexible network configurations: one channel (CH0) is typically used for the DCS/PLC link, another (CH2) for high-speed synchronization between drives in a master-follower setup, and a third (CH3) for temporary connection of a laptop running DriveWare for diagnostics, all without additional hardware.
- Innovation Point 3: Coated PCB for Harsh Environments: The “C” in RDCO-01C signifies a conformal coated printed circuit board. This coating protects the sensitive electronics from humidity, dust, and corrosive atmospheres (common in pulp/paper, chemical, and mining applications), significantly increasing the module’s mean time between failures (MTBF) compared to non-coated versions.
