Description
Application Scenarios
In an automotive assembly line, the ABB RCX240 is deployed to control a gantry-style Cartesian robot responsible for windshield adhesive application. The controller executes precise 3D linear and circular interpolation paths, ensuring consistent bead geometry. Its multi-tasking function allows it to simultaneously manage the robot motion and a peripheral conveyor encoder tracking signal, while the “Push Function” provides torque-controlled press-fit verification of the windshield into the frame, all without requiring a separate PLC.
Parameter
| Main Parameters | Value/Description |
|---|---|

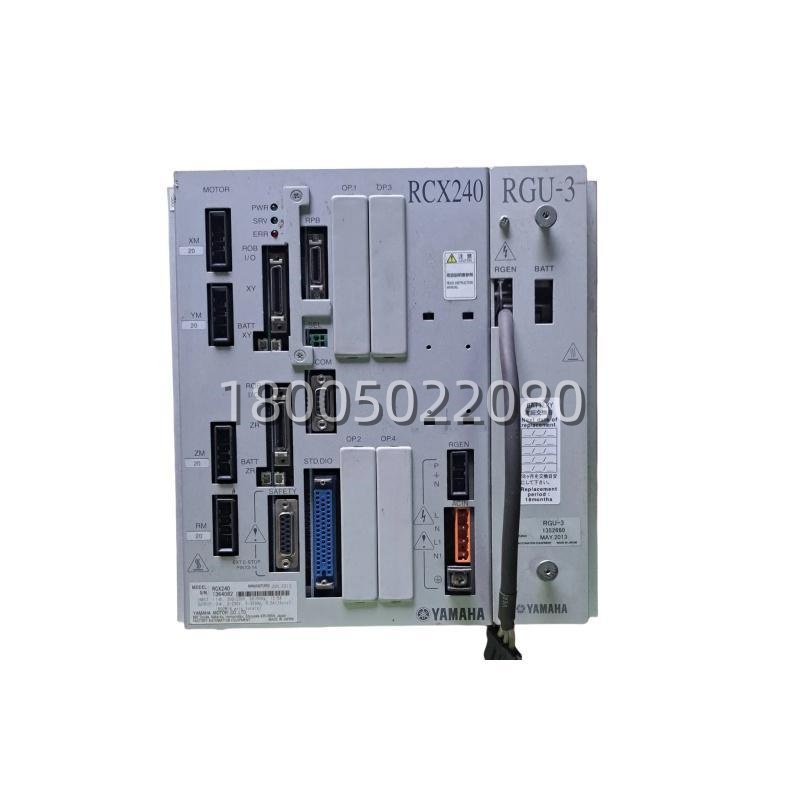

| Product Model | ABB RCX240 (and lower-power variant RCX240S) |
| Manufacturer | ABB (originally from Yamaha Robotics acquisition/partnership) |
| Control Axes | Maximum 4 axes (simultaneous control) |
| Applicable Robots | Single-axis, linear single-axis, Cartesian (XY-X), SCARA (YK-XG), Pick & Place (YP-X) |
| Motor Power Limit | RCX240: 4-axis total ≤ 1600W; RCX240S: ≤ 800W |
| Power Supply | Single-phase AC 200–230V ±10%, 50/60 Hz |
| Power Capacity | RCX240: 2500 VA; RCX240S: 1500 VA |
| Position Detection | Incremental / Absolute (Resolver, Magnetic Linear Scale) |
| Interpolation | Linear, Circular (2D/3D), Point-to-Point (PTP) |
| Programming Language | YAMAHA BASIC (based on JIS B8439 SLIM standard) |
| Multi-tasking | Up to 8 parallel tasks |
| I/O | Standard general-purpose I/O (expandable via options) |
| Communication | RS-232C; Optional: CC-Link, DeviceNet, PROFIBUS, Ethernet |
| Dimensions (WxHxD) | Approx. 180 x 250 x 235 mm (Controller only) |
| Weight | Approx. 6.5 kg |
Technical Principles and Innovative Values
The ABB RCX240 integrates advanced motion control logic into a user-friendly platform, offering several key innovations for its class.
- Innovation Point 1: Mixed Robot Fleet Management: Unlike many controllers limited to one robot type, the RCX240 can control a hybrid system comprising a mix of SCARA, Cartesian, and single-axis linear motor robots (e.g., FLIP-X and PHASER series) from a single unit, simplifying system integration and reducing hardware costs.
- Innovation Point 2: Advanced Path Planning & Push Control: The controller features sophisticated 2D and 3D linear/circular interpolation for smooth, high-speed motion. Its unique “Push Function” allows for torque-limited press-fit and insertion tasks, providing a cost-effective alternative to full-force feedback systems for assembly applications.
- Innovation Point 3: Dual-Synchronous Drive & Area Control: For handling heavy payloads or long strokes, the RCX240 supports dual-synchronous drive (controlling two motors on one axis). Combined with its “Area Check Output” function (triggering I/O when the robot enters a predefined zone), it enables complex, coordinated material handling scenarios.
