Description
Application Scenarios:
In a chemical processing plant, precise control of reactor temperature and pressure is critical for product quality and safety. The existing DCS lacks sufficient analog I/O points to integrate additional high-precision pressure transmitters and control valves for a new production line. Installing the ABB RAIO-01 64606841 into the control cabinet addresses this capacity shortfall. It acts as a distributed I/O node, acquiring 4-20mA signals from the new sensors and outputting control signals to the valves with high accuracy. This solution eliminates the need for a costly full-system upgrade, demonstrating the module’s value in scalable process control and system expansion projects.
Parameter:
| Main Parameters | Value/Description |
|---|---|

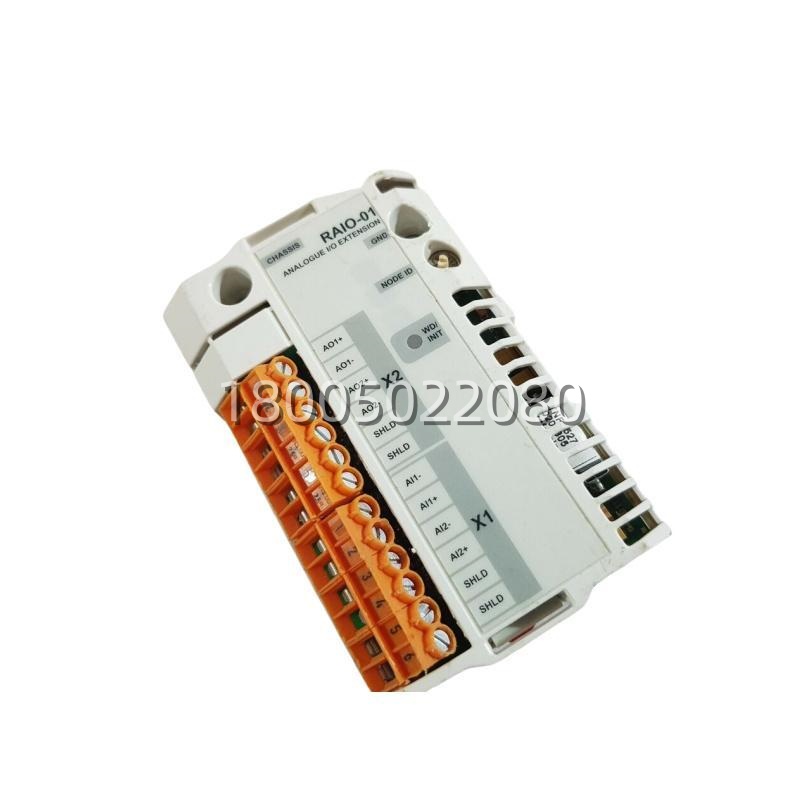

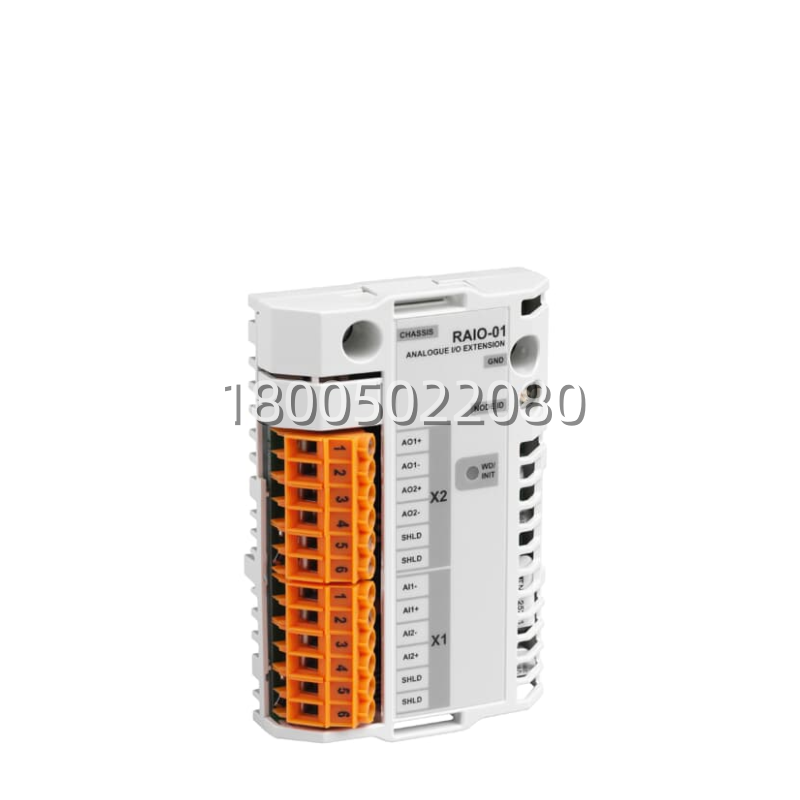

| Product Model | ABB RAIO-01 64606841 |
| Manufacturer | ABB |
| Product Category | Analogue I/O Extension PCB / Signal Conditioning Module |
| Analog Inputs (AI) | 8 channels (typical) |
| Analog Outputs (AO) | 8 channels (typical) |
| Resolution | 16-bit (AI), 12-bit/16-bit (AO) |
| Accuracy | ±0.1% of FS (AI), ±0.2% of FS (AO) |
| Isolation | Opto-isolation (channel-to-channel & field-side) |
| Communication | RS-485 / Modbus RTU |
| Operating Voltage | 24 VDC (typical, range 9-32 VDC) |
| Operating Temperature | 0°C to +45°C (up to +60°C derated) |
| Dimensions | Approx. 120mm x 100mm (PCB size) |
| Mounting | DIN Rail or Direct PCB Mount |
Technical Principles and Innovative Values:
The ABB RAIO-01 64606841 is engineered on the principle of high-fidelity signal conversion and robust industrial communication. It acts as a remote data concentrator, offloading analog signal processing from the main controller.
- Innovation Point 1: Universal Signal Conditioning: Unlike fixed-function modules, the RAIO-01 64606841 features software-configurable input and output ranges. Each channel can be independently set to handle voltage (e.g., 0-10V) or current (e.g., 4-20mA) signals via configuration software. This eliminates the need for physical jumpers or different hardware versions, drastically reducing spare parts inventory and engineering time.
- Innovation Point 2: Enhanced Signal Integrity: The PCB incorporates advanced analog front-end circuitry with 16-bit resolution and galvanic isolation. This combination ensures that even weak signals from thermocouples or RTDs (via transmitters) are accurately digitized without being corrupted by electromagnetic interference (EMI) common in industrial plants, a key differentiator for sensitive measurement applications.
- Innovation Point 3: Modular System Scalability: Designed for the Modbus RTU network, the RAIO-01 64606841 allows for true distributed I/O architecture. Multiple modules can be daisy-chained on a single RS-485 bus, enabling cost-effective expansion of analog points over long distances without the need for expensive centralized I/O cards in the main PLC rack.
