Description
Application Scenarios:
In a large-scale power generation plant, the control system engineering station is the nerve center for configuration, monitoring, and maintenance of thousands of I/O points. The existing station struggles with slow data exchange and an inability to connect to the proprietary MasterBus 300 network of the legacy Advant controllers. By installing the ABB PU516 3BSE013064R1 into the station’s PCI slot, engineers instantly gain a high-speed, reliable gateway. This PCB module addresses the critical pain point of system interoperability, enabling real-time project downloads, online logic monitoring, and efficient troubleshooting of the entire DCS without requiring a complete system overhaul. It turns a standard PC into a powerful engineering tool, ensuring the longevity and supportability of critical infrastructure.
Parameter:
| Main Parameters | Value/Description |
|---|---|

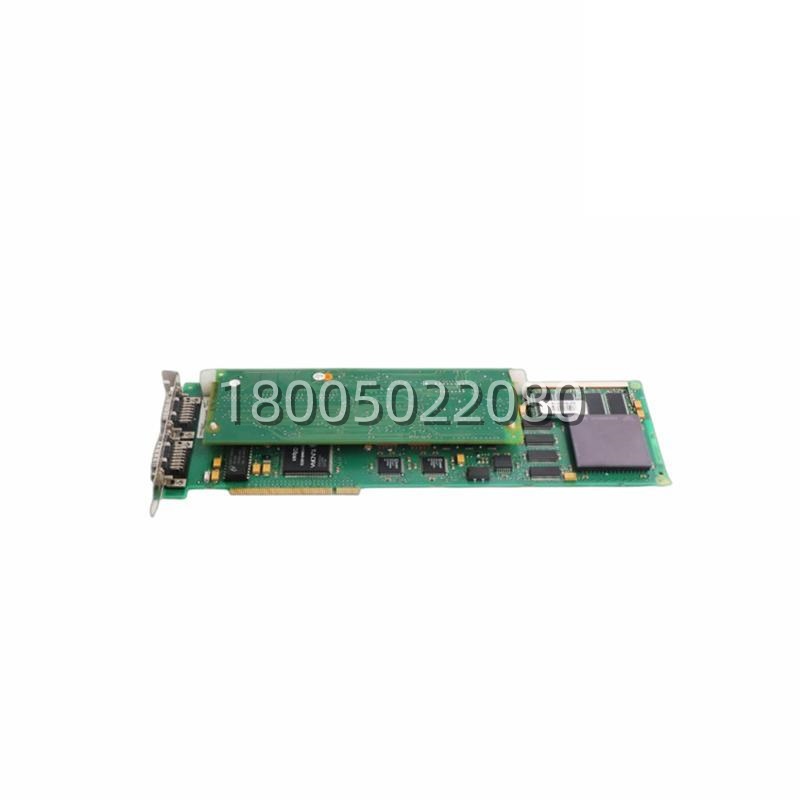

| Product Model | ABB PU516 3BSE013064R1 |
| Manufacturer | ABB |
| Product Category | Communication Interface PCB / Engineering Board |
| Bus Interface | 32-bit, 33 MHz PCI (5V) |
| Communication Ports | 1x MB300 Port, 1x RS-232 Port |
| Memory Capacity | 16 Mbyte RAM |
| Operating Voltage | 5 V DC (via PCI slot) |
| Operating Temperature | -40°C to +100°C |
| Dimensions (LxWxH) | 324 mm x 126 mm x 18 mm |
| Weight | Approx. 0.38 kg |
| Installation | PCI Slot Mounting |
| Compatibility | Advant OCS, MasterBus 300, System 800xA |
| Primary Function | Communication Coprocessing, Engineering Interface |
Technical Principles and Innovative Values:
The ABB PU516 3BSE013064R1 is engineered on the principle of offloading specialized communication processing from the host PC’s main CPU. It acts as a dedicated communication coprocessor, handling the complex protocols of the MasterBus 300 network independently.
- Innovation Point 1: Dedicated MB300 Protocol Processing: Unlike generic network cards, the PU516 3BSE013064R1 features onboard intelligence specifically designed to manage the ABB MasterBus 300 protocol. This dedicated processing ensures deterministic and reliable data exchange with ABB’s AC 400/800 series controllers, eliminating protocol conversion bottlenecks and reducing the load on the engineering station’s main processor.
- Innovation Point 2: Extreme Environmental Ruggedness: The PCB is built with industrial-grade components and conformal coating, allowing it to operate reliably in a wide temperature range from -40°C to +100°C. This makes it suitable for installation in non-climate-controlled industrial control rooms or harsh environments where standard commercial PC components would fail, ensuring uninterrupted engineering access.
- Innovation Point 3: Legacy System Integration & Lifecycle Extension: The PU516 3BSE013064R1 provides a critical bridge between modern Windows-based engineering workstations and legacy ABB control networks. This innovation allows plants to extend the lifecycle of their existing Advant OCS investments by enabling seamless integration with newer IT infrastructure, a key differentiator in reducing total cost of ownership.
