Description
Application Scenarios:
In a large-scale petrochemical plant, the central control room relies on an aging Advant OCS system to monitor thousands of I/O points from reactors and safety shutdown systems. The standard PC-based operator stations, running non-real-time operating systems, struggle with data latency and sporadic communication jitter when polling the underlying AC450 controllers. This delay can obscure critical process deviations during fast transients. The ABB PU515A (3BSE032401R1) is installed in the PCI slot of these workstations to eliminate this bottleneck. It takes over all MB300 protocol processing, providing a dedicated, deterministic channel that delivers sub-millisecond data updates. This allows operators to see real-time pressure and temperature trends without lag, ensuring timely interventions and maintaining the integrity of the entire DCS data layer.
Parameter:
| Main Parameters | Value/Description |
|---|---|

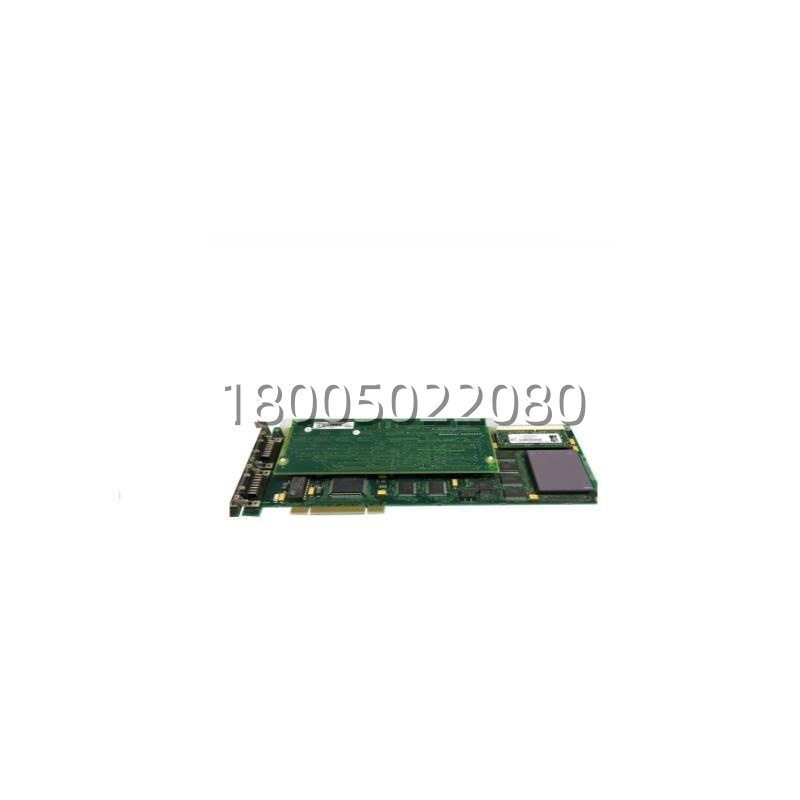

| Product Model | ABB PU515A (3BSE032401R1) |
| Manufacturer | ABB Automation |
| Product Category | Real-Time Accelerator (RTA) / PCI Communication Board |
| Compatible Systems | Advant OCS, Advant Master, MOD 300, Advant Station 500 Series |
| Host Interface | PCI / PCI-X (32-bit, 3.3V/5V compatible) |
| Fieldbus Protocol | MasterBus 300 (MB300) |
| Communication Channels | 2 (Dual-channel, supports redundant configuration) |
| Communication Speed | 10 Mbps (10,000 kbit/s) |
| Onboard Processor | 25 MHz RISC CPU (dedicated for protocol processing) |
| Onboard Memory | 16 MB RAM (for data buffering and protocol stack) |
| Physical Connectors | 2 x 15-pin D-Sub (female) for MB300 coaxial connection |
| Power Consumption | ~5W (powered directly from PCI slot) |
| Operating Temperature | 0°C to +55°C (standard industrial range) |
Technical Principles and Innovative Values:
The ABB PU515A (3BSE032401R1) is engineered to solve the fundamental conflict between non-real-time commercial operating systems and the hard real-time requirements of industrial control.
- Innovation Point 1: Hardware-Based Protocol Offload. Unlike software-based drivers that compete for CPU time, the ABB PU515A features a dedicated 25 MHz RISC processor and 16 MB of onboard RAM. This hardware subsystem independently manages the entire MB300 token-passing protocol stack. By offloading this computationally intensive task from the host PC’s main CPU, it eliminates scheduling jitter and guarantees consistent, low-latency data exchange, regardless of the host’s graphical or computational load.
- Innovation Point 2: Deterministic Dual-Channel Architecture. The board’s dual independent MB300 channels provide a foundation for high availability. In critical applications, two ABB PU515A boards can be configured for redundancy, or a single board can manage separate network segments. This architecture ensures that a fault in one communication path does not isolate the operator station, maintaining continuous data flow for mission-critical monitoring and control.
- Innovation Point 3: Legacy System Lifecycle Extension. The ABB PU515A serves as a vital bridge technology. It allows plants with extensive investments in Advant Master or MOD 300 infrastructure to continue using modern PC hardware as engineering stations. By providing a reliable PCI-based interface to the proprietary MB300 network, it extends the operational life of existing DCS assets without requiring a costly, full-system rip-and-replace upgrade.
