Description
Application Scenarios
In a municipal water pumping station, large centrifugal pumps traditionally started with direct-on-line (DOL) contactors experienced severe water hammer, pipe stress, and frequent mechanical seal failures. By integrating the ABB PSTX60-600-70 ACS310 soft starter, engineers configured a linear voltage ramp-up. This gentle start eliminated water hammer, reduced starting current by over 60%, and extended pump bearing life by 30%. The built-in electronic overload protection of the PSTX60-600-70 also prevented motor burnout during voltage dips, transforming a maintenance-heavy system into a reliable, low-stress operation.
Parameter
| Main Parameters | Value/Description |
|---|---|

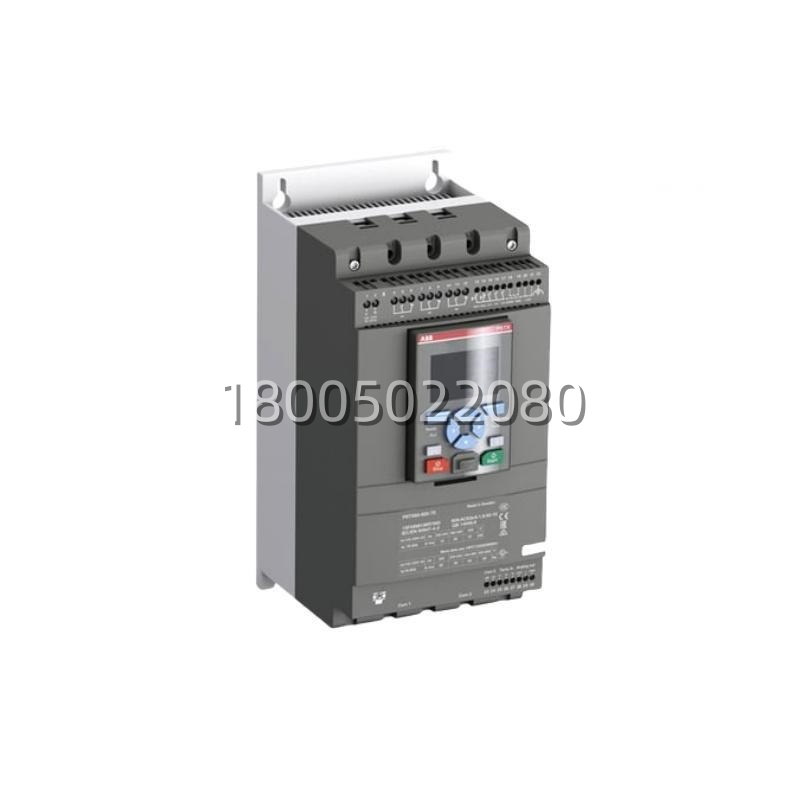

| Product Model | PSTX60-600-70 |
| Manufacturer | ABB |
| Product Category | Soft Starter / Motor Controller |
| Rated Operational Voltage | 208–600 V AC, 50/60 Hz |
| Rated Motor Power | Up to 30 kW (at 400-600V) |
| Rated Current (Ie) | 60 A (In-line connection) |
| Control Supply Voltage (Us) | 100–250 V AC |
| Starting Mode | Voltage ramp, Torque control, Current limit |
| Ramp Time Range | 1–120 seconds (adjustable) |
| Initial Start Voltage | 30–70% (of line voltage) |
| Communication | Built-in Modbus RTU; Optional Anybus (Profinet, Ethernet/IP) |
| Protection Features | Electronic overload (EOL), phase loss, under/over voltage, earth fault |
| Dimensions (HxWxD) | ~260 x 160 x 196 mm |
Note: The “70” in the model number typically refers to the initial starting voltage parameter range.
Technical Principles and Innovative Values
The ABB PSTX60-600-70 ACS310 utilizes advanced thyristor (SCR) technology to control the voltage applied to the motor during start and stop cycles, effectively managing torque and inrush current.
- Innovation Point 1: Torque-Controlled Soft Start & Stop. Unlike basic voltage-ramp starters, the PSTX60-600-70 can be configured for torque control. This ensures the motor delivers just enough torque to start the load without unnecessary mechanical strain, which is critical for high-inertia applications like crushers or large fans. The soft-stop function prevents “coasting” and provides controlled deceleration for conveyor systems.
- Innovation Point 2: Integrated Bypass Contactor & Energy Savings. After the motor reaches full speed, the internal bypass contactor engages, shunting current around the thyristors. This eliminates heat dissipation from the SCRs during run-time, reducing cabinet cooling requirements and saving energy. This built-in feature removes the need for an external bypass contactor, simplifying panel design.
- Innovation Point 3: Smart Motor Protection & Diagnostics. The unit goes beyond simple starting; it includes a full suite of protection features like electronic overload (EOL), lock rotor protection, and underload detection. Its event log and real-time clock help maintenance teams diagnose the root cause of faults, such as identifying recurring voltage sags that precede motor trips.
Application Cases and Industry Value
Case 1: Mining Conveyor Belt Retrofit for a Copper MineA mining operation faced persistent belt slippage and gearbox failures on a 30kW inclined conveyor due to high starting torque. The existing star-delta starter was unreliable and caused jerky starts. Replacing it with the ABB PSTX60-600-70 ACS310 allowed for a precisely tuned current limit start. The result was a 40% reduction in belt tension spikes, elimination of material spillage at start-up, and a significant drop in gearbox maintenance costs. The robust design of the PSTX60-600-70 withstood the dusty, high-vibration environment, proving its industrial durability.Case 2: HVAC Fan System Modernization in a Commercial BuildingA large commercial building’s rooftop HVAC fans (22kW) produced loud noise and vibration during start-up, leading to occupant complaints and frequent belt replacements. The PSTX60-600-70 was installed with an extended ramp-down time for soft stopping, which also prevented backdraft damper slam. The reduction in electrical and mechanical stress led to a quieter operation and extended motor life. The built-in Modbus communication allowed integration into the building’s BMS for remote monitoring and scheduling.
