Application Scenarios:
A packaging machinery OEM needed a compact controller that could handle basic logic, analog speed control for a conveyor drive, and seamless integration with their factory’s Ethernet-based SCADA system. The ABB PM564-T-ETH provided an all-in-one solution: its 6 digital inputs monitored sensors and buttons, the 2 analog inputs read a potentiometer for speed setting, and the integrated Ethernet port allowed direct connection to the plant network for real-time monitoring via Modbus TCP. This eliminated the need for external analog modules and separate communication gateways, reducing panel space by 30% and simplifying the bill of materials for the OEM’s standard machine platform.
Parameter:
| Main Parameters | Value/Description |
|---|---|

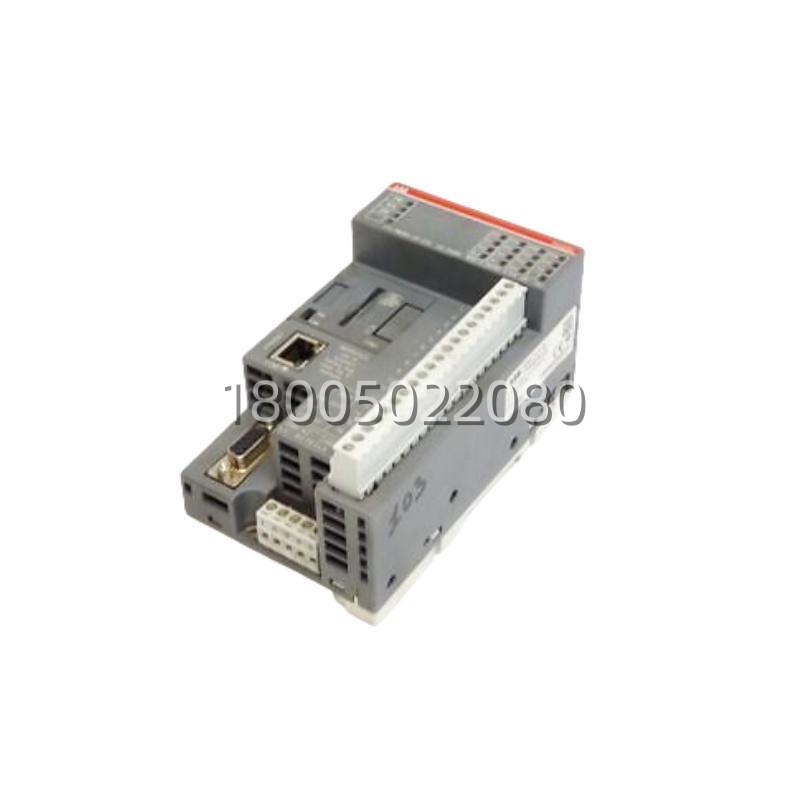

| Product Model | ABB PM564-T-ETH |
| Manufacturer | ABB |
| Product Category | Compact PLC (Micro Controller) |
| Series | AC500-eCo |
| CPU & Memory | 32-bit CPU, 512 kB program memory |
| Integrated I/O | 6x DI (24V DC), 6x DO (Transistor, 24V DC), 2x AI, 1x AO |
| Communication Ports | 1x Ethernet (10/100 Mbps), 1x RS485 (COM1) |
| Ethernet Services | Modbus TCP, HTTP (Web Server), FTP, SNTP |
| Power Supply | 24 V DC (Terminals 6/7) |
| Programming Standard | IEC 61131-3 (LD, FBD, ST, SFC, CFC) |
| Operating Temperature | 0 °C to +60 °C (horizontal mounting) |
| Installation | DIN Rail Mount (35mm) |
| Dimensions (WxHxD) | Approx. 137 mm x 90 mm x 35.6 mm |
