A municipal water pumping station was struggling with frequent downtime due to the failure of its outdated, hardwired relay control panel. The system lacked remote monitoring capabilities, and maintenance crews had to be dispatched on-site for every minor fault. The station engineers opted for a cost-effective modernization using the ABB PM564-RP-ETH-AC. The module’s built-in 6 relay outputs directly replaced the old contactor coils, while its 2 analog inputs were wired to existing pressure transmitters. The integrated Ethernet port enabled seamless connection to the station’s SCADA network, allowing operators to monitor pump status and pressure data remotely from the central control room. This upgrade eliminated the complex web of interposing relays, reduced wiring costs by 40%, and cut the average fault resolution time from hours to minutes.
Parameter
| Parameter | Value / Description |
|---|---|

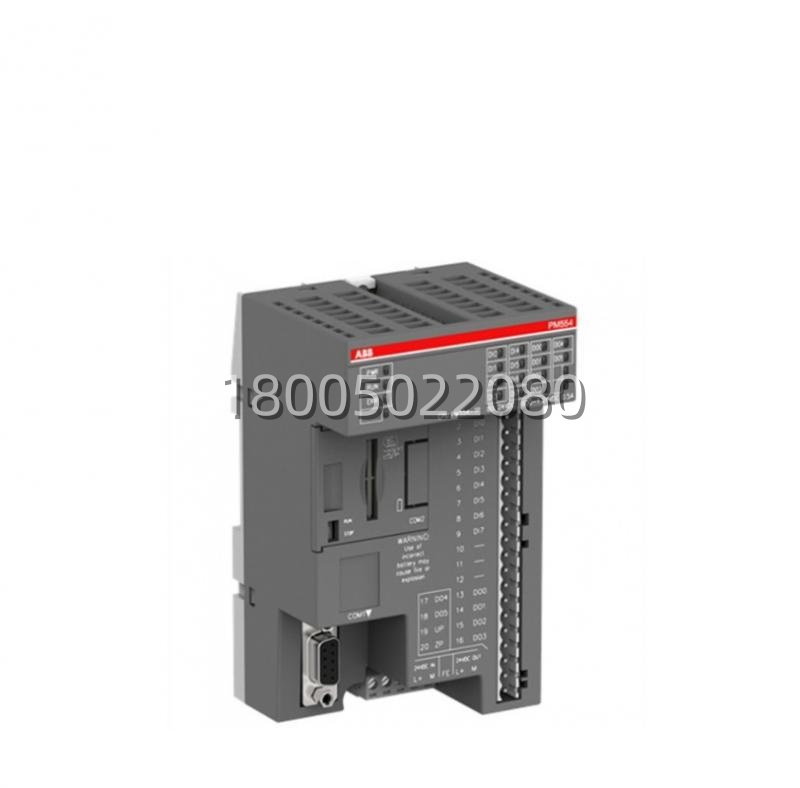

| Product Model | ABB PM564-RP-ETH-AC |
| Manufacturer | ABB |
| Order Number | 1SAP121100R0071 |
| Product Category | PLC / PAC CPU Module (AC500-eCo Series) |
| CPU Processor | 32-bit Freescale ARM, 50 MHz |
| Program Memory | 128 kB Flash EPROM |
| Data Memory | 10 kB VAR, 1 kB Retain, 2 kB %MB |
| Onboard Digital I/O | 6 x DI (24V DC), 6 x DO (Relay) |
| Onboard Analog I/O | 2 x AI, 1 x AO |
| Communication Ports | 1 x Ethernet (RJ45), 1 x RS-485 (COM1) |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Max Power Dissipation | 5.3 W |
| Operating Temperature | 0 °C to +60 °C |
| Dimensions (W x H x D) | 74 mm x 135 mm x 82 mm |
| Mounting | DIN Rail (TH35) |
| Certifications | IEC 61131-2, UL, CE, CISPR11 Class A |
