Description
Application Scenarios
A manufacturer of small packaging machines faced high costs and long lead times using complex, modular PLCs for simple tasks like conveyor control and glue application. Each machine required a separate CPU, digital input module, and relay output module, increasing cabinet size and wiring complexity. By switching to the ABB PM554-RP, the manufacturer leveraged its 8 integrated digital inputs for sensors and 6 integrated relay outputs for actuators like solenoid valves and motors. This “all-in-one” design eliminated two additional modules per machine, cut cabinet space by 30%, and reduced total installed cost by 25%. The integrated RS485 port allowed for easy connection of a small HMI for operator interface, streamlining the entire control package.
Parameter

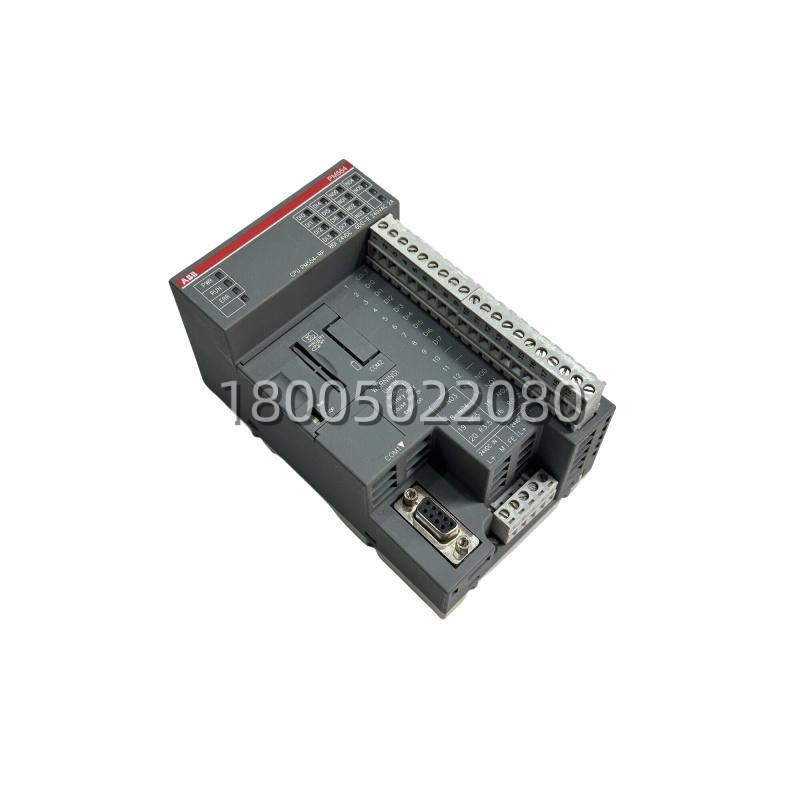

| Parameter | Value / Description |
|---|---|
| Product Model | PM554-RP |
| Manufacturer | ABB |
| Product Category | Compact PLC CPU Module |
| Series | AC500-eCo (Economy/Compact) |
| Integrated I/O | 8x Digital Inputs (24V DC), 6x Relay Outputs (2A) – Eliminates need for separate basic I/O modules. |
| Program Memory | 128 KB – Sufficient for complex logic, timers, counters, and data handling for small applications. |
| Communication Ports | 1x USB (Programming), 1x RS485 (COM1) – Enables easy connection to HMI, drives, or SCADA via Modbus RTU. |
| Expansion Capability | Local expansion via S500 I/O modules (up to 10 modules) – Provides a scalable growth path. |
| Programming Software | Automation Builder (IEC 61131-3) – Standard engineering environment for all ABB controllers. |
| Power Supply | 24V DC (20.4 – 28.8V DC) – Standard industrial voltage. |
| Operating Temperature | 0°C to +60°C – Robust for standard industrial panel environments. |
| Installation | DIN-rail mounting (35mm) – Standard, space-efficient panel mounting. |
Technical Principles and Innovative Values
The ABB PM554-RP is engineered on the principle of “right-sizing,” delivering essential PLC functionality in a highly integrated and cost-optimized package for entry-level and OEM applications.
