Description
Application Scenarios
In a large chemical processing plant, the aging relay-based control system for the solvent recovery unit was causing frequent unplanned downtime due to faulty logic and a lack of diagnostic visibility. The plant engineers needed a solution that could handle complex sequential logic, integrate with existing Profibus DP field devices, and provide real-time data to the central SCADA system—all within a tight migration window during the annual turnaround. The ABB PM511V16 was selected as the core of the upgrade. Its compatibility with the existing Advant OCS architecture allowed for a smooth transition; the module’s high-speed processing enabled faster batch sequencing, while its dual Ethernet ports facilitated seamless integration with the plant’s asset management system. The project was completed with zero safety incidents, resulting in a 30% reduction in cycle time and a significant improvement in operational visibility.
Parameter
| Parameter | Specification |
|---|---|

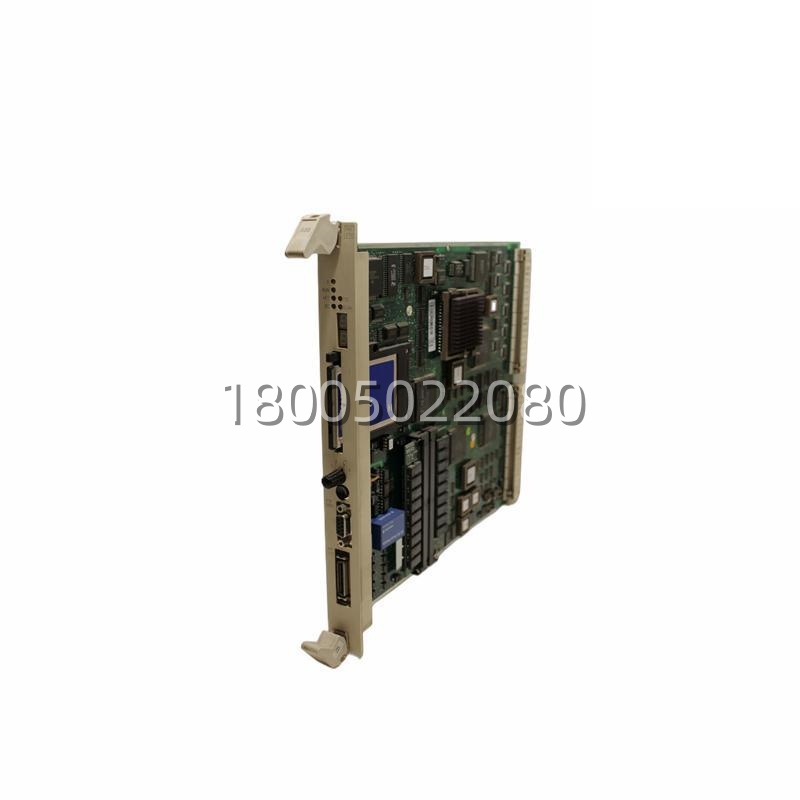

| Product Model | ABB PM511V16 (3BSE011181R1) |
| Manufacturer | ABB (Asea Brown Boveri) |
| Product Category | PLC / PAC Processor Module |
| Processor | 32-bit PowerPC 603e / RISC Architecture |
| User Memory | 16 MB RAM (Application Memory) |
| Non-Volatile Memory | 16 MB Flash (Program Storage) |
| Communication Ports | Ethernet (2x RJ45), RS-232/RS-485 (Serial), Profibus DP |
| Supply Voltage | 24 V DC (Nominal) |
| Power Consumption | ~15 W (Typical) |
| Operating Temperature | 0°C to +60°C (Extended: -25°C to +70°C) |
| Redundancy Support | Yes (Hot Standby CPU Redundancy) |
| Dimensions (HxWxD) | 27 mm x 270 mm x 274.5 mm |
| Mounting | DIN Rail or Rack Mount (via compatible base unit) |
