Description
Application Scenarios:In a large-scale thermal power plant’s boiler control modernization project, engineers faced the challenge of replacing aging legacy controllers without disrupting the continuous 24/7 operation. The solution centered on deploying the ABB PM510 3BSE000270R1 as the new control brain. Installed in redundant pairs within AC 800M racks, the PM510 modules took over critical functions—managing combustion control loops, sequencing sootblowers, and processing thousands of I/O points from field sensors. Its deterministic scan times ensured millisecond-level response to process upsets, while its dual Ethernet ports enabled seamless integration of third-party turbine controls via Modbus TCP. This upgrade directly addressed the pain points of obsolescence and reliability, extending the system’s lifecycle by over 15 years with minimal operational risk.
Parameter:
| Main Parameters | Value/Description |
|---|---|

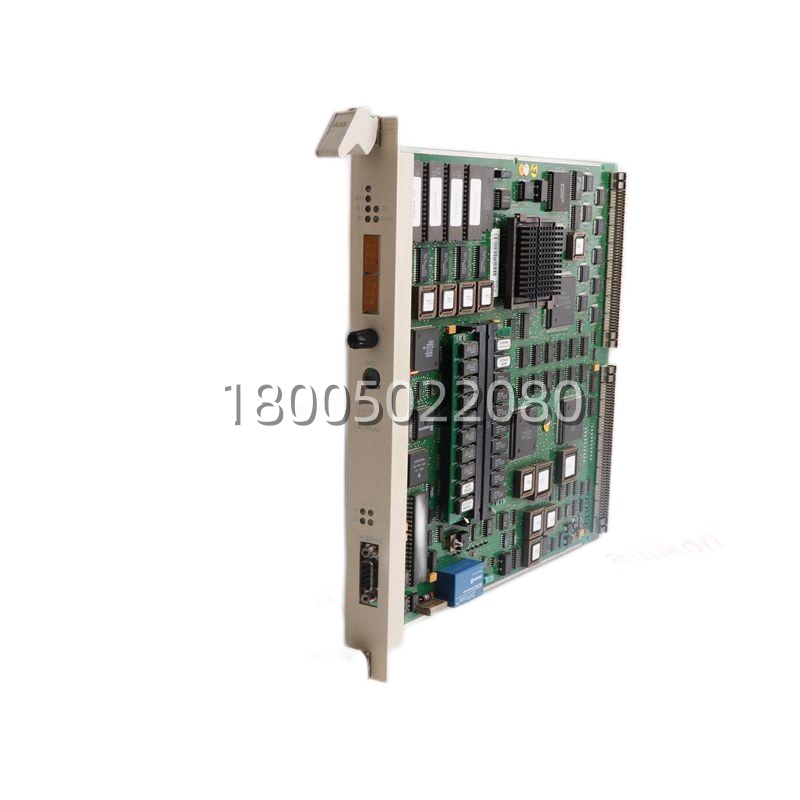

| Product Model | ABB PM510 3BSE000270R1 |
| Manufacturer | ABB Ltd. (Industrial Automation) |
| Product Category | Processor Module / PLC/DCS CPU |
| Compatible System | Advant Controller 450/460, AC 800M, ABB 800xA |
| Processor Core | 32-bit RISC CPU |
| System Memory | 32 MB RAM, 8 MB Flash (with battery backup) |
| Communication Ports | 2x Ethernet 10/100 Mbps, 1x RS-232 Serial |
| Supported Protocols | Modbus, Profibus DP, Ethernet/IP, OPC, FF, IEC 60870-5 |
| I/O Capacity | Supports up to ~4,000 I/O points |
| Supply Voltage | 24V DC (typically from system backplane) |
| Operating Temperature | -20°C to +55°C (industrial grade) |
| Mounting | DIN Rail or Rack Mount (via carrier module) |
