In an automotive OEM paint shop, the ABB PIB-03 is mounted inside the IRC5P controller cabinet. As the robot moves along the car body, the main computer sends trajectory data, while the PIB-03 takes over the high-speed digital logic: triggering the exact millisecond when the gun opens, switching between 8 different color valves without dripping, and activating the solvent flush cycle at the end of the shift. Its robust design ensures these critical I/O operations are isolated from the motion control bus, preventing electrical noise from paint booth solvents and high-voltage equipment from causing random robot faults or production stoppages.
Parameter
| Main Parameters | Value/Description |
|---|---|

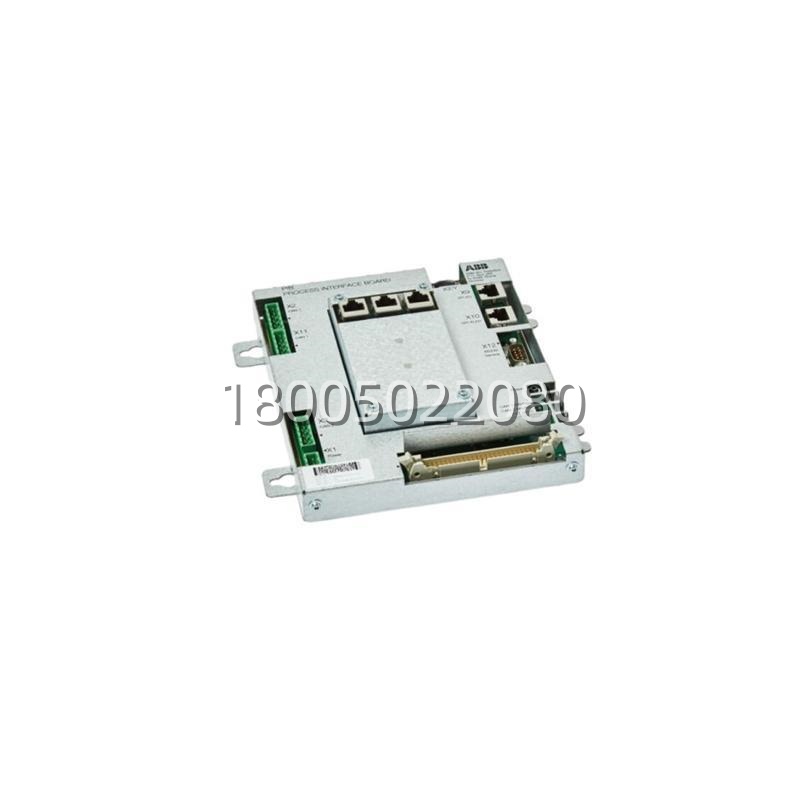

| Product Model | PIB-03 (Process Interface Board) |
| Part Numbers | 3HNA023282-001 (Primary) 3HAC029236-002 (Alternative/Related) |
| Compatibility | ABB IRC5P Controller, IRB 5400, IRB 52 series RobotWare 5.14, 5.15 (Upgrade from PIB-01) |
| Primary Function | Digital I/O for Paint Process (Color Valve, Gun, Flush) |
| Input Voltage | 24 V DC (Typical, from Controller Backplane) |
| I/O Type | Digital Inputs & Outputs (Relay/Transistor) |
| Communication | Internal Bus (to Robot CPU), Field I/O (to Valves) |
| Operating Temp. | -20°C to +55°C / +60°C (Industrial Grade) |
| Dimensions (LxWxH) | ~200 x 160 x 40 mm (Varies by source) |
| Weight | Approx. 1 kg |
| Mounting | Internal Panel/Rail Mount in Robot Controller |
| Key Upgrade Note | Replaces 3HNA006144-001 (PIB-01); requires upgrade procedure |
