ABB PHBFIO10010000 FIO 100 Fieldbus I

Description

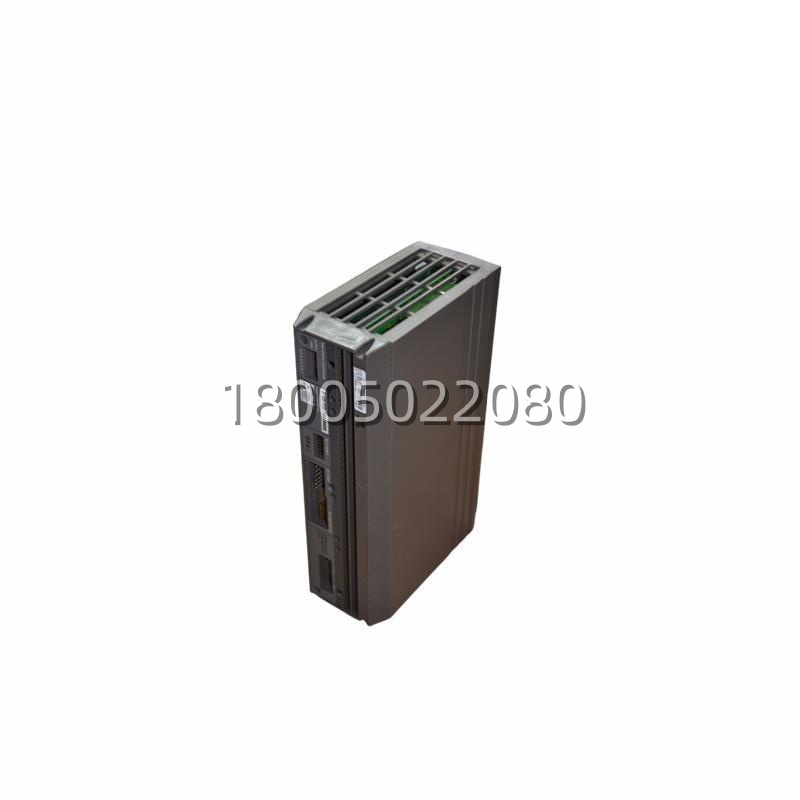

The ABB PHBFIO10010000 (also known as P-HB-FIO-10010000 or FIO 100) is a compact, high-density fieldbus I/O module manufactured by ABB for decentralized industrial automation systems. Designed for flexibility and harsh environments, this module acts as a remote I/O node, connecting sensors and actuators directly to PROFIBUS or PROFINET networks with robust signal conditioning.

Application Scenarios

In a high-speed automotive assembly line, traditional centralized control cabinets created a bottleneck. Engineers needed to reduce wiring costs and improve diagnostics for hundreds of distributed sensors (proximity, photoelectric) and actuators (solenoids, relays) along the conveyor. By deploying the ABB PHBFIO10010000 as a decentralized I/O node directly on the machine floor, they eliminated over 40% of the field wiring by running a single fieldbus cable instead of individual multi-core cables back to the main PLC. The module’s IP65 rating allowed it to be mounted close to the process, resisting oil and dust contamination. Real-time diagnostics via the fieldbus network enabled predictive maintenance, reducing machine downtime by 15% in the first quarter.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Parameter

Parameter	Value / Specification
Product Model	PHBFIO10010000
Alternative P/N	P-HB-FIO-10010000, FIO 100
Manufacturer	ABB
Product Category	Fieldbus I/O Module (Remote I/O Node)
Fieldbus Protocols	PROFIBUS DP, PROFINET IO (varies by variant)
I/O Capacity	Up to 32 digital channels (16 IN / 16 OUT typical)
Input Voltage	24V DC (typical for sensor supply)
Power Supply	24V DC (external)
Communication Speed	Up to 12 Mbps (PROFIBUS DP-V1)
Protection Rating	IP65 / IP67 (Dust-tight, protected against water jets)
Operating Temperature	-25°C to +70°C
Connection Type	M12 connectors (fieldbus & I/O)
Dimensions (WxHxD)	~96mm x 102mm x 26.6mm

Technical Principles and Innovative Values

The ABB PHBFIO10010000 operates on the principle of decentralized I/O processing, bringing the control interface closer to the field devices to reduce signal latency and wiring complexity.

Innovation Point 1: True Distributed Architecture: Unlike rack-based I/O that centralizes all signals, the FIO 100 is a self-contained node. It digitizes field signals locally and transmits them over a high-speed serial fieldbus, drastically reducing the number of long, expensive analog/digital cables running back to the control room.
Innovation Point 2: Harsh Environment Hardening: With an IP65/IP67 rating and a wide operating temperature range (-25°C to +70°C), this module is engineered for direct mounting in harsh industrial environments (e.g., machine tool splash zones, outdoor applications) without requiring an additional protective enclosure.
Innovation Point 3: Protocol Flexibility: The module supports multiple fieldbus standards (PROFIBUS DP, PROFINET) depending on the ordered variant. This allows it to seamlessly integrate into both legacy and modern automation networks without hardware changes, providing long-term investment protection.
