Description
Parameter:
| Parameter | Specification |
|---|---|

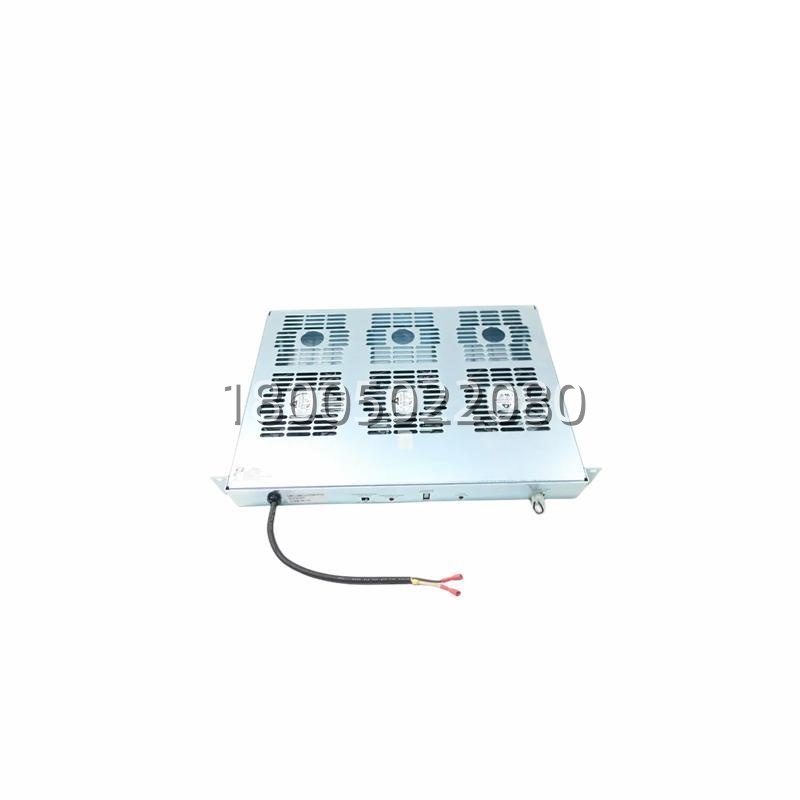

| Product Model | PHARPSFAN03000 |
| Manufacturer | ABB |
| Product Category | System Fan / Cooling Module |
| Associated Series | Bailey INFI 90, Symphony Harmony, S+ HR Power |
| Input Voltage | 24 VDC (Typ.) |
| Airflow Capacity | ~300 CFM (High-Capacity Design) |
| Control Logic | Thermal Sensor-Based Auto Start/Stop |
| Monitoring Signals | Fan Fail, Speed Alarm |
| Mounting | Cabinet Slot / Dedicated MPS Mount |
| Dimensions (W x H x D) | ~450 x 170 x 55 mm |
| Weight | Approx. 6.7 kg |
| Operating Temperature | -20°C to +60°C (Industrial Grade) |
Technical Principles and Innovative Values:The ABB PHARPSFAN03000 is engineered not just as a simple fan, but as an intelligent cooling subsystem integrated into the control logic.
- Innovation Point 1: Closed-Loop Thermal Management: Unlike basic constant-speed fans, the PHARPSFAN03000 incorporates temperature sensing and variable speed control (or staged operation). It dynamically adjusts cooling intensity based on real-time cabinet temperature, reducing power consumption and acoustic noise during low-load conditions while ensuring maximum cooling during peak loads.
- Innovation Point 2: Predictive Diagnostics Integration: The module provides critical feedback signals (Fan Fail, Speed) to the host MPS monitoring system. This allows the DCS to generate an early “Cooling Degraded” alarm long before the cabinet overheats, transforming cooling from a passive utility into a monitored safety function and enabling predictive maintenance.
- Innovation Point 3: High-Reliability Mechanical Design: Built for 24/7 operation in harsh environments, the fan utilizes industrial-grade ball bearings and a robust motor designed for high static pressure. This ensures reliable performance even when pushing air through dense electronic racks and filters, with an MTBF rating that supports critical process availability.
Application Cases and Industry Value:A steel mill’s blast furnace control system, running on an ABB Symphony Harmony DCS, faced intermittent shutdowns during hot-rolling operations. The root cause was traced to the MPS power racks overheating, which housed the PHARPSFAN03000 fans. An investigation revealed that the original fans had degraded over years of service, failing to move sufficient air. A strategic upgrade to new, genuine ABB PHARPSFAN03000 units was executed during a planned outage. Post-installation, cabinet internal temperatures dropped by 15°C. More importantly, the restored monitoring signals allowed the maintenance team to track fan health via the DCS HMI. This intervention extended the lifespan of the adjacent expensive power supplies and CPUs, reducing unscheduled downtime by an estimated 90% for thermal issues and securing a critical continuous production process.
