Description

Application Scenarios

Consider the afternoon shift at a paper mill, where a 2.5 MW ACS800 drive controlling the refiner suddenly trips with the dreaded “Gate Driver Fault” or “IGBT Desat” alarm. The maintenance team’s initial instinct might be to suspect a failed IGBT power module. However, after testing the power semiconductors and finding them intact, the culprit is often far less obvious: the ABB PHAFIOFFH10000 driver board .

Specifically, the fiber-optic receiver heads on the PHAFIOFFH10000 can degrade over time due to heat and vibration, or the isolated gate supply voltage can become unstable, preventing the IGBT from switching correctly . This board is the “signal-to-power” translator, and when it fails, the entire drive shuts down. Replacing the PHAFIOFFH10000—which is now a discontinued legacy part—with a verified New Surplus unit is often the fastest path to restoring production . For plants that depend on continuous processes, holding a spare PHAFIOFFH10000 in stock is not just prudent; it’s essential to avoid multi-hour or multi-day downtime.

Parameters

Main Parameters	Value/Description

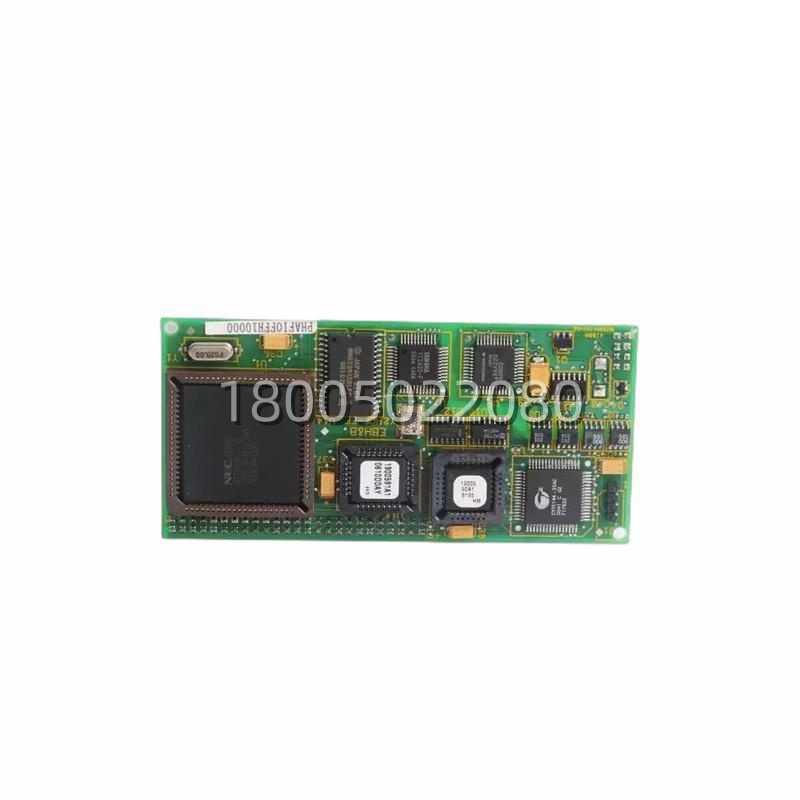

Product Model	ABB PHAFIOFFH10000 (Drawing: WE-EN-01-161)
Manufacturer	ABB
Product Category	IGBT Gate Driver Board / Inverter Power Unit Board
Primary Application	ACS800 and ACS880 drive power units
Key Function	Converts fiber-optic control pulses to IGBT gate drive signals
Input Interface	Fiber-optic receiver (from AINT/AINV control board)
Protection Features	DESAT detection, gate voltage undervoltage lockout (UVLO), temperature monitoring
Isolation	Galvanic isolation between control and power sections (via optocouplers)
Dimensions	145 x 133 x 73 mm (approx.)
Weight	~0.5 kg
Product Status	Discontinued / Legacy Part (New Surplus available)

Technical Principles and Innovative Values

Innovation Point 1: Fiber-Optic Control Interface for High-Voltage Isolation
The ABB PHAFIOFFH10000 receives its switching commands via fiber-optic pulses from the drive’s main control unit. This optical interface ensures complete galvanic isolation between the low-voltage control electronics and the high-voltage IGBT power stage, protecting sensitive control circuits from the high dv/dt and common-mode noise present in an inverter power section .
Innovation Point 2: Integrated DESAT and Short-Circuit Protection
The PHAFIOFFH10000 is the board that protects the expensive IGBT module. It incorporates DESAT (de-saturation) detection circuitry that monitors the collector-emitter voltage of the IGBT during switching. If a short-circuit condition is detected, the board triggers a “soft turn-off” within microseconds, safely shutting down the IGBT and preventing catastrophic failure—protecting an investment that far exceeds the cost of the driver board itself .
Innovation Point 3: System-Level Health Monitoring Feedback
Beyond simply driving the gate, the PHAFIOFFH10000 is a sensor hub. It monitors the gate supply voltage for undervoltage conditions, tracks the IGBT’s temperature, and reports these health metrics back to the drive’s control unit. This continuous feedback loop enables the drive to adjust its switching strategy or trigger pre-emptive alarms, forming the basis for predictive maintenance of the drive’s power electronics .
