Description
Parameter:
| Main Parameter | Value / Description |
|---|---|

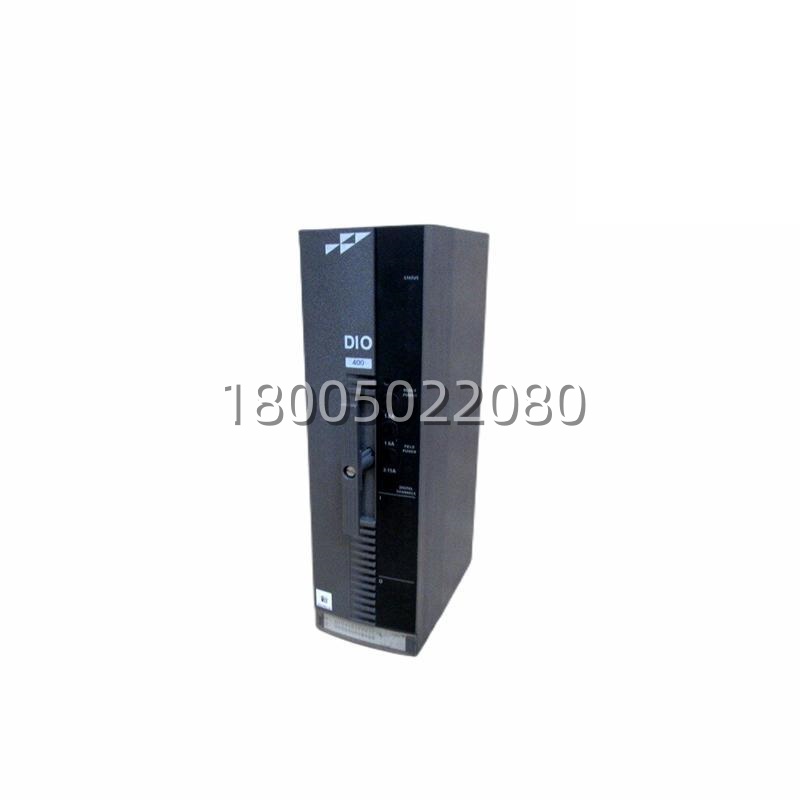

| Product Model | ABB P-HB-DIO-40010000 (DIO-400) |
| Manufacturer | ABB (formerly Bailey Controls) |
| Product Category | Digital I/O Block Module |
| Compatible Systems | Bailey Infi 90, Symphony Harmony DCS |
| Digital Inputs (DI) | 16 channels, isolated |
| DI Voltage Range | 24/48/125 VDC; 120/240 VAC (configurable) |
| Digital Outputs (DO) | 8 channels, isolated |
| DO Type & Rating | Transistor/Relay; 24VDC/250mA, 48VDC/125mA |
| Communication | Hnet (Harmony Network) |
| Power Supply | 24 V DC |
| Power Consumption | ≤ 1.2 W (typical) |
| Operating Temperature | 0 °C to +60 °C |
| Isolation Voltage | 2500 Vrms (channel-to-system) |
| Mounting | DIN Rail or Backplane |
Technical Principles and Innovative Values:
- Innovation Point 1: Intelligent Distributed Processing: Unlike basic I/O cards, the ABB P-HB-DIO-40010000 features an onboard microprocessor. This intelligence enables local signal processing, debouncing, and diagnostics, offloading these tasks from the main controller. This distributed architecture reduces network traffic on the Hnet loop and provides faster local reaction times for critical interlock logic.
- Innovation Point 2: Universal Voltage Acceptance: A key differentiator is its highly flexible input circuitry. The 16 digital input channels can be configured via hardware jumpers to accept a wide range of voltages—from low-level 24VDC to high-level 240VAC. This eliminates the need for external signal conditioners or relay cabinets, simplifying cabinet design and reducing BOM costs for hybrid voltage systems.
- Innovation Point 3: Robust Isolation for Harsh Environments: Designed for process industries, the module incorporates optical isolation and electronic current limiting on all channels. This provides immunity against ground loops and voltage transients common in plants with heavy motor loads, ensuring data integrity and protecting the sensitive DCS backplane from field-side electrical faults.
Application Cases and Industry Value:
- Case 1: Power Plant Burner Management System Upgrade: A Midwest utility was retrofitting the burner control system on a 300MW coal-fired unit. The legacy system lacked sufficient I/O to integrate new flame scanners and damper actuators. The ABB P-HB-DIO-40010000 was selected for its proven reliability in safety-related applications and its ability to fit existing Harmony XLP racks. The project team leveraged its mixed-voltage capability to interface 120VAC actuators directly, avoiding $15k in additional interposing relay panels. The module’s diagnostic LEDs enabled operators to pinpoint faulty burner status signals during startup, reducing boiler trip incidents by 25%.
- Case 2: Pharmaceutical Water-for-Injection (WFI) System: A biotech facility required precise control over its purified water distribution loop. The ABB P-HB-DIO-40010000 was used to monitor sanitary valve feedback (24VDC) and control UV sanitizer status (120VAC). Its compact form factor allowed it to be installed in a local marshalling cabinet near the point of use, minimizing long wire runs that could compromise signal quality. The module’s compliance with GAMP standards and availability of full lifecycle documentation (from ABB’s legacy support program) were critical factors in passing a rigorous FDA audit.
