ABB NDSC-01 Replacement DSU Control Board for Drive Power Sections

Description

Product Overview

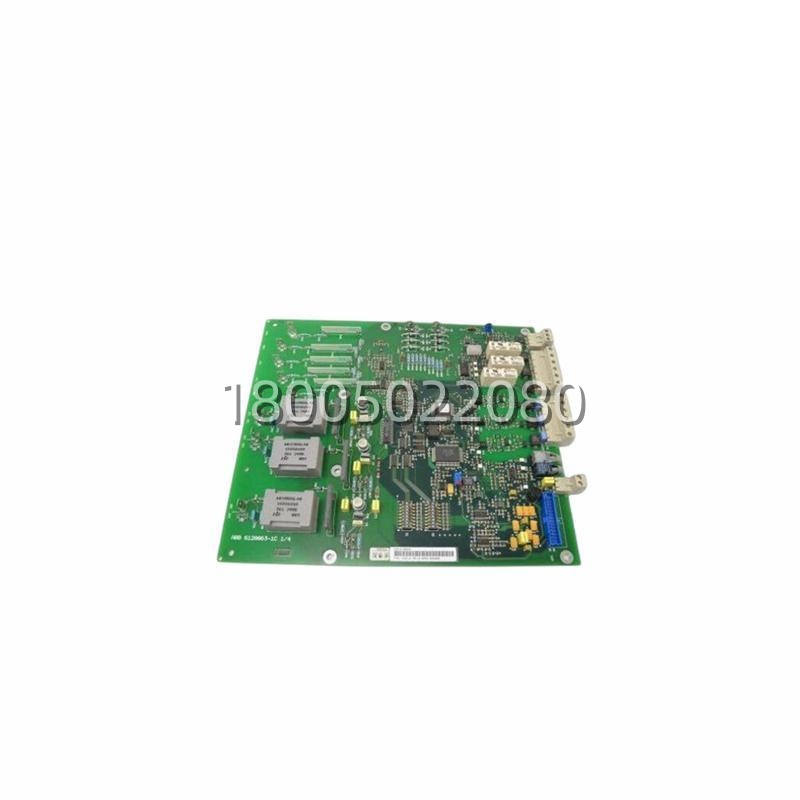

The ABB NDSC-01 is a sophisticated DSU (Diode Supply Unit) control board specifically engineered for ABB’s ACS600 MultiDrive and ACS/ACC 607 drive systems, serving as the intelligent control center for the power section of these high-performance industrial drives. As an integral component of the diode supply unit, the ABB NDSC-01 manages the controlled charging of DC link capacitors, monitors critical electrical parameters, and coordinates the transition between pre-charging and normal diode bridge operation, ensuring the reliable and safe operation of the entire drive system.

The ABB NDSC-01 control board is designed to work in conjunction with the SDCS-POW-1 power supply board, which provides the necessary DC power for the module’s operation. This intelligent controller is equipped with a powerful onboard microprocessor that executes the DSU control program stored in its PROM, performing real-time voltage and current measurements, generating IGBT firing pulses, and managing comprehensive fault monitoring and diagnostics. The ABB NDSC-01 features an extensive array of I/O capabilities, including 3 galvanically isolated digital inputs (24VDC to 230VAC), and 3+1 relay-type digital outputs with 8A contact rating at 250VAC, making it highly versatile for interfacing with external control and monitoring equipment. The board also integrates a DDCS (Direct Digital Communication System) link for seamless communication with higher-level control systems, further extending its capabilities in complex automation networks.

Technical Specifications

Main Features and Advantages

Precision Control for Diode Supply Units: The ABB NDSC-01 is purpose-built to control the entire charging sequence of the DC link capacitors in the diode supply unit. It manages the ramp-up of the DC link voltage to 87% of its nominal value during the pre-charging phase before seamlessly transitioning to normal diode operation. This controlled charging prevents damaging inrush currents and ensures the longevity of both the DC capacitors and the power components. The ABB NDSC-01 achieves this through sophisticated algorithms that adjust the firing angle based on the Uc/Unet ratio, providing a smooth and reliable startup sequence.

Comprehensive Measurement and Monitoring Capabilities: The ABB NDSC-01 is equipped with extensive measurement functionalities that enable precise monitoring of the power section. It measures the AC supply voltage, the DC bus voltage (Uc) using a high-impedance 7 MΩ resistor chain, heatsink temperature via an NTC sensor, and optional current measurement using CTs. The ABB NDSC-01 also provides optional ground fault current measurement, adding an extra layer of protection for personnel and equipment. This wealth of real-time data enables the ABB NDSC-01 to detect abnormal conditions immediately and trigger appropriate alarms or fault responses.

Flexible and Robust I/O Interface: The ABB NDSC-01 offers a versatile interface for connecting to external control systems and field devices. Its three digital inputs support a wide voltage range (24VDC to 230VAC), accommodating both DC and AC control signals from a variety of sources. The outputs are implemented as robust relays with an 8A/250VAC contact rating, capable of directly driving contactors, indicating lamps, or other auxiliary equipment. The isolation between channels (1500VAC test voltage) ensures signal integrity and protects the ABB NDSC-01 from electrical noise and potential faults in the field wiring.

Configurable for Diverse Applications: The ABB NDSC-01 is highly adaptable, with its behavior configured by two 8-way DIP switches (S1 and S2). Switch S1 is used to set crucial parameters such as the nominal AC supply voltage (400V to 690V), the current transformer ratio, and the DC link charging time. Switch S2 defines the node address of the ABB NDSC-01 in a DDCS communication system and enables monitoring of the communication link with the host system. This flexible architecture allows the ABB NDSC-01 to be precisely tailored to the specific requirements of different drive systems and applications.

Application Fields

High-Power AC Drive Systems: The ABB NDSC-01 is a critical component in ABB’s high-power drive systems, specifically the ACS600 MultiDrive and the ACS/ACC 607 series for frame sizes -0760-3, -0930-5, -0900-6 and larger. In these applications, the ABB NDSC-01 manages the diode supply unit that provides the DC bus voltage for the inverter section. The module’s ability to handle a wide range of AC supply voltages, up to 690V, makes it suitable for heavy-duty industrial environments such as steel mills, mining, and large pumping stations where high-power variable speed drives are essential for process control and energy efficiency.

System Modernization and Replacement Projects: As a legacy component, the ABB NDSC-01 is frequently sought after for maintenance and modernization projects in facilities with installed ABB drive systems. The ABB NDSC-01 serves as a direct replacement for aging or failed DSU control boards in existing installations, extending the service life of valuable equipment without requiring a complete drive system overhaul. Its availability as a spare part ensures that operations can continue with minimal downtime.

Industrial Automation and Control Panels: Beyond the drive system itself, the ABB NDSC-01 is used in control panels where its versatile I/O capabilities and communication functions are valuable. Its ability to accept AC and DC control signals and provide relay outputs allows the ABB NDSC-01 to integrate seamlessly with PLCs, operator panels, and other automation equipment, making it a useful component in broader industrial automation projects.
