ABB NDCU-21 63985317B ACS600/ACS800 Inverter Control Board with DriveBus

Description

Product Overview

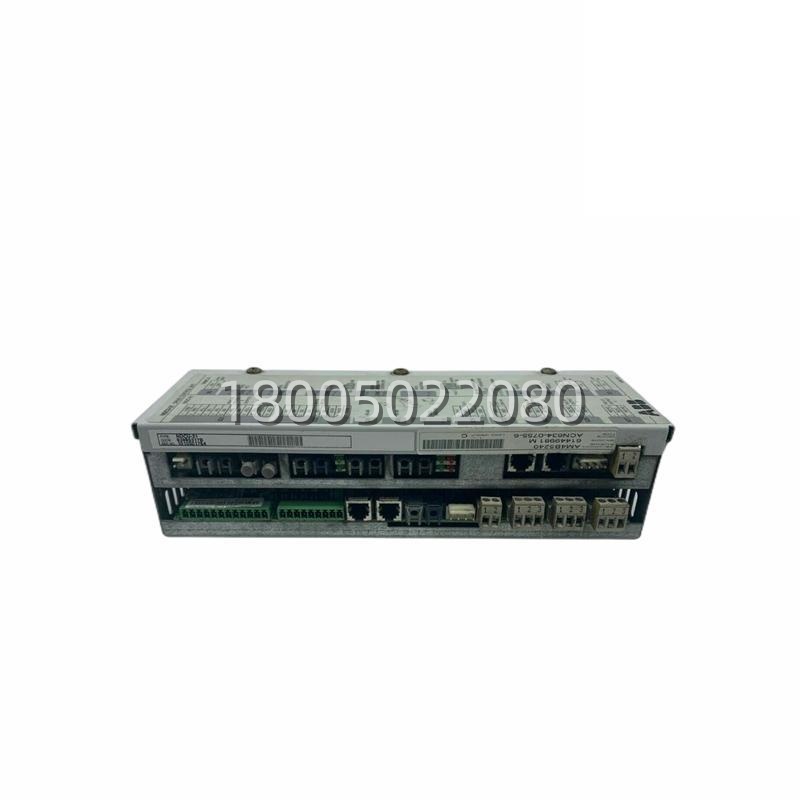

The ABB NDCU-21 63985317B is a sophisticated Drive Control Unit (DCU) designed as the central intelligence for ABB’s ACS800 multi-drive systems, with compatibility extending to parts of the ACS600 drive family . This module serves as the digital brain that orchestrates all drive operations, executing ABB’s proprietary Direct Torque Control (DTC) algorithms with a refresh cycle of under 2 ms to deliver unparalleled motor control precision . The ABB NDCU-21 63985317B integrates the NAMC (Application and Motor Controller) and NIOC (Input/Output) boards into a single compact unit, consolidating both the processing power and the I/O interface for efficient system integration .

The ABB NDCU-21 63985317B is identified by its base model NDCU-21, with the suffix 63985317B representing a specific assembly variant often associated with the kit 3BSE016237R1 (NDCU-21C) . It is normally powered from the inverter power supply board within the drive module but can alternatively be powered from an external 24 V DC supply, offering flexibility for commissioning and diagnostic purposes . A distinctive feature of the ABB NDCU-21 63985317B is its 10 MBd fiber optic DriveBus channel (CH0), which distinguishes it from the NDCU-22 variant that uses a 5 MBd component—a critical difference for ensuring compatibility when an overriding controller is used on Channel CH0 with the ISU supply unit . As a general guideline, the ABB NDCU-21 63985317B is the preferred choice when the supply unit is to be controlled by an Advant Controller (AC) 80, whereas an NDCU-22 is recommended with a fieldbus adapter .

While the ABB NDCU-21 63985317B has been discontinued by the original manufacturer, it remains a highly sought-after component in the aftermarket for maintaining the thousands of ACS800 multi-drive systems still in active operation across heavy industries worldwide . The ABB NDCU-21 63985317B is available through industrial parts suppliers in new-old-stock or tested refurbished condition, enabling facilities to extend the operational life of their critical drive infrastructure while planning long-term migration strategies.

Technical Specifications

Main Features and Advantages

Direct Torque Control (DTC) Algorithm: The ABB NDCU-21 63985317B executes ABB’s industry-leading DTC motor control algorithm, delivering torque response times of under 2 ms and exceptional speed regulation accuracy without the need for an encoder in many applications . This enables precise control of motor speed, torque, and position, significantly enhancing process performance and product quality . The integration of a dedicated motion control coprocessor ensures that even the most demanding control tasks are executed with minimal latency, making the ABB NDCU-21 63985317B ideal for high-performance drive applications such as cranes, extruders, and winders.

Integrated NAMC and NIOC Architecture: The ABB NDCU-21 63985317B consolidates both the application and motor controller (NAMC) and the input/output controller (NIOC) onto a single board, simplifying the drive control architecture and reducing the number of components required . This integration minimizes wiring complexity and potential points of failure, contributing to higher overall system reliability. The compact design of the ABB NDCU-21 63985317B also enables more efficient use of cabinet space, a valuable consideration in dense drive installations.

Comprehensive Local I/O Capability: The ABB NDCU-21 63985317B is equipped with a rich set of on-board I/O, including six programmable digital inputs, two relay outputs, two analog inputs supporting 0–10 V or 4–20 mA signals, two analog outputs (0–20 mA), and a dedicated PTC thermistor input for direct motor temperature monitoring . This extensive local I/O eliminates the need for additional remote I/O modules in many applications, reducing system cost and complexity while providing all the essential signals for drive control and monitoring.

Flexible Communication and Connectivity: The ABB NDCU-21 63985317B offers multiple communication interfaces to suit diverse automation architectures. The fiber optic DriveBus enables high-speed, noise-immune communication with power modules and rectifier units at 10 Mbps . An RS-485 port supports Modbus RTU for integration with PLCs and SCADA systems, while the USB service port provides a convenient connection for commissioning, parameterization, and diagnostics using ABB DriveComposer software . For fieldbus integration, the ABB NDCU-21 63985317B accepts optional NRxx adapter modules, making it compatible with PROFIBUS, DeviceNet, EtherNet/IP, and other industrial networks . This communication versatility ensures that the ABB NDCU-21 63985317B can be seamlessly integrated into both new and existing automation systems.

Built-In Protection and Diagnostics: The ABB NDCU-21 63985317B features comprehensive diagnostic functions that continuously monitor system health, detecting faults such as overcurrent, overvoltage, short circuits, and communication errors . The module’s front-panel LEDs provide visual status indication for rapid on-site troubleshooting. The board also supports fail-safe behavior configuration, ensuring that the drive can be placed in a predetermined safe state during critical faults. The robust electrical isolation (500 V DC) protects the ABB NDCU-21 63985317B from ground loops and transients common in industrial environments, ensuring long-term operational reliability .
