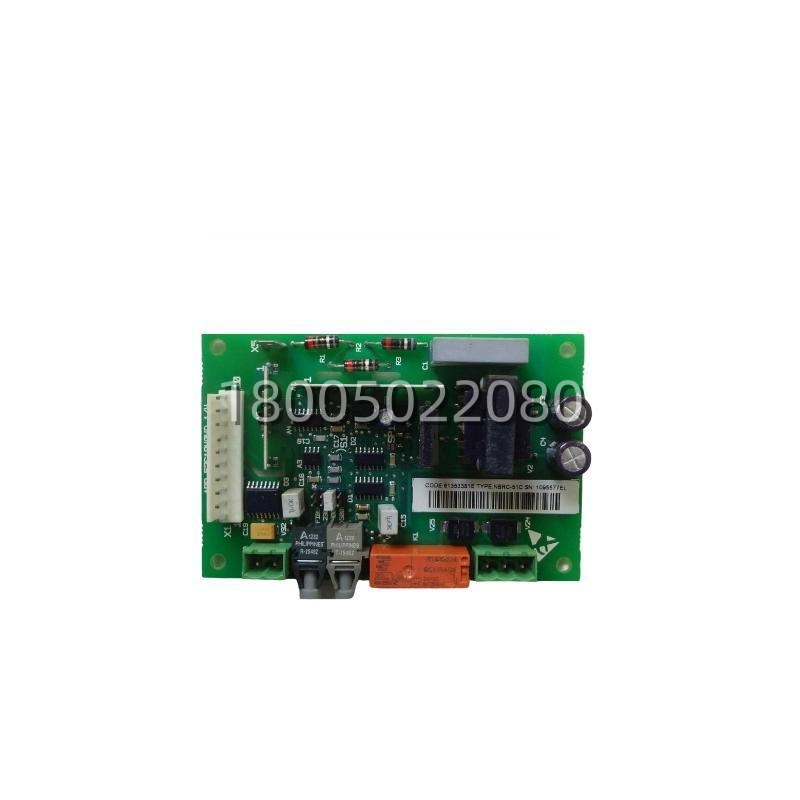

ABB NBRC-51C: Inverter Speed Measuring Board for ACS800 / DCS800 Drive Systems

Description

Application ScenariosA port terminal running a 40-ton grab-ship unloader on ABB ACS800 drives kept seeing speed-feedback “glitches” during heavy lift deceleration: the motor-mounted 1024 PPR TTL encoder was clean in static tests, but every time the yard’s 3 MW rectifier-fed ore unloader started up two bays over, the ABB NBRC-51C​ on the ship-unloader’s ACS800 would throw a “Encoder Signal Loss” and trip the drive into torque-limit, dropping the grab mid-air. Root cause: the original installer had landed the encoder on a generic pulse-card without isolation, and the rectifier’s 500 V/µs dV/dt was coupling 300–400 mV common-mode onto the 120 m encoder cable. The retrofit swapped in the ABB NBRC-51C—its optical isolation (≥ 1500 V AC test) and ABB-proprietary input filtering killed the rectifier hash, and the onboard 5 V regulated encoder supply (current-limited 200 mA) let them ditch the external encoder PSU that had been rattling on the DIN rail. Post-cutover, the ship-unloader ran 72 consecutive 10-hour shifts without a single encoder-related trip, even with both rectifier-fed unloaders on the same bus. The electrician’s verdict: “The NBRC-51C​ doesn’t just measure speed—it survives the yard.”

Parameter

Technical Principles and Innovative Values

• Innovation Point 1: Dual-Standard TTL/HTL Input with Programmable Encoder Supply.​ The ABB NBRC-51C​ auto-adapts via drive parameter setting to either differential TTL (5 V, RS-422) or single-ended HTL (12–24 V PNP) encoder signals, and can power the encoder directly from its onboard current-limited regulator (5 / 12 / 24 V selectable, ~200 mA). This eliminates the external encoder PSU and simplifies wiring whether you’re landing a modern 5 V quadrature encoder or a legacy 24 V PNP pulse tacho—common in plants where the motor was swapped but the drive stayed.
• Innovation Point 2: Quadrature Decoding with Direction Sense & Z-Index Validation.​ The ABB NBRC-51C​ decodes A/B phase lead/lag to determine rotation direction and accumulates pulse count into the drive’s position register. The Z (index) pulse is validated and can serve as homing or commutation reference in positioning applications—all processed with microsecond-level latency relative to the RMIO’s sampling cycle, so the closed-loop vector torque/speed loop sees fresh speed data every drive interrupt.
• Innovation Point 3: Optical Isolation + ABB-Proprietary Filtering, Auto-Recognized by Firmware.​ All pulse inputs are galvanically isolated from the drive’s low-voltage logic, protecting against ground loops and the dV/dt hash that rides long encoder cables in drive-heavy yards. On insertion into a compatible ACS800 with AMCB/RDCO, the ABB NBRC-51C​ is recognized automatically by the drive firmware—no extra commissioning tool, no DIP straps. The front LEDs (PWR, A, B, Z) let a technician confirm “signal locked” without opening the drive parameter tree.

Application Cases and Industry ValueA steel-service center running a 6-high tension leveller on ABB DCS800 DC drives used the ABB NBRC-51C​ on each of four bridle-motors to close the speed loop on 2048 PPR HTL encoders (legacy 24 V PNP—the customer never upgraded the motor feedback when the drives were retrofitted from SIMADYN D to DCS800). The leveller’s pain was “thread-speed hunting”: during coil threading at 15 m/min, the bridle-speed feedback would jitter ±0.3 m/min because the old third-party pulse-card had no input filtering and the DC drive’s own 6-pulse bridge was injecting 300 Hz ripple onto the 0 V rail. After swapping to the ABB NBRC-51C—programmed for 24 V encoder supply, HTL single-ended, 200 kHz headroom—the speed-feedback jitter collapsed to ±0.05 m/min, and the leveller could hold thread tension within ±2% instead of ±6%. The plant measured a 12% reduction in off-gauge tail-end scrap and credited the NBRC-51C‘s isolation + filtering as the differentiator versus the generic card it replaced. Maintenance noted the A/B/Z LEDs saved two hours of “is it the encoder or the card?” diagnostics during the first post-retrofit coil-thread trial.Related Product Combination SolutionsBuild or sustain an ACS800/DCS800 drive node around the ABB NBRC-51C​ with these companion items:

• ABB AMCB-01​ – AMCB-0x option adapter (Advanced Module Carrier Board), the mezzanine that the NBRC-51C​ plugs into inside an ACS800; verify your drive’s AMCB revision before ordering.
• ABB RDCO-01 / RDCO-02 / RDCO-03​ – RDCO-x option adapter (RDC-x carrier), alternative mounting point for the NBRC-51C​ on certain ACS800/DCS800 builds; check drive HW manual for which adapter your cabinet uses.
• ABB RMIO-01​ – RMIO main I/O and control board, the ACS800’s “brain” that receives the speed/position data from the NBRC-51C​ over the internal option-bus.
• ABB NBRC-51​ – Earlier-generation speed measuring board (N-series), used on older ACS600 builds; the NBRC-51C​ is the ACS800/DCS800-native successor—do NOT blindly cross-substitute between ACS600 Nxx and ACS800 NBRC without checking firmware/Drive COMPOSITE manual.
• ABB DCS800-S02​ – DCS800 6-pulse thyristor stack, common host for the NBRC-51C​ in DC-drive bridle/winch applications.
• ABB ACS800-104​ – ACS800 into DCS800 hybrid cabinet builds where the NBRC-51C​ lands on the ACS800’s AMCB but talks to a DCS800 field supply—verify option-bus bridging in the cabinet dwg.
• ABB Encoder cable KITS (e.g., ABB 3AFE…)​ – Screened twin-pair + power triad for TTL/HTL encoder runs; the NBRC-51C‘s isolation helps, but a properly screened cable (shield grounded at one end, typically drive-end) is still mandatory beyond 50 m.
