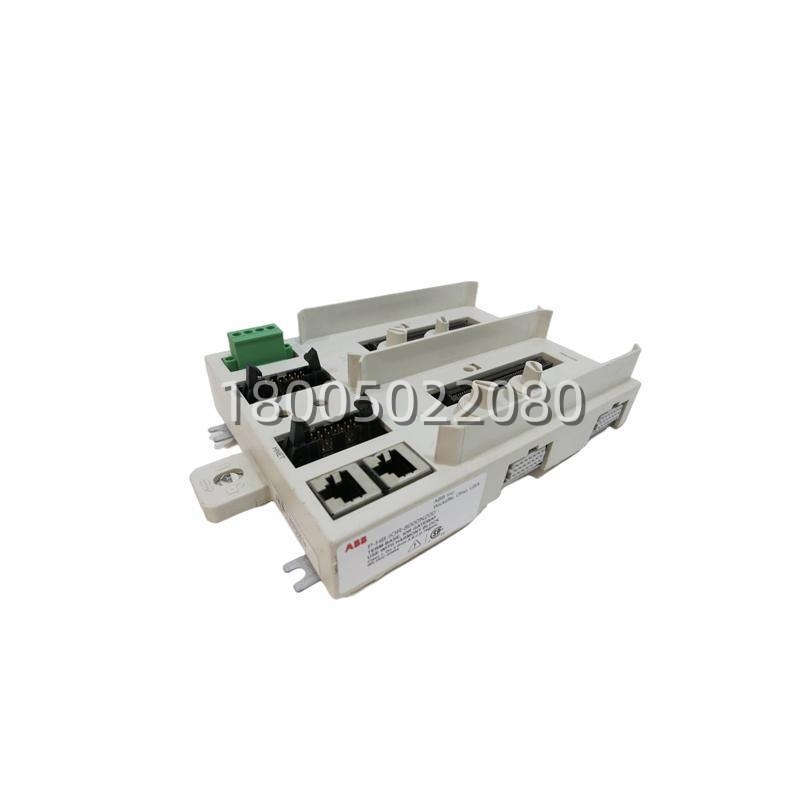

ABB Harmony S800 I/O Gateway Interface Base Module P-HB-IOR-8000N200

Description:The ABB P-HB-IOR-8000N200 is not a gateway module itself, but the essential mounting base (terminal unit) that provides mechanical mounting, electrical power distribution, and bus connectivity for ABB’s Harmony S800 I/O gateway modules (such as CI840, CI854, CI860). It serves as the foundational interface between the DCS/PLC controller’s Harmony bus and the distributed S800 I/O modules, enabling high-speed data exchange and power delivery in ABB Symphony, INFI 90, and 800xA control systems.Application Scenarios:In a power plant’s DCS upgrade project, engineers need to integrate a new S800 remote I/O station into an existing Harmony network. The P-HB-IOR-8000N200 is first mounted on the 19-inch cabinet rail. A CI854 gateway module is then plugged into it, automatically connecting to the backplane bus. This base unit provides the critical “plug-and-play” interface, routing control signals from the network to the downstream I/O modules while supplying stable 24V DC power, ensuring the entire remote station communicates seamlessly with the central controller without custom wiring.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Parameter:

Main Parameters	Value/Description
Product Model	ABB P-HB-IOR-8000N200
Manufacturer	ABB
Product Category	I/O Gateway Mounting Base / Terminal Base Unit
Compatible Gateway Modules	CI840, CI854, CI860, etc. (Harmony S800 Series)
Compatible Systems	ABB Symphony, INFI 90, Harmony, 800xA, AC 800M
Bus Communication	Harmony Bus (HNET), up to 10 Mbps
I/O Expansion Capacity	Supports connection of up to 8 S800 I/O modules
Isolation Voltage	≥ 2.5 kV AC (Bus to Field)
Terminal Type	Spring-type / Screw-type combo terminal block
Mounting	19-inch Rack Mount (Standard Cabinet)
Dimensions (W×H×D)	195.58 mm × 243.84 mm × 78.74 mm
Weight	Approx. 0.44 kg – 0.66 kg
Operating Temperature	–25 ℃ to +60 ℃
Certifications	CE, UL, IEC, RoHS

Key Parameter Notes:

Gateway Dependency: This unit is a passive base; it requires a separate gateway module (e.g., CI854) to be inserted to function as a communication node.
High-Speed Backplane: The built-in Harmony bus interface allows for fast data transfer between the controller and I/O modules, crucial for real-time process control.
Robust Connectivity: The combination of spring and screw terminals facilitates both quick installation and high-vibration resistance in industrial environments.

Technical Principles and Innovative Values:Innovation Point 1: The P-HB-IOR-8000N200 employs a Modular Hot-Swap Backplane Architecture. The base is designed with a robust connector system that allows gateway modules to be inserted and removed without disconnecting the field wiring or shutting down the entire bus. This “hot-swappable” design drastically reduces maintenance downtime, as faulty gateways can be replaced in minutes while the rest of the I/O rack continues operating.Innovation Point 2: Integrated Signal and Power Conditioning. Unlike simple terminal blocks, this base unit incorporates advanced filtering and isolation circuits. It provides a clean 24V DC power rail to the gateway and I/O modules while maintaining a high isolation barrier (≥2.5 kV AC) between the sensitive control bus and the noisy field side. This prevents ground loops and electromagnetic interference (EMI) from corrupting critical process data.Innovation Point 3: Universal I/O Expansion Hub. The base acts as a central hub, capable of supporting up to 8 additional S800 I/O modules (AI, DI, AO, DO) via its internal bus. This daisy-chain capability allows for a highly dense and distributed I/O configuration right at the field level, reducing the need for long, costly cable runs back to the main control room.
