Description

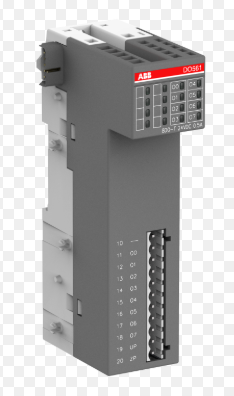

Introduction to the core functions and technical characteristics of ABB DO561 1TNE968902R201 load digital controller:

1.Core functions

Digital output control:As an extension module of the AC500 eCo series compact PLC,it provides transistor output interfaces and supports precise switch control of industrial equipment such as motors,valves,and sensors.

High reliability:Integrated overvoltage and overcurrent protection functions,suitable for extreme environments such as high temperature,vibration,and humidity,and suitable for complex working conditions such as power generation,chemical industry,and water treatment.

Protocol compatibility:Supports Modbus®Communication protocol can seamlessly integrate with upper computer,PLC or other industrial control systems to achieve data exchange and remote monitoring.

2.Technical characteristics

Module specifications:

Output channel:Each module provides 8 independent transistor outputs,supporting load driving capabilities of 24V DC/5A or 110V AC/2A.

Response speed:The signal processing delay is less than 1ms,meeting the requirements of high-speed industrial control.

Environmental adaptability:

The working temperature range is-25°C to+60°C,with a protection level of IP20,suitable for industrial installation conditions.

Safety design:

Built in short-circuit protection and thermal shutdown mechanism to prevent hardware damage caused by overload or malfunction.

3.Application scenarios

Factory automation:controlling the start stop and status switching of equipment such as robotic arms,conveyors,pneumatic actuators,etc.in the production line.

Energy field:used for load distribution,valve opening adjustment,and safety interlock control of generator sets.

Building and Infrastructure:Managing the digital signal output of lighting systems,air conditioning units,and security equipment in smart buildings.

4.Compatibility and Expansion

System integration:It can be flexibly combined with other modules of ABB AC500 series(such as analog input/output,communication interface)to build small and medium-sized automation control stations.

Software support:Implement logical configuration through ABB AC800M programming software,supporting programming methods such as ladder diagrams and functional block diagrams.
