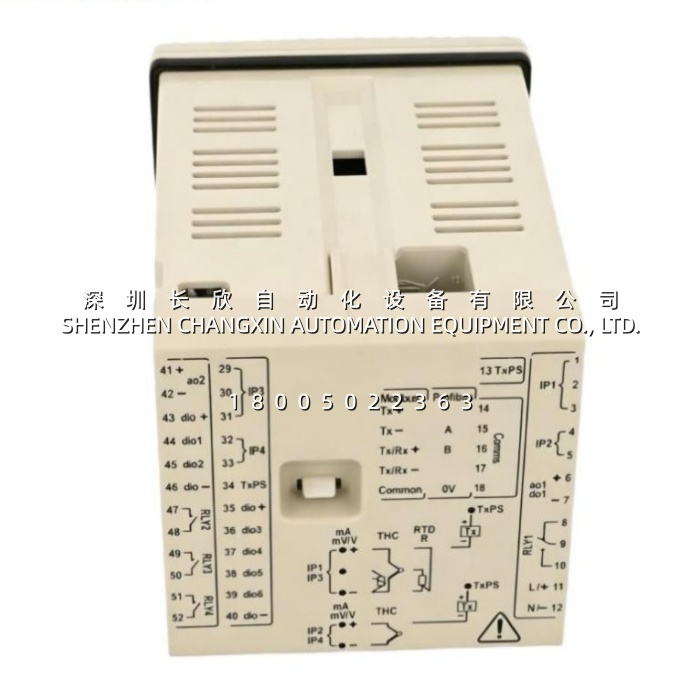

Description
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB CM30 |
| Manufacturer | ABB |
| Product Type | Universal PID Process Controller, 1/4 DIN |
| Display | Full-color TFT, 9 cm (3.5 in) |
| Analog Inputs | 2 universal process inputs (1 standard, 1 optional) |
| Analog Outputs | 2 control/retransmission outputs (1 standard, 1 optional) |
| Relay Outputs | 4 total (1 standard, 3 optional) |
| Digital I/O | 6 total (2 standard, 4 optional) |
| Power Supply | 100–240 V AC ±10% or 10–36 V DC (optional) |
| Power Consumption | 10 W maximum |
| Front Panel Protection | IP66 / NEMA 4X |
| Rear Panel Protection | IP20 |
| Dimensions (H × W × D behind panel) | 97 mm × 97 mm × 121 mm |
| Weight | 0.5 kg (1.1 lb) |
| Operating Environment | Industrial EMC environment per EC Directive 89/336/EEC |
| Communication Options | MODBUS RTU (RS485), Ethernet (MODBUS TCP) |
| Control Functions | PID, cascade, feed-forward, ratio, predictive PI, adaptive |
| Application Templates | 20 preconfigured control strategies |
Main Features and Advantages
Scalable Functionality for Simple and Advanced Applications: The ABB CM30 is not a fixed-function controller. Its hardware and software can be specified to match the application, with optional boards adding analog outputs, relays, digital I/O, and communication interfaces as needed . This scalability means a facility can standardize on the ABB CM30 across multiple control loops—using basic functionality for simple temperature loops and extended functionality for cascade or ratio control—without maintaining different controller models for each application type.
Predictive PI Control for Deadtime-Dominant Processes: Many process control loops, particularly pH dosing and chemical neutralization, exhibit significant deadtime between control action and measured response. Standard PID control struggles with such processes, often oscillating or responding sluggishly. The ABB CM30 offers an optional predictive PI control function based on the Smith Predictor structure, but with a key simplification: two of the process model parameters are determined automatically, leaving only three parameters to tune . This makes deadtime compensation accessible to technicians who are not control specialists, improving stability in pH control, effluent treatment, and similar applications.

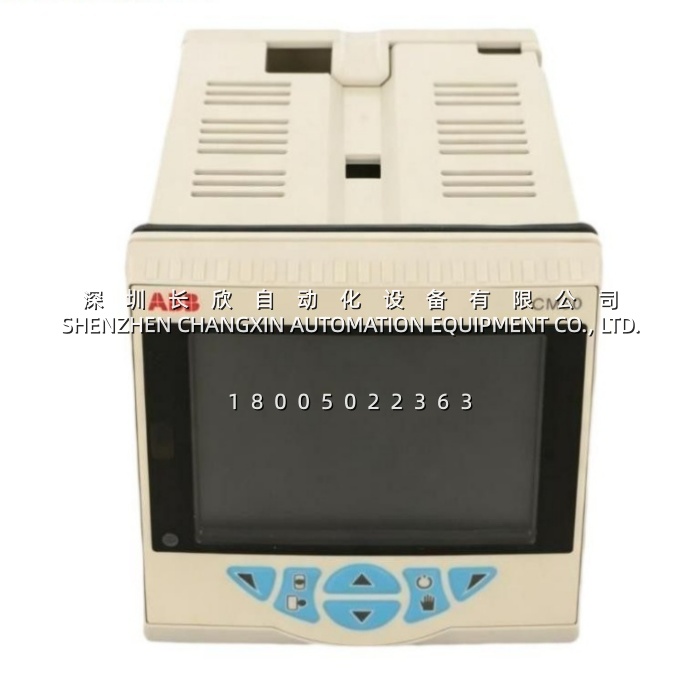

Full-Color Display with Trending and Diagnostics: The ABB CM30’s TFT display presents process values, alarm status, and diagnostic messages in full text, avoiding the cryptic abbreviations common on segment-display controllers. The trend screen plots two analog values over time, allowing operators to compare process behavior against setpoint during commissioning and routine operation . The diagnostic status bar and diagnostic view provide clear indications of instrument health, helping maintenance staff distinguish between process upsets and controller faults.
Application Field
The ABB CM30 is deployed across a wide range of process industries where single-loop or dual-loop PID control is required with a panel-mount footprint. In thermal processing, the ABB CM30 supports profile control functions for applications such as commercial sterilization and canning, where temperature must follow a defined ramp-and-hold program . The controller’s guaranteed ramp/soak feature allows engineers to define tolerance bands around the profile; if the process variable deviates beyond these limits, the program pauses until the process recovers, preventing premature advancement through critical thermal stages.
Water and wastewater treatment represents another significant application area. The ABB CM30 is used for pH neutralization and chemical dosing control, where its predictive PI control option addresses the deadtime inherent in chemical reaction and mixing processes . The controller’s IP66/NEMA 4X front panel allows installation in areas subject to washdown, and the MODBUS communication option enables integration with plant-wide SCADA systems for regulatory reporting and compliance documentation.
In chemical, food and beverage, and pharmaceutical processing, the ABB CM30 handles temperature, pressure, flow, and level loops with equal facility. The dual-loop capability allows a single controller to manage two independent PID loops, reducing panel space and wiring compared with two separate controllers . Facilities that standardize on the ControlMaster platform can use the same configuration software and spare parts inventory across the CM10, CM30, and CM50 models, simplifying maintenance and reducing training requirements.
