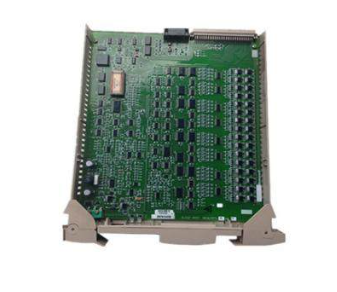

ABB ARCOL 0338

Description

ABB ARCOL 0338

Product Introduction

product overview

Model:ARCOL 0338

Brand:ABB

Type:Control card module

Series:Industrial Automation Control Module

The model is a control card module designed by ABB specifically for industrial automation systems,integrating multi protocol communication and high reliability processing capabilities,suitable for scenarios such as distributed control systems(DCS),programmable logic controllers(PLC),and industrial robots.Its modular architecture supports flexible expansion,adapts to harsh industrial environments,and meets real-time data processing and device coordination requirements.

Main features and advantages

High performance data processing

The processing speed reaches 15 Hz,supporting 2 MB program capacity and 1 MB data storage,and efficiently running complex control logic.

Built in hard PLC function,combined with LD instruction processor,achieves precise logic control and fast response.

Multi protocol compatibility

Supports TFT/LED display screens and open architecture,compatible with industrial communication protocols such as Modbus and Profibus,and compatible with multiple brands of controllers.

Provide remote access and local communication extension options to support interconnection needs in Industrial Internet of Things(IIoT)scenarios.

Environmental adaptability and durability

Adopting die cast aluminum shell,the protection level is not clearly marked(to be inferred based on the application scenario),suitable for humid and dusty environments.

The working temperature range is-30°C to+70°C,with a humidity tolerance of 95%,ensuring long-term stable operation.

Flexible installation and expansion

Modular design,supporting control room installation,compatible with standard rails or customized layouts.

It can work together with other ABB series modules(such as DSQC series robot control cards)to build a distributed control system.

technical specifications

Parameter specifications

Working voltage 220 V AC

Processing speed 15 Hz

Program capacity 2 MB

Data capacity 1 MB

Output frequency 30 Hz

Weight 1.2 kg

Certification Standard UL Certification

application area

industrial automation control

Integrated into DCS or PLC systems,responsible for logical operations,signal acquisition,and equipment coordination,suitable for industries such as power,chemical,and metallurgy.

Robot Control

As an industrial robot control card,it is used in conjunction with ABB robot bodies(such as the 5SHY/5SHX series)to achieve precise motion control.

Human Machine Interface(HMI)Extension

Linked with ABB Panel 800 series touch screens,it supports high-resolution graphic display and multi touch interaction.

Related products

ABB DSQC 652

Industrial robot digital I/O module collaborates with ARCOL 0338 to achieve signal interaction between robot actions and external devices.

ABB PM 645B

The DCS system power module provides stable power supply for ARCOL 0338,ensuring the reliability of the control system.

ABB Panel 887H

Durable touch screen,linked with ARCOL 0338 through multi protocol connection,achieving a visual operation interface.
