Description
Application Scenarios:
In a Taiyuan-based steel mill, the existing ABB Advant OCS system required a control system upgrade to handle increased production complexity and larger recipe data. The PM510V16 modules were deployed in the AC 450 controllers managing the rolling mill stands. The 16 MB memory capacity allowed for the storage of extensive historical data buffers and complex sequential control logic, which was critical for tracking product batches and ensuring precise temperature control. The modules’ compatibility with the existing MB300 and AF100 communication buses enabled seamless integration without rewiring the entire plant, resulting in a 20% reduction in system scan time and improved mill synchronization.
Parameter:
| Main Parameters | Value/Description |
|---|---|

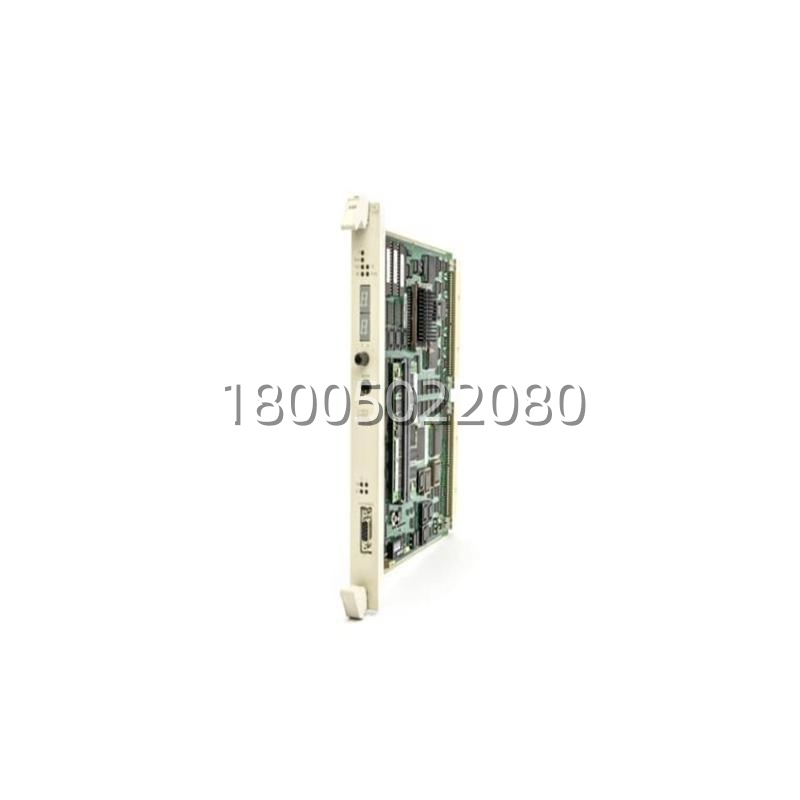

| Product Model | PM510V16 |
| Ordering Number | 3BSE008358R1 |
| Manufacturer | ABB |
| Product Category | Processor Module (CPU) |
| Compatible Systems | Advant Controller 400 (AC 410/450), Freelance DCS |
| Total Memory | 16 MByte (Dynamic RAM) |
| Memory Configuration | 2 x SIMM (3BSC120004E6) |
| Memory Flexibility | Configurable down to 8 MB via hardware switches |
| Processor Architecture | 32-bit RISC |
| Communication Buses | AF100, MB300 |
| Operating Temperature | -20°C to +60°C (up to +70°C in some specs) |
| Power Supply | 24 V DC (via backplane) |
| Power Consumption | < 10 W (typical) |
| Dimensions (HxWxD) | 22.5 mm x 261 mm x 477 mm |
| Weight | 0.875 kg |
| Mounting | Euro-card format (subrack) |
| Redundancy Support | Yes (when configured in pairs) |
| Status | Industrial-grade, long-life cycle |
