Description
Technical Specifications

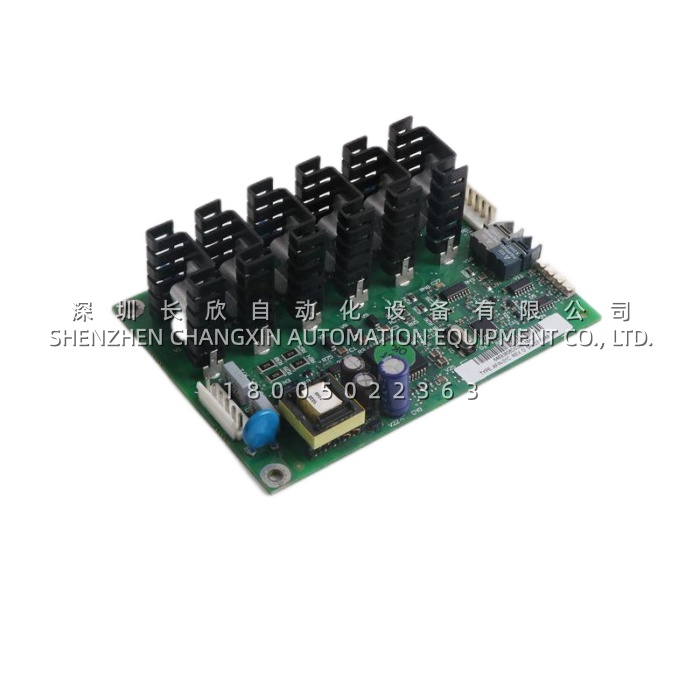

| Parameter Name | Value |
|---|---|
| Product Model | ABB 89NU04B-E GKWE853000R0200 |
| Manufacturer | ABB (Sweden) |
| Product Type | Remote Bus Coupling Module / Coupling Module |
| System Compatibility | ABB Procontrol P14, Advant OCS (Master SW) |
| Core Function | Station bus signal isolation and extension |
| Hardware Version | B; Software Version: E |
| Communication Bus | Procontrol P14 Station Bus (10 Mbps) |
| Remote Bus Speed | 5 Mbps |
| Segment-to-Segment Isolation | 1500V DC to 2500V DC (optical isolation) |
| Maximum Cable Length | ≤1200 m per segment (standard bus cable) |
| Signal Delay | ≤100 ns (typical) |
| Processor | 32-bit independent CPU |
| Configuration Storage | Non-volatile EEPROM |
| Supply Voltage | 24V DC (verify per system drawings; some sources indicate passive operation) |
| Power Consumption | Typical 3.0W; Maximum 5.2W |
| Operating Temperature | 0°C to +70°C (some sources: -20°C to +70°C) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions | Approx. 20 × 258 × 262 mm (6U standard slot) |
| Weight | Approx. 0.54 kg |
| Installation | DIN 41612 backplane slot in Procontrol P14 cabinet |
| Protection Rating | IP20 (cabinet installation only) |
| Safety Certification | SIL2/SIL3 (IEC 61508/IEC 61511), CE, UL |
Main Features and Advantages
Exceptional Galvanic Isolation for Ground Loop Elimination:
The ABB 89NU04B-E provides 1500V DC to 2500V DC segment-to-segment optical isolation, a critical feature for long-distance communication between cabinets . In large industrial facilities, different control cabinets often have varying ground potentials, creating ground loops that introduce noise or even damage interface circuits. The ABB GKWE853000R0200 breaks this electrical path, allowing signals to pass while blocking disruptive currents. Field experience shows this isolation capability resolves persistent communication issues that may otherwise require days of troubleshooting .
Independent Processing and Redundancy Support:
The ABB 89NU04B-E is equipped with a dedicated 32-bit CPU that handles protocol conversion and redundancy switching independently of the main controller . This ensures bus communication remains stable even under heavy CPU loads. The module supports dual hot-standby configurations and dual-bus redundancy; when a primary module fails, the secondary automatically takes over within milliseconds, maintaining uninterrupted system operation . This design is particularly valuable in power plants and chemical facilities where unplanned downtime is unacceptable.
Advanced Diagnostics and Configuration:
The ABB GKWE853000R0200 features a front-facing 9-pole X1 connector for connecting a terminal (VT100 or higher) or a PC running terminal emulation software . This interface provides direct access to system configuration, diagnostic logs, and real-time monitoring of telegram transfers to the PROCONTROL system . Panel LEDs (ST for RUN, SG for Fault, TS for Transmission, QF for Bus Error) offer quick visual status checks, significantly simplifying field troubleshooting .
