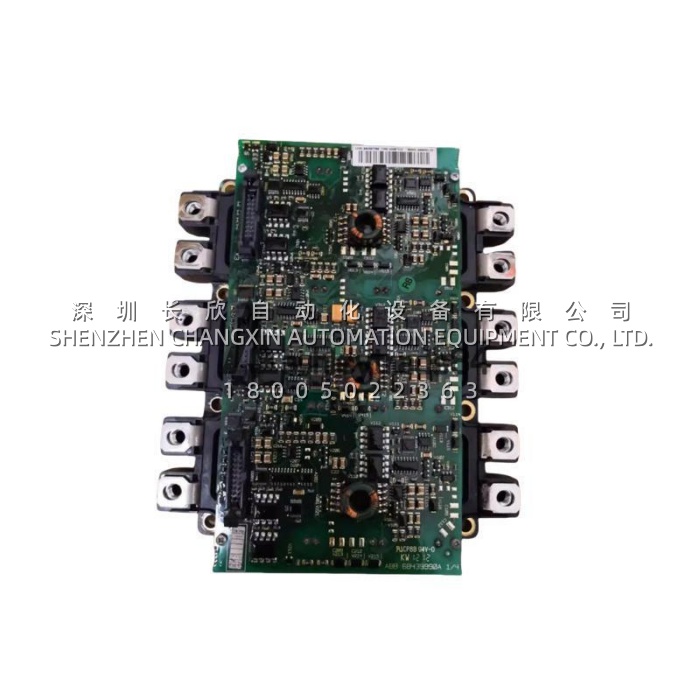

Description
Application Scenarios
In a steel rolling mill in northern China, the main drive of a roughing stand was repeatedly tripped by unexpected IGBT failures. The root cause was traced to a generic third-party driver board that could not reliably execute desaturation detection under high dV/dt conditions. After replacing the assembly with the genuine ABB 6MBI225U-120 / AGDR-71C, the microsecond-level short-circuit response and active Miller clamp eliminated false trips. Over the following 14 months, unplanned downtime for the power unit dropped to zero, saving the plant an estimated 180 hours of lost production.Stories like this are typical wherever AGDR-71C is deployed: mining hoists, marine electric propulsion, large-scale compressor VFDs and industrial extruders all rely on its ability to keep the IGBT module alive even when the load throws its worst transients at the inverter.
Parameters

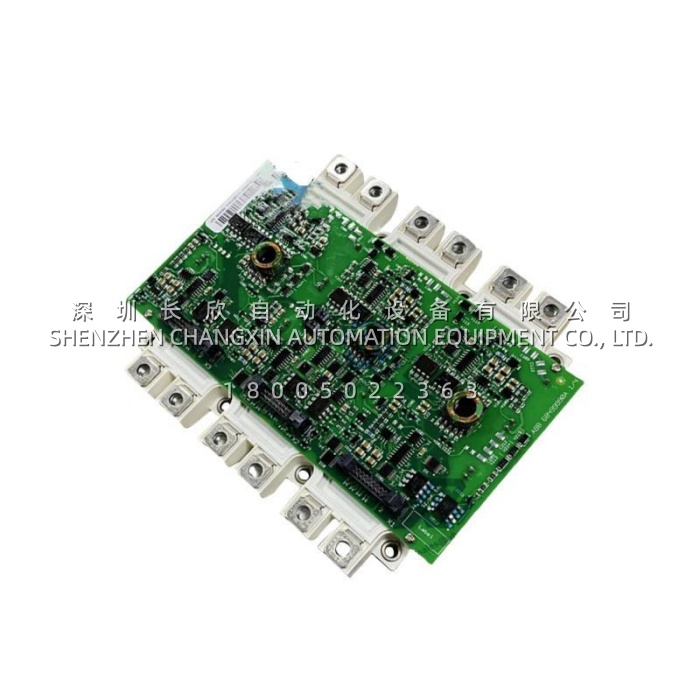

| Main Parameter | Value / Description |
|---|---|
| Product Model | 6MBI225U-120 (IGBT) + AGDR-71C / 68561906A (Driver) |
| Manufacturer | ABB (driver board) + Fuji Electric (IGBT module) |
| Product Category | IGBT Power Module & Gate Driver Board / Inverter Trigger Drive Plate |
| IGBT Blocking Voltage VCES | 1200 V – supports 400 V-class inverter dc link with ample margin |
| Rated Collector Current IC | 225 A @ Tc=80 °C (300 A @ 25 °C) |
| Peak Pulse Current ICM | 600 A (1 ms) – absorbs motor regenerative spikes |
| VCE(sat) Typical | 1.95 V @ IC=225 A, VGE=15 V – low conduction loss |
| Gate Drive Voltage | +15 V (turn-on) / –8 V (turn-off) – prevents parasitic turn-on |
| Driver Protection | DESAT short-circuit detection (6–10 µs), UVLO, soft turn-off, NTC thermal monitoring |
| Isolation Voltage | ≥1500 V AC signal-to-power side (IGBT terminal-to-base: 2500 V AC/min) |
| Communication Interface | Fiber-optic PWM input (to RDCU-15C / RDCU-02C), fiber fault feedback |
| Switching Frequency | 2–6 kHz recommended PWM (up to 10 kHz with adequate cooling) |
| Working Temperature | IGBT junction –40 °C to +150 °C; Driver board 0 °C to +60 °C |
| Mounting Method | Screw-fixed on heat sink (M6 torque 3.5–4.5 N·m; M5 2.5–3.5 N·m) |
| Dimensions / Weight | Driver board ≈150 × 100 mm / ≈0.3 kg |
| Compatible Drives | ABB ACS800 / ACS880 (specific 15–75 kW inverter units and 200–315 kW OEM cabinets) |
Technical Principles and Innovative Values
- Innovation Point 1 – Microsecond Fault Survival: The AGDR-71C integrates Vce desaturation detection that responds to a short-circuit within 6–10 µs, then executes a controlled soft turn-off instead of a hard cut. This alone prevents the majority of catastrophic IGBT explosions in real-world drives.
- Innovation Point 2 – Active Miller Clamping: During high dV/dt switching, parasitic current can falsely turn on an IGBT. The AGDR-71C actively clamps the gate, allowing the 6MBI225U-120 to switch cleanly even under the most aggressive PWM regimes.
- Innovation Point 3 – Fully Isolated Signal Path: With ≥1500 V AC isolation between control and power sides and optical fiber PWM transport, the driver severs ground loops and noise injection paths that normally haunt large inverters.
- Innovation Point 4 – Built-In NTC Intelligence: The driver continuously reads the module’s on-board NTC thermistor (R25 ≈ 5 kΩ, B25/50 ≈ 3375 K), giving the host controller a real thermal picture rather than a guess.
- Innovation Point 5 – Tightly Matched Timing: Because the AGDR-71C is engineered specifically for six-pack modules like the 6MBI225U-120, dead-time and propagation delay are matched channel-to-channel, eliminating the current asymmetry that generic drivers introduce.
Application Cases and Industry Value
In a Middle East desalination plant, three 280 kW high-pressure pump drives were converted from a competitor’s power module to the ABB 6MBI225U-120 / AGDR-71C assembly during a retrofit. Within the first six months, the plant reported a 23 % reduction in drive-related maintenance calls. The facility manager noted that the on-board status LEDs (“RDY”/”FLT”) let technicians diagnose a faulty driver in under five minutes instead of the previous two-hour troubleshooting cycle. Spare part interchangeability across the three identical drives also halved the plant’s inventory holding cost.A European rail workshop, maintaining 400 V-class traction test benches, adopted the AGDR-71C as a standard spare for its ACS880 cabinets. After two years and more than 8,000 operating hours per bench, no driver board has failed in the field – a reliability record the workshop attributes directly to the genuine ABB gate-drive architecture and its integrated protection suite.
