Description
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|

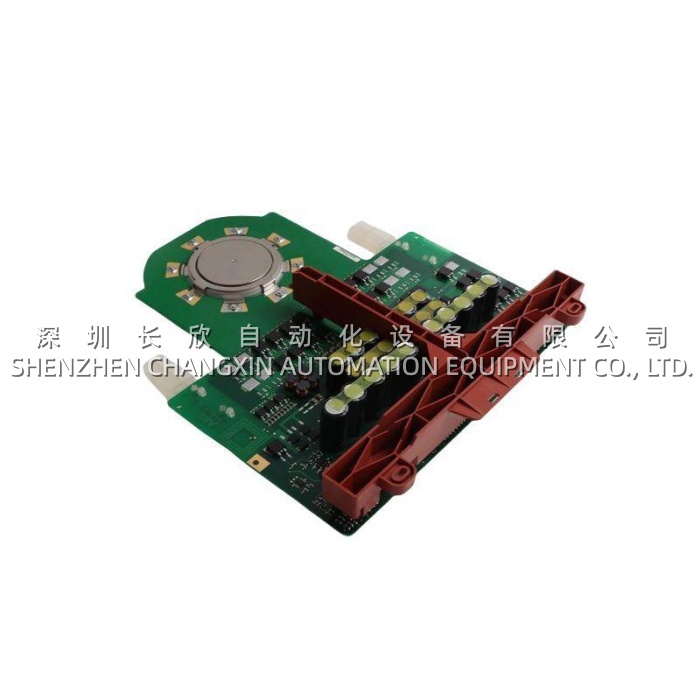

| Product Model | 5SHY3545L0014 with 3BHE019719R0101 |
| Manufacturer | ABB |
| Product Type | IGCT Power Module with Gate Driver Board |
| Series/Platform | 5SHY Series / HiPak™ IGCT for ACS5000/ACS6000 |
| Repetitive Peak Off-State Voltage (VDRM/VRRM) | 4500 V |
| Average On-State Current (IT(AV)) | 3500 A |
| Peak Surge On-State Current (ITSM) | 120 kA (8.3ms) |
| Gate Drive Output Voltage (3BHE019719R0101) | ±15V, ±10A capability |
| Insulation Voltage (Gate Driver) | 10kV AC / 1min |
| Switching Frequency | Up to 1600 Hz |
| Cooling Method | Water-cooled with internal cooling channels |
| Maximum Junction Temperature | -40°C to +125°C |
| Operating Temperature Range | -25°C to +70°C |
| Package Form | Press-pack / Disk-type ceramic housing |
| Mounting Type | Mechanical clamping with specific torque requirements |
| Module Dimensions | Approx. 263mm × 58mm × 28mm |
| Weight | Approx. 2.8kg – 4.3kg |
| Protection Class | IP20 (configurable with IP65 housing) |
Main Features and Advantages
Integrated IGCT Technology:
The ABB 5SHY3545L0014 3BHE019719R0101 leverages the unique advantages of IGCT technology, delivering the low conduction losses of a thyristor alongside the fast switching speed of a transistor. The 5SHY3545L0014 integrates the gate drive circuitry directly with the GCT chip, achieving a low on-state voltage drop of approximately 1.2V – 1.5V that significantly reduces power dissipation and cooling requirements compared to conventional IGBT solutions. The 3BHE019719R0101 gate driver board provides precise, high-current gate pulses with fiber-optic communication for complete electrical isolation, ensuring reliable turn-on and ultra-fast turn-off while integrating advanced protection functions like desaturation detection and active clamping.
Superior Power Handling with High Reliability:
The ABB 5SHY3545L0014 3BHE019719R0101 combination offers exceptional dv/dt and di/dt immunity, ensuring stable operation under high-stress transient conditions. The press-pack, disk-type housing of the 5SHY3545L0014 provides superior thermal and electrical performance with dual-sided water-cooling capability, significantly lowering thermal resistance. This design also provides a fail-open characteristic, enhancing overall system safety and reliability. The module can handle 150% rated current for 60 seconds and 200% for 10 seconds per IEC 60146-1-1 standards, making the ABB 5SHY3545L0014 3BHE019719R0101 exceptionally resilient in overload conditions.
Advanced Diagnostics and Modular Maintenance:
The ABB 5SHY3545L0014 3BHE019719R0101 includes built-in self-diagnostic circuitry with LED status indicators that enable real-time monitoring of module health. When abnormal conditions are detected, the 3BHE019719R0101 generates fault codes that can be transmitted to the host system for rapid remote diagnosis and maintenance planning. The module supports hot-swappable replacement with the DIN rail packaging design, allowing field exchange in under 10 minutes and dramatically reducing costly downtime. This modularity, combined with the MTBF exceeding 150,000 hours, makes the ABB 5SHY3545L0014 3BHE019719R0101 an exceptionally reliable choice for mission-critical industrial applications.
Application Field
The primary application domain for the ABB 5SHY3545L0014 3BHE019719R0101 is in ABB medium-voltage variable frequency drives, including the ACS5000 and ACS6000 series systems rated for 6kV/10kV voltage classes and megawatt-level power output. In the steel and metals industry, the 5SHY3545L0014 3BHE019719R0101 is extensively used in main drives for hot and cold rolling mills, where its superior switching performance and high overcurrent capability provide precise torque and speed control necessary for exacting thickness and surface quality standards. The module’s rapid response time and dynamic load handling ensure smooth operation during demanding rolling sequences, improving both product quality and production efficiency.
The ABB 5SHY3545L0014 3BHE019719R0101 is also a critical component in high-power compressors and pumps for the oil and gas industry, particularly for pipeline transmission and LNG applications. In these often-unattended outdoor installations, the 5SHY3545L0014 delivers long-term reliability that minimizes maintenance interventions and prevents costly downtime. In mining operations, the ABB 5SHY3545L0014 3BHE019719R0101 is found in main drives for mine hoists and conveyor systems, where smooth acceleration and precise stopping control are critical for both operational efficiency and personnel safety.
Beyond industrial drives, the ABB 5SHY3545L0014 3BHE019719R0101 is well-suited for power grid applications, including renewable energy integration in wind and solar farms, high-voltage DC transmission (HVDC), and STATCOM systems for grid stabilization. Its symmetric blocking voltage capability makes the 5SHY3545L0014 3BHE019719R0.
