Description
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|

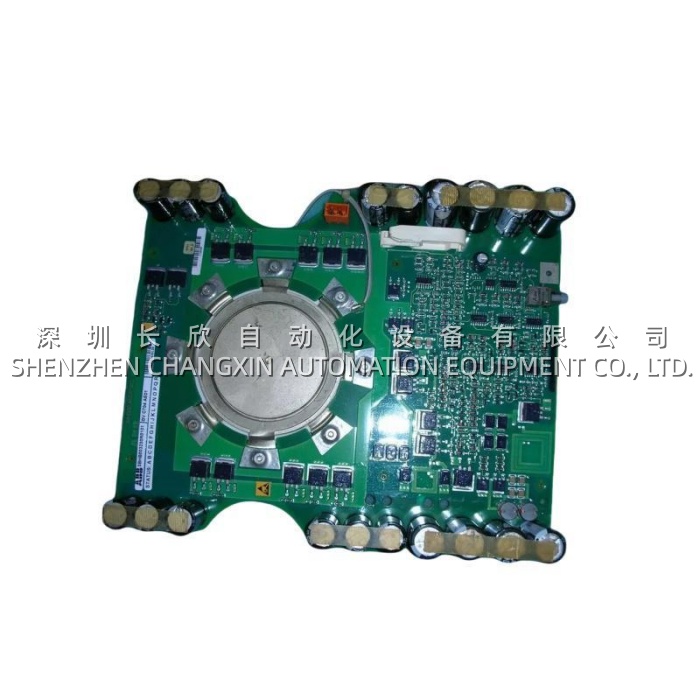

| Product Model | 5SHX14H4502 |
| Manufacturer | ABB |
| Product Type | Reverse Conducting Integrated Gate-Commutated Thyristor (RC-IGCT) |
| Repetitive Peak Off-State Voltage (VDRM / VRRM) | 4500 V |
| Average On-State Current (IT(AV)) | 1400 A |
| RMS On-State Current (IT(RMS)) | Up to 650 A |
| Peak Surge On-State Current (ITSM) | 40 kA |
| Maximum Operating Junction Temperature (Tvj max) | 115°C – 125°C |
| Turn-Off Time (tq) | Typically < 100 µs |
| Switch Frequency Range | 1 – 2 kHz (optimized for medium-frequency systems) |
| Package Form | Press-pack / Disk-type ceramic housing |
| Mounting Type | Mechanical clamping for contact pressure |
| Protection Class | IP65 (module-level) |
Main Features and Advantages
Integrated Gate-Commutated Thyristor Technology:
The ABB 5SHX14H4502 leverages the unique advantages of IGCT technology, delivering the low conduction losses of a thyristor alongside the fast switching speed of a transistor. The ABB 5SHX14H4502 features a monolithic integration of the GCT chip, a reverse-diode, and a dedicated gate drive circuit, which simplifies system design and improves reliability. This integration ensures a low on-state voltage drop of approximately 1.2 V, significantly reducing power dissipation and cooling requirements compared to conventional IGBT solutions. The ABB 5SHX14H4502 is capable of ultra-fast turn-off, enabling high switching frequencies that reduce the size and weight of passive components in the power converter .
Robust and Reliable Design:
Engineered for harsh industrial environments, the ABB 5SHX14H4502 offers exceptional dv/dt and di/dt immunity, ensuring stable operation under high-stress transient conditions. The press-pack, disk-type housing of the ABB 5SHX14H4502 provides superior thermal and electrical performance. Its dual-sided cooling capability significantly lowers thermal resistance, allowing the ABB 5SHX14H4502 to handle substantial overloads without exceeding its maximum junction temperature. This design also provides a fail-open characteristic, enhancing overall system safety and reliability .
Comprehensive System Integration:
The ABB 5SHX14H4502 is designed for seamless integration into ABB’s modular power conversion platforms. When paired with its dedicated GVC drive board, the ABB 5SHX14H4502 forms a complete, intelligent switching unit. The gate drive unit provides fiber-optic communication for electrical isolation, sophisticated diagnostic monitoring, and built-in protection against short circuits, overcurrent, and thermal runaway. This ensures that the ABB 5SHX14H4502 operates safely and reliably, even in the most demanding applications, making fault diagnosis and system maintenance more straightforward .
Application Field
The primary application domain for the ABB 5SHX14H4502 is in medium-voltage, high-power industrial drives where reliability and efficiency are paramount. In the metal industry, the ABB 5SHX14H4502 is extensively used in main drives for hot and cold rolling mills. The superior switching performance and high overcurrent capability of the ABB 5SHX14H4502 provide the precise torque and speed control necessary to ensure exacting thickness and surface quality standards for steel and aluminum products .
The ABB 5SHX14H4502 is also a critical component in high-power compressors for the oil and gas industry, particularly for pipeline transmission and LNG applications. The long-term reliability of the ABB 5SHX14H4502 is essential for these often-unattended outdoor installations, minimizing maintenance interventions and preventing costly downtime. In mining, the ABB 5SHX14H4502 is found in the main drives for mine hoists, where smooth acceleration and precise stopping control are critical for both operational efficiency and the safety of personnel and equipment .
Beyond industrial drives, the ABB 5SHX14H4502 is well-suited for power grid applications, including Static VAR Compensators (STATCOM) and HVDC Light systems. Its symmetric blocking voltage capability makes the ABB 5SHX14H4502 ideal for voltage source converters that require bi-directional power flow. It is also employed in railway traction power systems, where its fast switching reduces harmonic distortion and electromagnetic interference, contributing to more efficient and reliable electric train propulsion .
