Description
Application Scenarios
In a metals processing plant, the control system for a rolling mill drive must reliably monitor numerous limit switches, run permits, and safety interlocks while outputting status and fault signals. The ABB SDCS-IOB-23 3BSE005178R0001 is deployed here as a distributed I/O node. It consolidates these critical digital signals close to the drive cabinet, optically isolating the sensitive controller from the electrically noisy mill environment. This setup prevents ground loops and voltage transients from causing nuisance trips. By handling signal conversion locally and transmitting data via a serial bus, the module reduces long and expensive wiring runs, simplifies troubleshooting with per-channel diagnostics, and ensures the drive system responds accurately to operational commands and safety conditions.
Parameter
| Main Parameters | Value/Description |
|---|---|

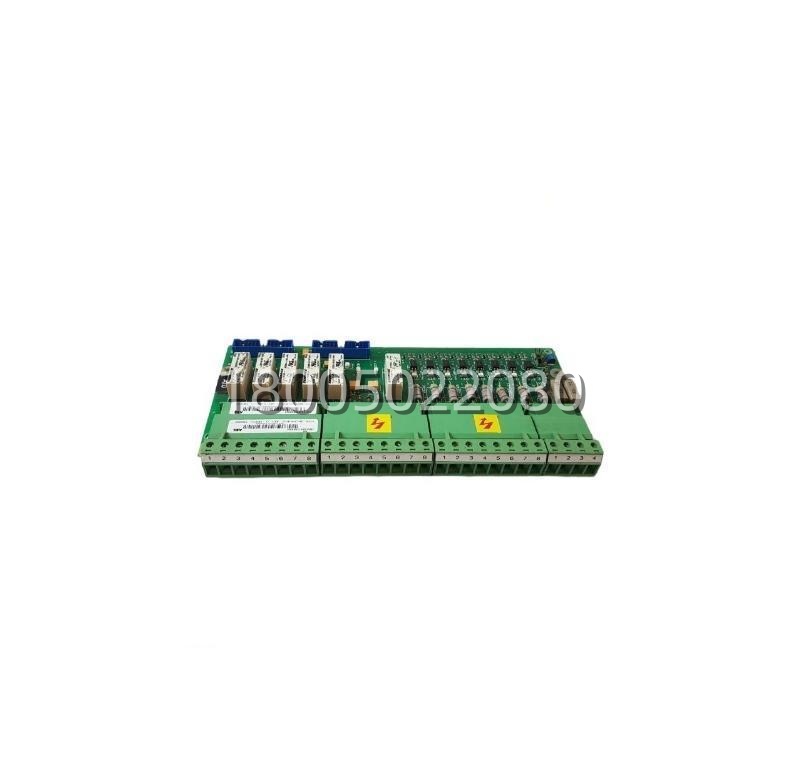

| Product Model | SDCS-IOB-23 3BSE005178R0001 |
| Manufacturer | ABB |
| Product Category | Digital Input/Output Module |
| I/O Configuration | 16 Digital Inputs / 16 Digital Outputs (24V DC) |
| Rated Voltage | 24 VDC |
| Current per Channel | Up to 250 mA (Output) |
| Isolation | Optical Isolation (Channel/Field) |
| Communication | RS-485 / Profibus-DP / DeviceNet (Variant Dependent) |
| Operating Temperature | -20°C to +70°C (Industrial Grade) |
| Installation | DIN Rail Mount |
| Protection Class | IP20 |
| Certifications | CE, RoHS, Industrial EMC Standards |
Technical Principles and Innovative Values
The ABB SDCS-IOB-23 3BSE005178R0001 is engineered for signal integrity and resilience in harsh electrical environments.
- Innovation Point 1: High-Density, Isolated Signal Conditioning. Unlike basic terminal blocks, this module packs 32 I/O points (16-in/16-out) into a compact footprint while maintaining individual optical isolation on each channel. This design prevents noise and voltage spikes from propagating back to the controller, a critical feature when interfacing with inductive loads like contactors and solenoids in drive systems.
- Innovation Point 2: Flexible Fieldbus Integration. The module acts as a protocol-agnostic gateway. Depending on configuration, it can interface with controllers via robust RS-485 serial communication or popular networks like Profibus-DP. This flexibility allows it to be retrofitted into legacy systems or integrated into modern distributed control architectures without changing the field wiring.
- Innovation Point 3: Diagnostic Visibility. Built-in status LEDs and support for remote diagnostics enable rapid fault localization. Technicians can quickly identify a failed output or broken wire without manually checking each terminal, drastically reducing Mean Time To Repair (MTTR) during production downtime.
