ABB 3BHE009319R0001 UNS 2881b-P, V1: High-Performance I/O Module

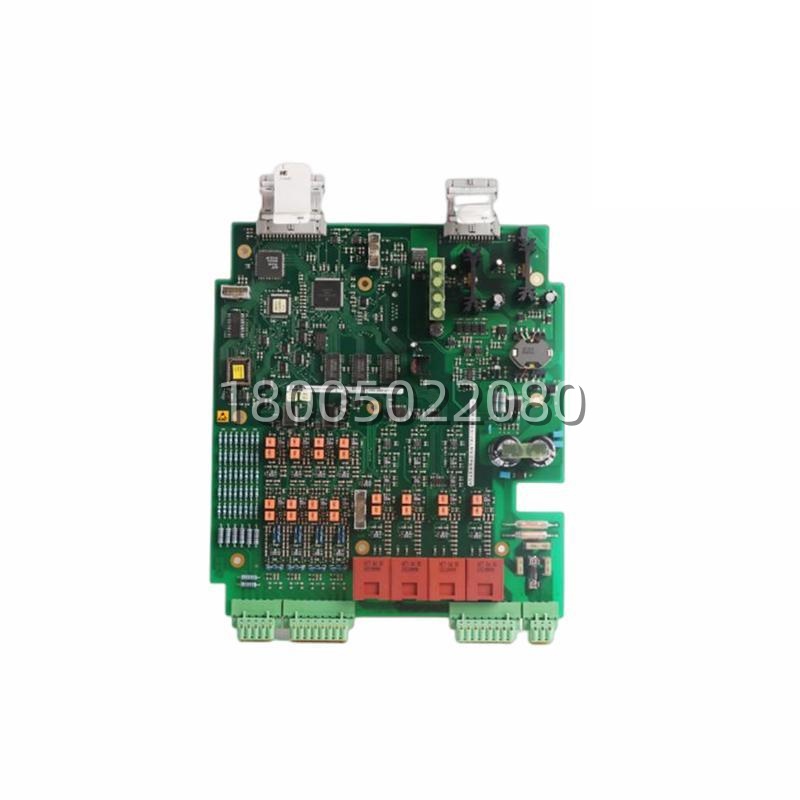

The ABB 3BHE009319R0001 is a specialized Circuit Board (also known as the UNS 2881b-P, V1) designed for industrial automation and control systems. This module serves as a critical Input/Output (I/O) interface, specifically an 8-channel digital input module. It is engineered to monitor and control discrete field signals (such as switch positions, sensor states, or alarm conditions) and integrate them into the central control system (e.g., ABB AC 800M or DCS500 systems).

Featuring robust isolation and communication capabilities, this board ensures reliable data acquisition in noisy industrial environments. It is a vital component for converting physical field conditions into digital logic that the control system can process, making it an essential part of process monitoring and safety interlocking.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Consider a wastewater treatment plant where the automation system must monitor the status of numerous pumps, valves, and level sensors to manage the flow of sewage. The plant relies on a central control room to oversee operations, but the physical machinery is spread across a large area. In this scenario, the ABB 3BHE009319R0001 (UNS 2881b-P, V1) acts as the “eyes and ears” of the control system.

Installed in the control cabinet, this board connects directly to field devices via field wiring. It monitors the status of critical equipment, such as whether a high-level alarm has been triggered in a settling tank or if a pump is running. When a change in state occurs (e.g., a valve closes), the ABB 3BHE009319R0001 instantly converts the field signal into a digital message and transmits it to the ABB PPC907BE (or similar controller). This allows the central system to react immediately, such as shutting down a pump to prevent overflow or starting a backup generator in case of power loss.

Parameter

表格

Technical Principles and Innovative Values

The ABB 3BHE009319R0001 is a foundational element in industrial data acquisition, focusing on reliability and signal integrity.

Innovation Point 1: Channel Isolation for Noise Immunity

Each of the 8 input channels on this board features 500 VDC isolation. This design prevents electrical noise or ground loops from one channel from affecting the others, ensuring that the control system receives a clean, accurate signal even in the presence of high-voltage machinery nearby.

Innovation Point 2: Robust Communication and Redundancy

The board supports PROFIBUS DP, a widely used industrial fieldbus, allowing for fast and reliable data exchange with the controller. Additionally, it features dual redundant power inputs (220V AC/DC), meaning if one power supply fails, the board can continue operating seamlessly without losing field data.

Innovation Point 3: Durability in Harsh Environments

Built to industrial standards, this board features a rugged design with IP30 protection. It is resistant to dust, water splashes, and vibration, making it suitable for deployment in control cabinets located near heavy machinery or in outdoor environments.
